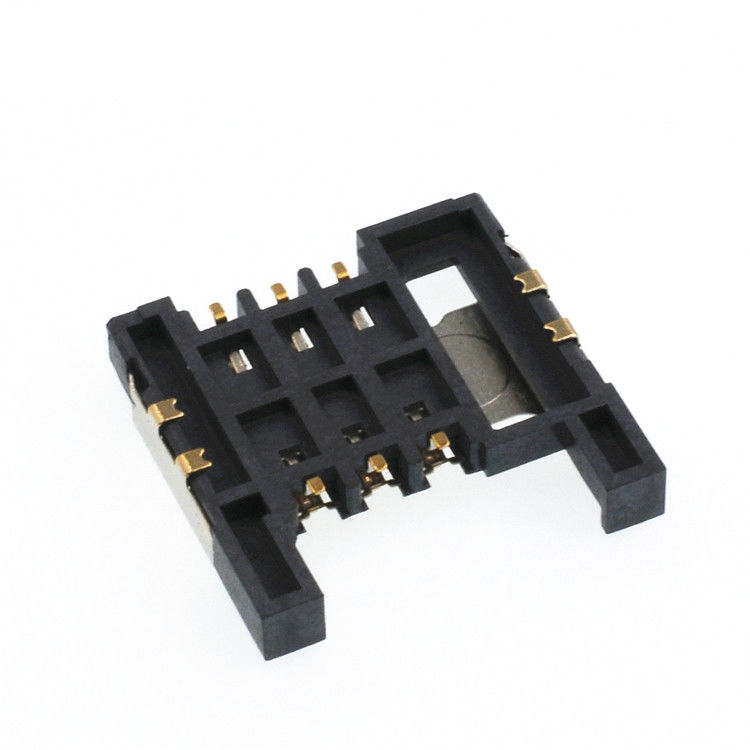

Insertion Type Sim Card Socket Connector 6 Pin Height 2.9mm Card Connector

Insertion Type Sim Card Socket Connector 6 Pin Height 2.9mm Card Connector

2.9mm SIM Card Socket Connector

6Pin SIM Card Socket Connector

2.9mm 6 pin sim connector

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

Sim card connector

Contact Us
Request A Quote
Insertion Type Sim Card Socket Connector 6 Pin Height 2.9mm Card Connector
Insertion Type Sim Card Socket Connector 6 Pin Height 2.9mm Card Connector Insertion Type Sim Card Socket Connector 6 Pin Height 2.9mm Card Connector
Product Details
Gender:
Female And Male
Contact:
Copper Alloy
Contact Area:
Gold PLATED Over Ni.
Operating Temperature:
25℃ TO+90℃
Contact Resistance:
100mΩ Max
Pins:
6P
Highlight:

2.9mm SIM Card Socket Connector

,

6Pin SIM Card Socket Connector

,

2.9mm 6 pin sim connector

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
Negotiable price
Packaging Details
vacuum package,boxes in carton
Delivery Time
5-7 days
Payment Terms
L/C, T/T,Payyal
Supply Ability
3KK pcs
RELATED PRODUCTS
Good price SMT Micro Sim Card Connector online

SMT Micro Sim Card Connector

Get Best Price
Good price 6 Pin SIM Card Socket Connector online

6 Pin SIM Card Socket Connector

Get Best Price
Good price H1.5mm 1.8mm Micro Sim Holder SMT Flip Type 6P Micro Sim Socket online Video

H1.5mm 1.8mm Micro Sim Holder SMT Flip Type 6P Micro Sim Socket

Get Best Price
Good price LCP 8 Pin Micro SIM Card Socket Connector Push Pull H1.8mm 5000 Cycles Durability online Video

LCP 8 Pin Micro SIM Card Socket Connector Push Pull H1.8mm 5000 Cycles Durability

Get Best Price
Contact Us
86 13711847246
tina.liaoyan@foxmail.com
86-769-85150486
Contact Now
Product Description

Sim Card Socket Connector insertion type 6p height 2.9mm card connector





This series are SDMC (Secure Digital Memory Card) Connectors used as the recording medium of portable devices, which can be widely introduced into the market of notebook PCs, mobile phones, DVCs (Digital Video Cameras), DSCs (Digital Still Cameras) and other complex machines for these applications.

Product informations
Name
SIM card connector
Brand name
XTK
Type
SIM series
Product specifications
Operating temperature
-20 ℃ TO +60 ℃
Life
500,000 times
Rated current
1.5A
Rated voltage
30V
Durability
3000 Cycles MIN
Resistance voltage
500V AC MIN.
Contact impedance
30mΩ MAX. Initial; 40 m Ω MAX
Insulation resistance
1000mΩ MIN
Product material
Rubber core
PBT/LCP UL94V-0
Terminal
Brass C2680/Nickel base/Gold plated 1 U
Shell
SPCC/C2680 all-area nickel plated 40 U MIN



Insertion Type Sim Card Socket Connector 6 Pin Height 2.9mm Card Connector 0



1. XTKCONN House has many types card connectors: CF/SD/TF/SIM/XD/MICRO SD card connector.

2. All parts and accessories are made of environmentally friendly materials, in line with the latest RoHS,REACH requirements.

3. The solder joint fitting flatness is controlled at 0.1mm, and the contact tolerance is controlled at 0.02mm.
