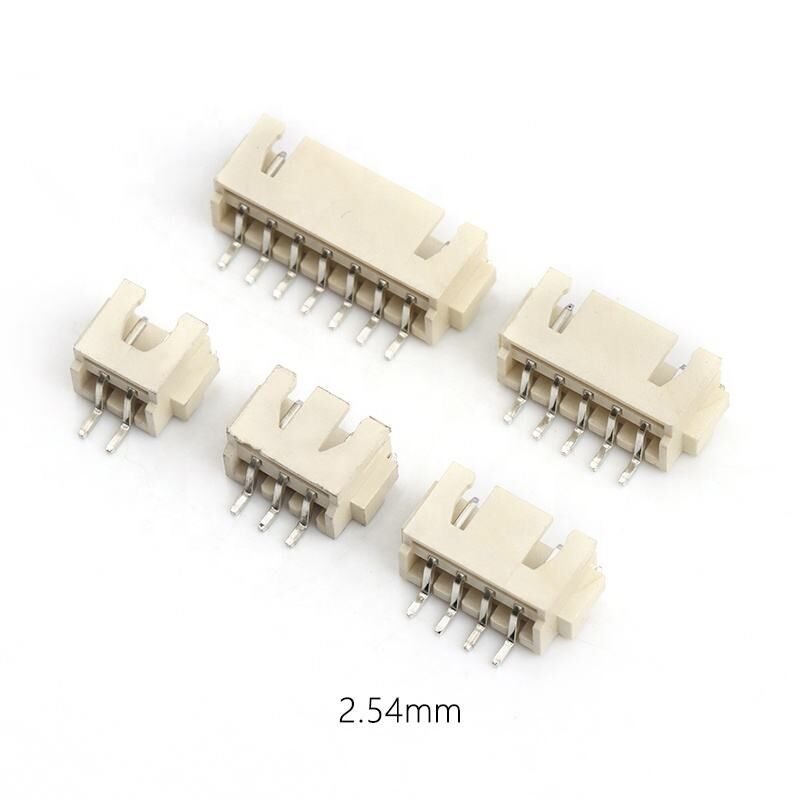

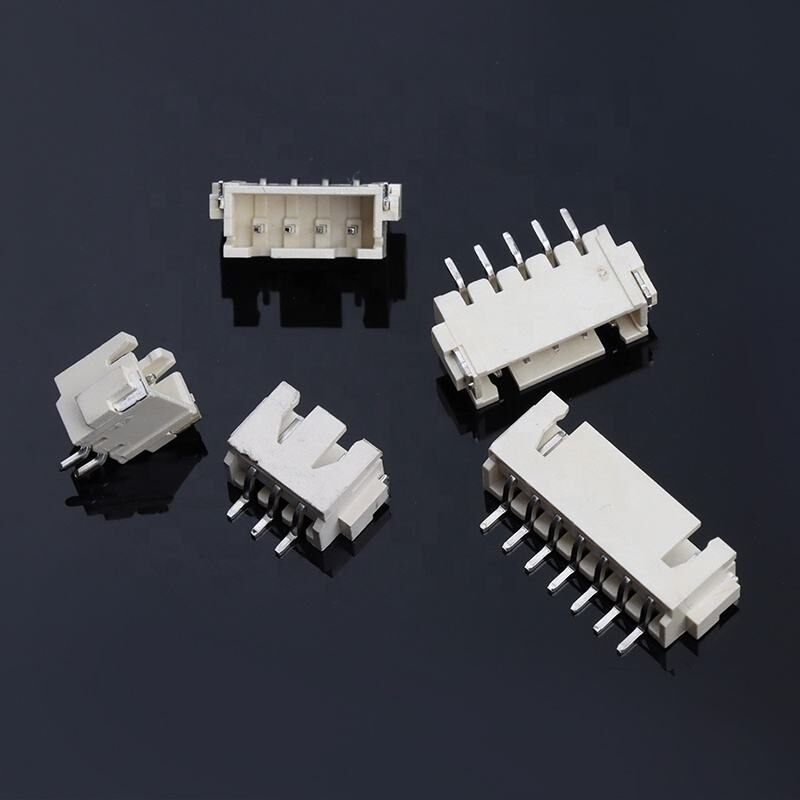

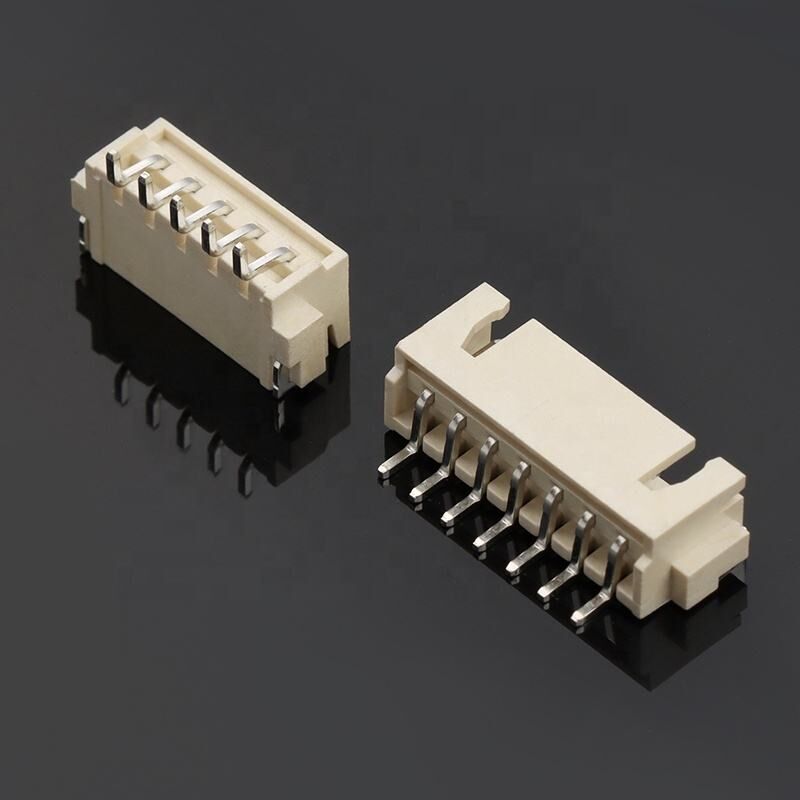

XH2.54mm Wire to Board Connector 2-16P Horizontal Smt 2.54 Wafer Connector

XH2.54mm Wire to Board Connector 2-16P Horizontal Smt 2.54 Wafer Connector

Product Description

The Wafer Connector is a component frequently touched by electrical engineers. Its function is very simple, between the circuit is to block or isolate the circuit communication bridge, so that the current flow, so that the circuit can achieve the intended function. connectors are an important part of electronic devices.

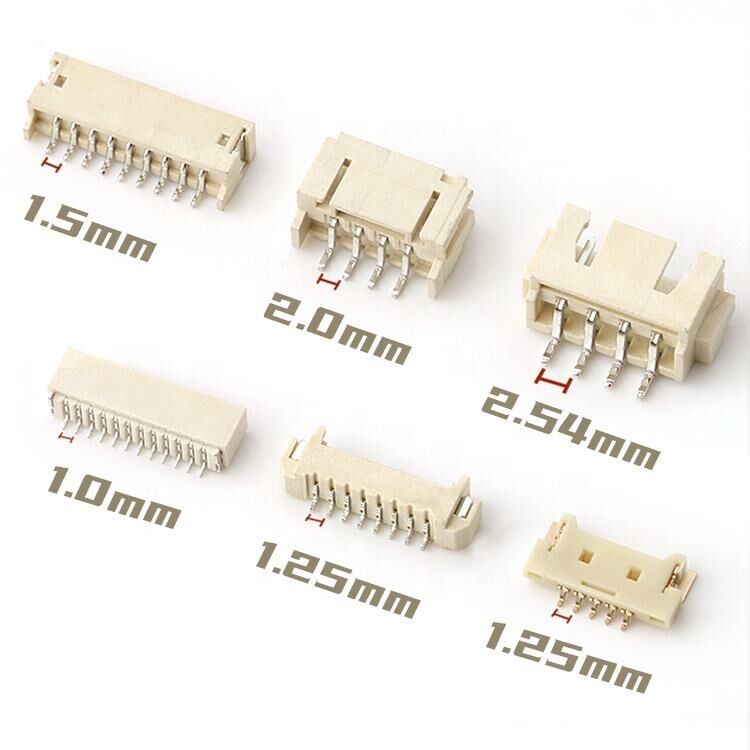

Pitch:SH1.0mm/MH1.25mm/ZH1.5mm/PH&HY 2.0mm/XH 2.54mm pitch
Material:Wafer LCP,PA6T,UL-94V-0/Wafer Nylon66,UL94V-0
              Pin Brass Tin-Plated
              Solder tad Phophoric bronze Tin-plated
Feature:Common/High Temperature Resistance

Description

1. Wafer connector is a classification of rectangular connector. The basic structure is a bar, the contact is arranged in a single row, and the connector has a bar joint surface. The strip connector is a kind of component that electronic engineering technicians often contact.

2. Its function is very simple, in the circuit is blocked or isolated between the circuit, set up a bridge of communication, so that the current flow, so that the circuit to achieve the intended function.

Product feature

1. The insulation resistance is the index to measure the insulation performance between the contacts of electrical connector and between the contacts and the shell, with the order of magnitude ranging from hundreds of megohm to gigaohm.

2. Electrical connector with high contact resistance shall have low and stable contact resistance. The contact resistance of the connector varies from a few milliohms to tens of milliohms.

3. Electrical strength, or voltage and dielectric withstand voltage, is the ability to withstand rated test voltage between connector contacts or between contacts and shell.

4. Other electrical performance.

FAQ

Q: Can I get some samples?

A: Yes,some samples are free.

Q: Which payment can be accepted?

A: 1. The payment terms can be flexiable depend on the quantity and products.

2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.

Q: What’s the delivery time?

A: It usually takes about 3~7 working days to produce the products.

Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.
