Horizontal 1.25mm Pitch Wafer Box Connector 2-16P PCB Terminal Connector SGS

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

Horizontal 1.25mm Pitch Wafer Box Connector 2-16P PCB Terminal Connector SGS

Horizontal 1.25mm Pitch Wafer Box Connector 2-16P PCB Terminal Connector SGS
Horizontal 1.25mm Pitch Wafer Box Connector 2-16P PCB Terminal Connector SGS
Horizontal 1.25mm Pitch Wafer Box Connector 2-16P PCB Terminal Connector SGS Horizontal 1.25mm Pitch Wafer Box Connector 2-16P PCB Terminal Connector SGS Horizontal 1.25mm Pitch Wafer Box Connector 2-16P PCB Terminal Connector SGS Horizontal 1.25mm Pitch Wafer Box Connector 2-16P PCB Terminal Connector SGS Horizontal 1.25mm Pitch Wafer Box Connector 2-16P PCB Terminal Connector SGS

Large Image :  Horizontal 1.25mm Pitch Wafer Box Connector 2-16P PCB Terminal Connector SGS

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Wafer Box Connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

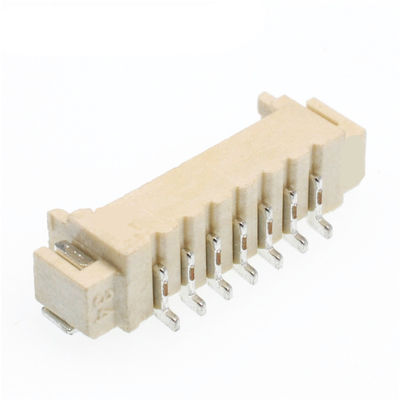

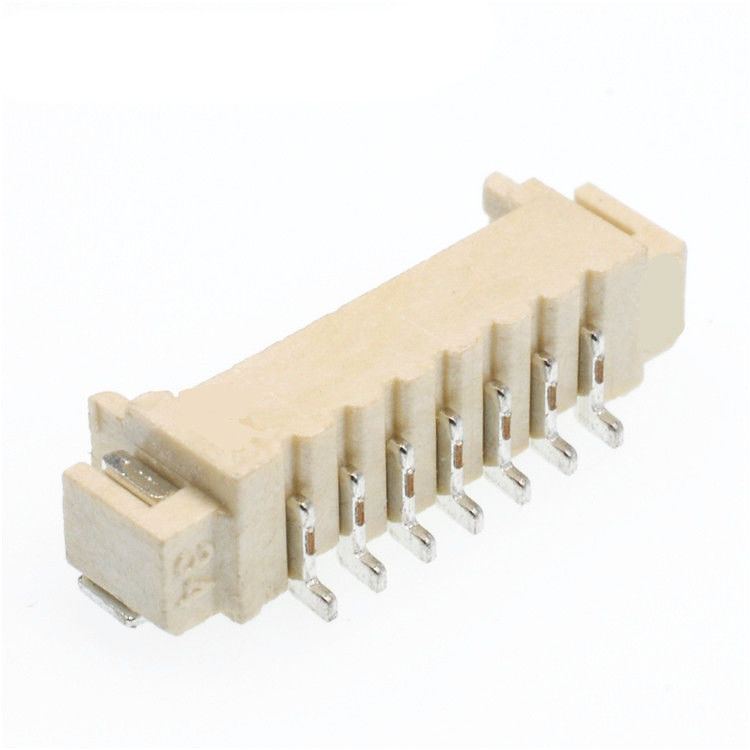

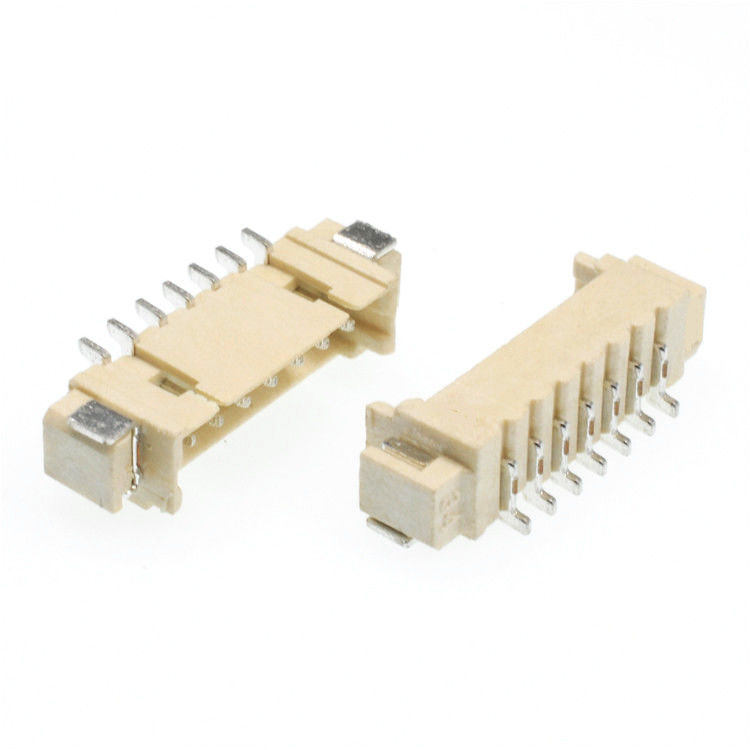

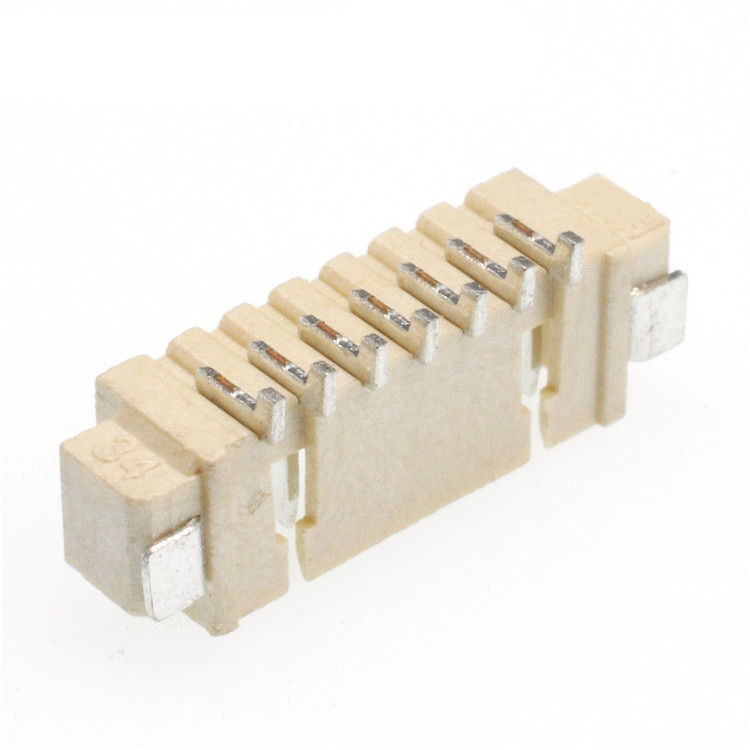

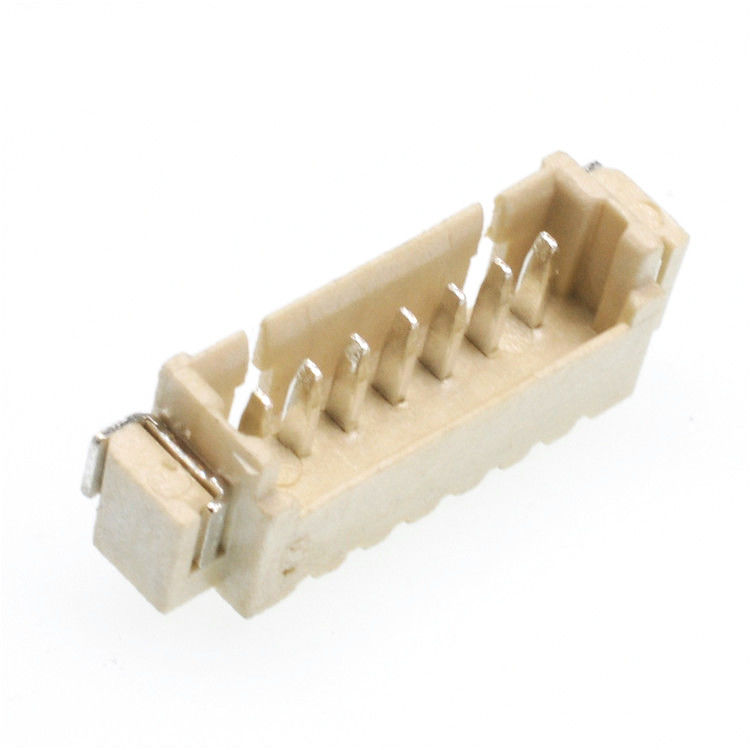

Horizontal 1.25mm Pitch Wafer Box Connector 2-16P PCB Terminal Connector SGS

Description
Rated Current: 1.0A AC Rated Voltage: 125V AC/DC
Contact Resistance: 20m Ohms MAX Insulation Resistance: 100m Ohms Min
Operation Temperature: -25℃ To +85℃ Withstanding Voltage: 500V/1min AC
High Light:

SGS Wafer Box Connector

,

16p Wafer Box Connector

,

1.25mm PCB Terminal Connector

PCB terminal connector 1.25mm Pitch Wafer Box Connector 2-16P Horizontal Type





Xietaikang`s leading wire-to-board 1.25mm-pitch connector system provides design flexibility with multiple header options, making it ideal for a variety of applications across many industries.

Wafer connector is offered in wire-to-board options. The system saves about 45% of PCB space compared to typical 2.00mm wire-to-board systems. It is a single row system, available in 2 to 15 circuits, with both surface mount and through-hole headers.

A full range of automatic, semi-automatic and manual tooling is available to support crimp harness assembly using discrete wires.



Description



Mounting Type SMT
Pitch 1.25mm
No. Of Positions 2-15p
Rated current 1.0A AC
Rated voltage 125V AC/DC
Contact Resistance 20m ohms MAX
Insulation Resistance 100m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -25℃ to +85℃
Withstanding Voltage 500V/1min AC
Housing LCP UL94V-0
Contact Brass Tin-plated
Gender Female
Applicable Wire #32 ~ # 28
Durability cycles 5000 Cycles Min
Lead Time

7-10 working Days

Horizontal 1.25mm Pitch Wafer Box Connector 2-16P PCB Terminal Connector SGS 0



Typical Application



For data transfer and charging:Mobile phone, mobile power, charger Camera,Digital Audio,Tablet PCs / Notebook PCs,DSCs / DVCs, Audio Players, FPD / LCD TVs, Printers / Copiers, Industrial Equipment, Medical Equipment, security etc.
