1.5mm Pitch 2-16P Wafer Box 4 Pin Wire To Board Connector Horizontal

1.5mm Pitch 2-16P Wafer Box 4 Pin Wire To Board Connector Horizontal

1.5mm wire to board connector

16P wire to board connector

Wafer Box 1.5 mm pitch connector

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

Wafer housing terminal

Contact Us
Request A Quote

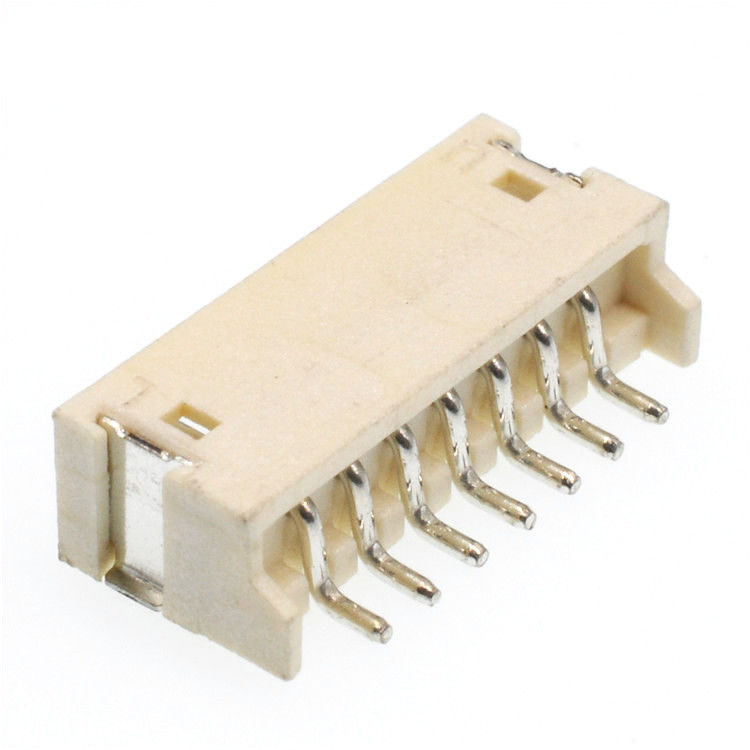

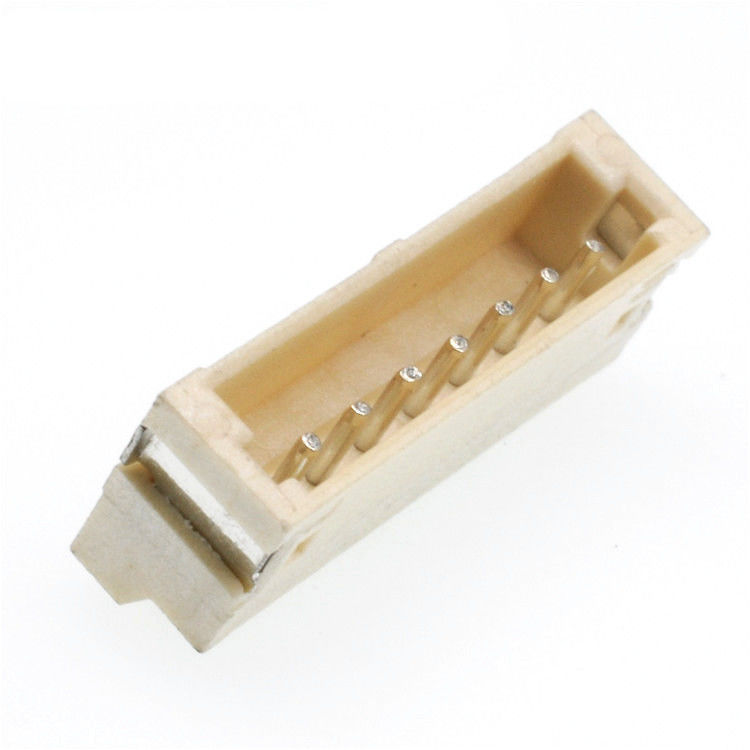

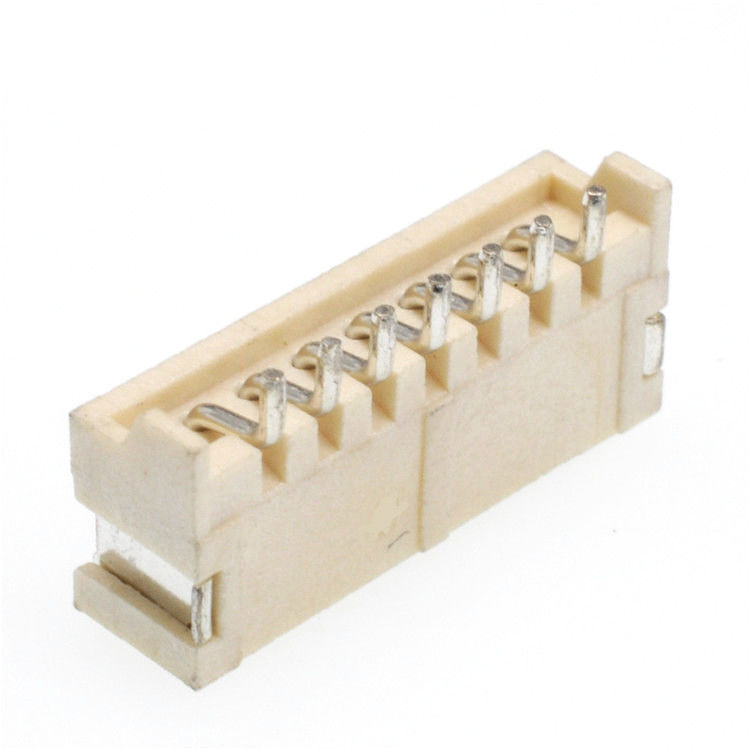

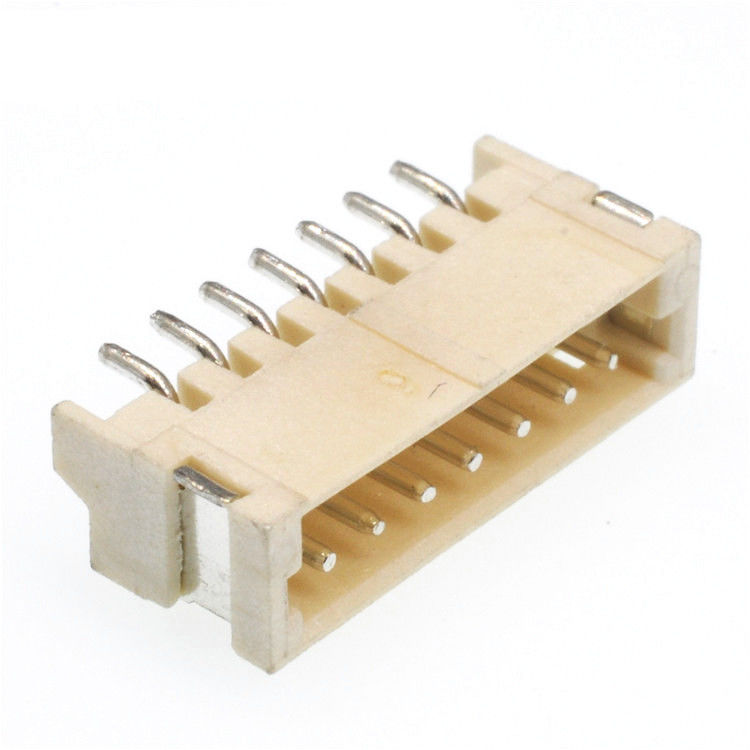

1.5mm Pitch 2-16P Wafer Box 4 Pin Wire To Board Connector Horizontal
1.5mm Pitch 2-16P Wafer Box 4 Pin Wire To Board Connector Horizontal 1.5mm Pitch 2-16P Wafer Box 4 Pin Wire To Board Connector Horizontal 1.5mm Pitch 2-16P Wafer Box 4 Pin Wire To Board Connector Horizontal 1.5mm Pitch 2-16P Wafer Box 4 Pin Wire To Board Connector Horizontal
Product Details
Application:
Automotive
Rated Voltage:
125V AC,DC
Insulation Resistance:
100 MΩ Min
Gender:
Female/ Male
Pins:
2-16pin
Withstanding Voltage:
300V /AC/1Min
Highlight:

1.5mm wire to board connector

,

16P wire to board connector

,

Wafer Box 1.5 mm pitch connector

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
Negotiable price
Packaging Details
vacuum package,boxes in carton
Delivery Time
5-7 days
Payment Terms
L/C, T/T,Payyal
Supply Ability
4KK pcs
RELATED PRODUCTS
Good price XH2.54mm Wire to Board Connector 2-16P Horizontal Smt 2.54 Wafer Connector online

XH2.54mm Wire to Board Connector 2-16P Horizontal Smt 2.54 Wafer Connector

Get Best Price
Good price 1.25mm Pitch 2P-16P Vertical SMT PCB Wire to Board Smt MH online

1.25mm Pitch 2P-16P Vertical SMT PCB Wire to Board Smt MH

Get Best Price
Good price 2.54 Wire to Board Wafer Connector Lcp Vertical 90 Degree Jst 2.5mm Smt Pcb Connector online

2.54 Wire to Board Wafer Connector Lcp Vertical 90 Degree Jst 2.5mm Smt Pcb Connector

Get Best Price
Good price Wire to Board Connector Wafer Molex 1.5 2.0mm Pitch ZH PH HY LCP 2.5mm Wafer-connector online

Wire to Board Connector Wafer Molex 1.5 2.0mm Pitch ZH PH HY LCP 2.5mm Wafer-connector

Get Best Price
Contact Us
86 13711847246
tina.liaoyan@foxmail.com
86-769-85150486
Contact Now
Product Description

1.5mm Pitch 2-16P Wafer Box Connector Horizontal Type


Wafer Connector System is very compact and secure, featuring 1.50mm-pitch and friction lock. Saves 30% space compared with 2.00mm wire-to-board connector system. Customers choose different connectors from different vendors; this makes their procurement process complex and often causes compatibility issues.wafer Connector System is available in 2- to15- circuit single-row connectors in vertical and right angle configurations.

Specifications


Pitch 1.5mm
Mounting Type SMT
No. Of Positions 2-15p
Rated current 1.0A AC
Rated voltage 125V AC/DC
Contact Resistance 20m ohms MAX
Insulation Resistance 100m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -25℃ to +85℃
Withstanding Voltage 300V/1min AC
Housing LCP UL94V-0
Contact Brass Tin-plated
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days
Wire AWG #24-30

1.5mm Pitch 2-16P Wafer Box 4 Pin Wire To Board Connector Horizontal 0

Product Application



1, electrical equipment .

2, Communications Industry.

3, Security Equipment.

4, Automotive Filed.

5, Network Communications.

6, Measuring Instruments.



Our Service



1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save
 time.
4. Free Samples:3-5 PCS of each part number
5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
6. Customer complaint:24-48 hours reply 8D report
7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,,or repair
8. kits if customers are not satisfied)
