Product Details:
|
| Pitch: | 2.54mm Pitch | Contact Plating: | Gold/Tin Over Ni |
|---|---|---|---|
| Type: | Male | Current Rating: | 3A |
| Color: | Black | Row: | Single / Double Row |
| High Light: | Ejector Shrouded Header Connector,2x30 Shrouded Header Connector,2.54mm straight pin header |
||

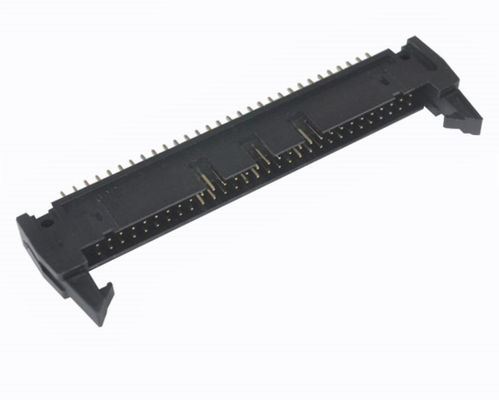

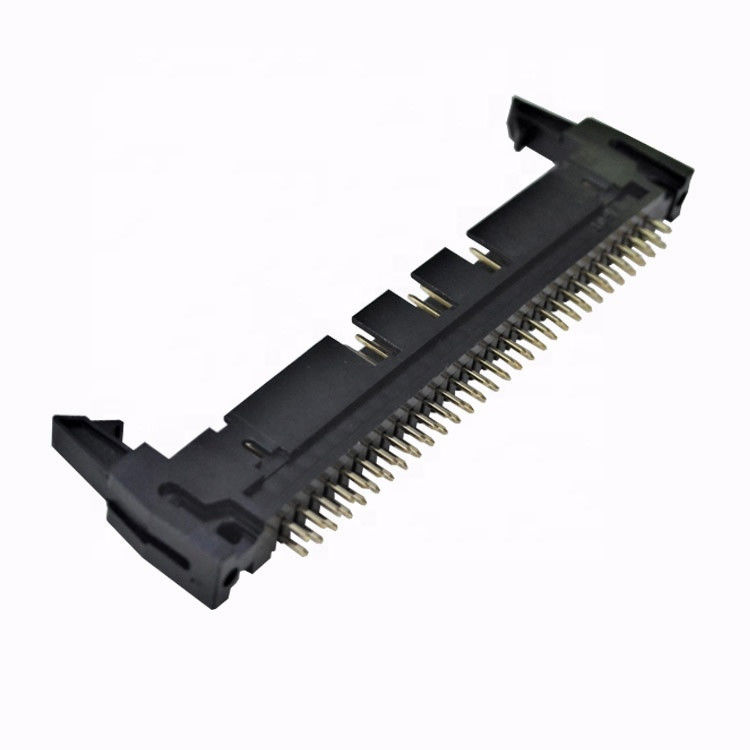

2.54mm Shrouded Ejector Header Connector 2*30P Straight Type With Latch
Description
| Pitch | 2.54mm | |||||
| Description | 2.54mm IDC-Type Ejector Header connector | |||||
| Standard Dimension | PA | PB | W | Length | ||
| Custom Dimension | ||||||
| Pin ways | 06~64P | |||||
| Alternative Plating | G/F | Tin | Sel. Gold/Tin | |||
| GO | SN | S0 | ||||
| Packing way | PE Bag /Tube/ Tray/ Plastic box/ Tape&Reel Packing. | |||||
| MOQ | 500PCS | |||||
| Delivery time | 1-2weeks after confirm order | |||||
| Engineering Specifications | Rated Current:3.0AMP | |||||
| Contact Resistance: 20mΩ Max | ||||||
| Withstand Voltage:1000V AC/DC | ||||||
| Insulation Resistance:1000MΩ Min | ||||||
| Operation Temperature: -40°c to +105°c | ||||||
| Contact Material : Phosphor bronze | ||||||
| Contact Plating: Au Over Ni | ||||||
| Insulator Material :Polyester (UL94V-0) | ||||||
| Standard: PBT | ||||||
| Max.Processing Temp180°c for 30-60 Seconds / (230°c for 10 Seconds) | ||||||
What is a PCB Connector?
Printed Circuit Board connectors are connection systems mounted on PCBs. Typically PCB Connectors are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. They provide an easy method of Design for Manufacture, as the PCBs are not hard-wired to each other and can be assembled later in a production process.
PCB Connector orientations
The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of
PCB connection orientations, all based on 90 degree increments:
Parallel or mezzanine – both connectors are vertical orientation;
90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;
180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.
