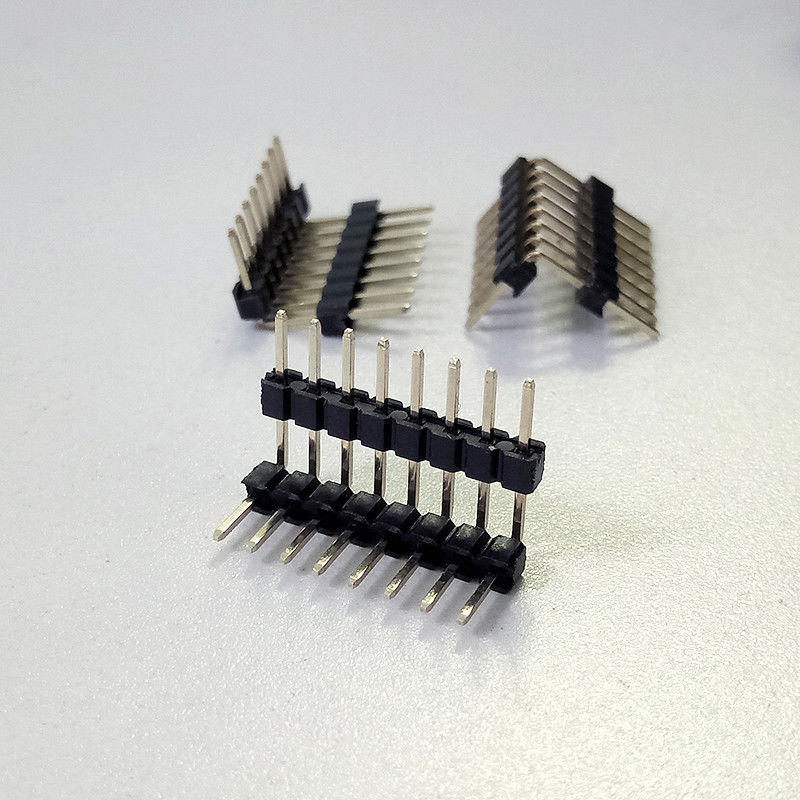

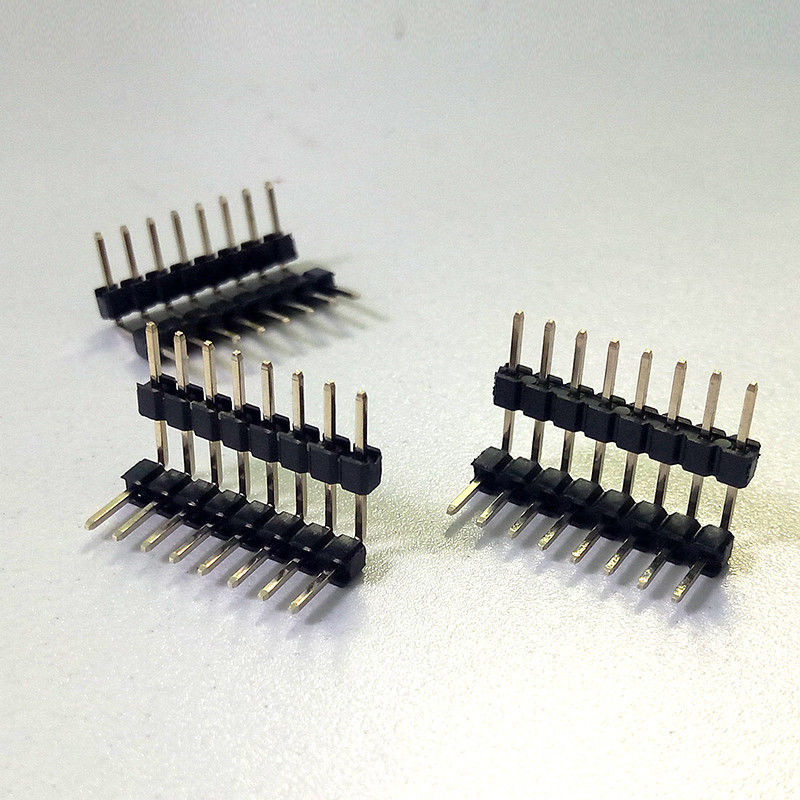

Right Angle 2.54 Mm Pitch Pin Header Single Row PCB Connector

Right Angle 2.54mm Pitch Pin Header Connector Single Row PCB Connector

Pin Headers provide design flexibility and production efficiency while reducing the need for equipment assets. With horizontal, right-angle, and vertical orientations, and single and dual Rows with a range of 0.8mm to 3.96mm pitch.

Specifications

Description

1. Product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2. Pin header is widely used in displays, digital cameras, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disks, card readers, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances, etc.
3. Products are mainly used in: instrumentation, communication, security, medical equipment, computer motherboards, program-controlled switches, digital camera, LED photoelectricity, etc.
With the strong demand for customization, our strong R&D center, mold manufacturer, and processing center can quickly grasp customer needs, providing OEM/ODM products with the most reliable products and precise connectors for different customers.

PCB Connector orientations

The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degree increments:

• Parallel or mezzanine – both connectors are vertical orientation;
• 90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;
• 180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.

Other names for PCB Connectors

PCB Connectors can be known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. Male PCB Connectors are often referred to as Pin Headers, as they are simply rows of pins. Female PCB Connectors can be called Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.

Primary Competitive Advantages

Small orders accepted
Factory direct export
With 20 years of professional production experience as a manufacturer of precision connectors
Free samples is available
Prompt delivery
Green product
Strong researching and developing team
Experienced staff
ISO9001,ROHS
