|Housing:||Polyester(UL94V-0)||Durability Cycles :||5000 Cycles Min|
UL94V-0 Pin Header Connectors,
Double Row Pin Header Connectors,

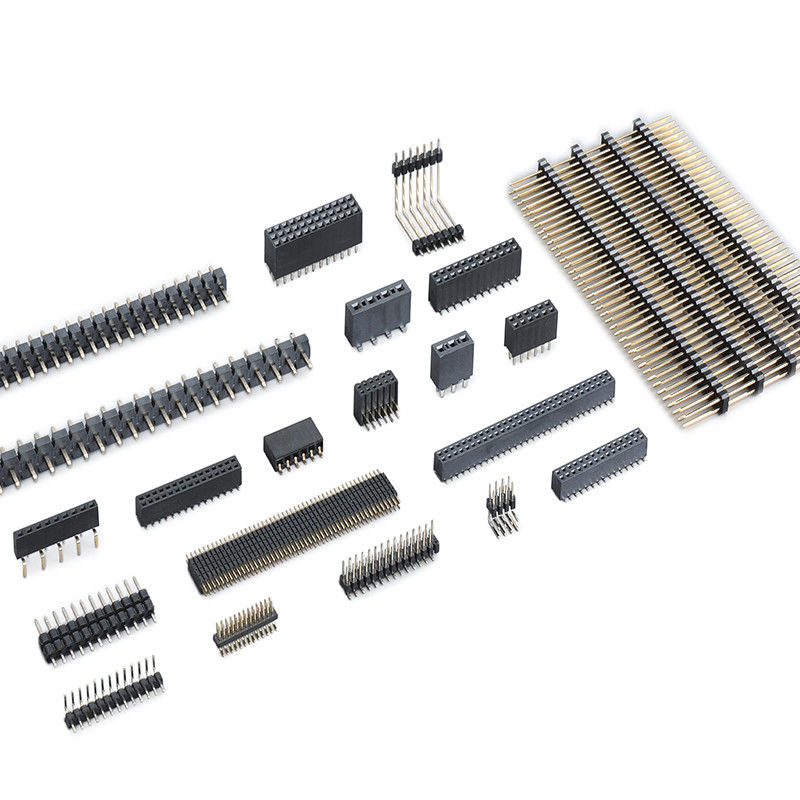

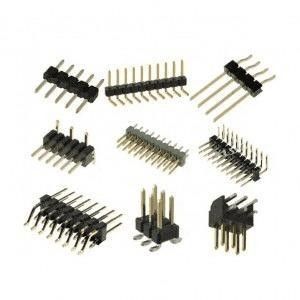

UL94V-0 pin header 1.27 mm pitch
We supply 0.8mm-2.54mm pitch dip Pin header PCB connector single/double row,we devoted ourselves to precision connector around 18 years,covering most of Europe and the Americas` market.We are expecting become your long-term partner in China.
|Mounting Type||SMT /DIP|
|No. Of Positions||2-50pin|
|Rated current||1.0A AC|
|Rated voltage||50V AC/DC|
|Contact Resistance||20m ohms MAX|
|Insulation Resistance||1000m ohms min|
|Insertion Force||20gf/pin Min|
|Operation Temperature||-40to +105℃|
|Withstanding Voltage||500V/1min AC|
Its function is to act as a bridge between the blocked or isolated circuit in the circuit, and take on the task of current or signal transmission. usually used in conjunction with the row mother to form a board-to-board connection; or with the end of the electronic wire harness to form a board-to-wire connection; can also be used independently for board-to-board connection .One of the main requirements of the electrical performance of the pin header is to establish and maintain a stable impedance.
2,Product Parameter(Specification) of the 1.27mm pitch dip Pin header PCB connector single/double row.
