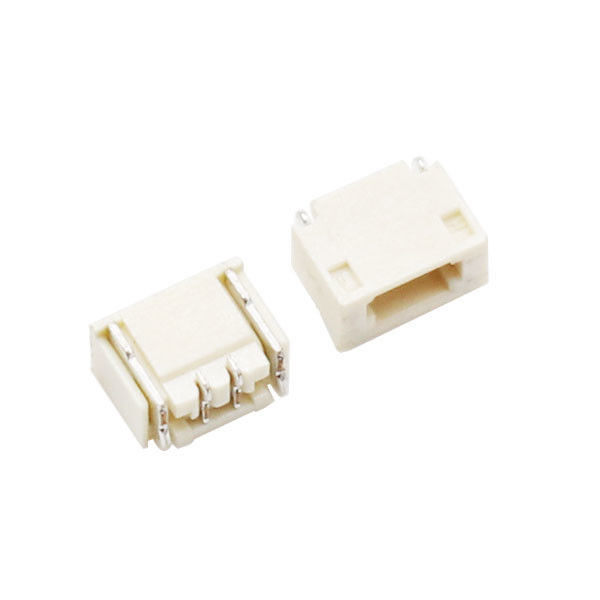

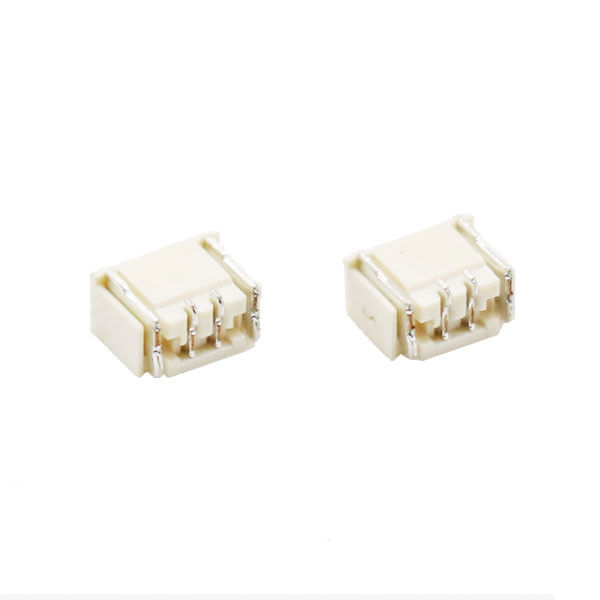

Name: 0.8mm Pitch Wafer Box Connector Right Angle Female Header SMT Horizontal ROHS
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.
SKU: Wafer housing terminal
Price: 4.01 USD
Availability: InStock

Home > Products > Wafer Box Connector >

0.8mm Pitch Wafer Box Connector Right Angle Female Header SMT Horizontal ROHS

0.8mm Wafer Box Connector

ROHS Wafer Box Connector

ROHS 0.8mm Right Angle Female Header

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

Wafer housing terminal

Request A Quote

Product Details

Pitch:

0.8mm

Rated Current:

1.0A AC

Rated Voltage:

30V AC/DC

Contact Resistance:

30m Ohms MAX

Insulation Resistance:

100m Ohms Min

Applicable Wire :

AWG#26～#32

Highlight:

0.8mm Wafer Box Connector

ROHS Wafer Box Connector

ROHS 0.8mm Right Angle Female Header

Payment & Shipping Terms

Minimum Order Quantity

2000pcs

Price

Negotiable price

Packaging Details

inner package:in reel; Outer Package: reel in Carton

Delivery Time

5-7 days

Payment Terms

L/C, T/T,Payyal

Supply Ability

4KK pcs

XH2.54mm Wire to Board Connector 2-16P Horizontal Smt 2.54 Wafer Connector

Get Best Price

1.25mm Pitch 2P-16P Vertical SMT PCB Wire to Board Smt MH

Get Best Price

2.54 Wire to Board Wafer Connector Lcp Vertical 90 Degree Jst 2.5mm Smt Pcb Connector

Get Best Price

Wire to Board Connector Wafer Molex 1.5 2.0mm Pitch ZH PH HY LCP 2.5mm Wafer-connector

Get Best Price

86 13711847246

tina.liaoyan@foxmail.com

86-769-85150486

Contact Now

Product Description

0.8mm Pitch Wafer Box Connector Right Angle female header SMT type- horizontal

Product Description

Pitch	0.8mm
Mounting Type	SMT
No. Of Positions	2p
Rated current	1.0A AC
Rated voltage	30V AC/DC
Contact Resistance	30m ohms MAX
Insulation Resistance	100m ohms min
Insertion Force	20gf/pin Min
Operation Temperature	-25℃ to +85℃
Withstanding Voltage	200V/1min AC
Housing	LCP UL94V-0
Contact	Brass Tin-plated
Gender	Female
Price Term	FOB
Durability cycles	5000 Cycles Min
Lead Time	7-10 working Days
Applicable Wire	AWG#26～#32

Product Feature

0.8mm-pitch, wire-to-board PCB Connectors offer a versatile system that offers a variety plating and design options, ideal for nearly all applications, ranges in circuit sizes from 2 to 50 and provides wide header versions, ideal for space constraint applications.

The wide range of design options including gold and tin plating, allows additional design flexibility and the simplicity to stay within the product family.

Design &Technical strength

We have many more than 20years experience in connector industry engineer can support your new
project.

Design a new tooling time : 30-45 workdays

Main Export Markets

Asia,Africa,South and North America and Europe.
