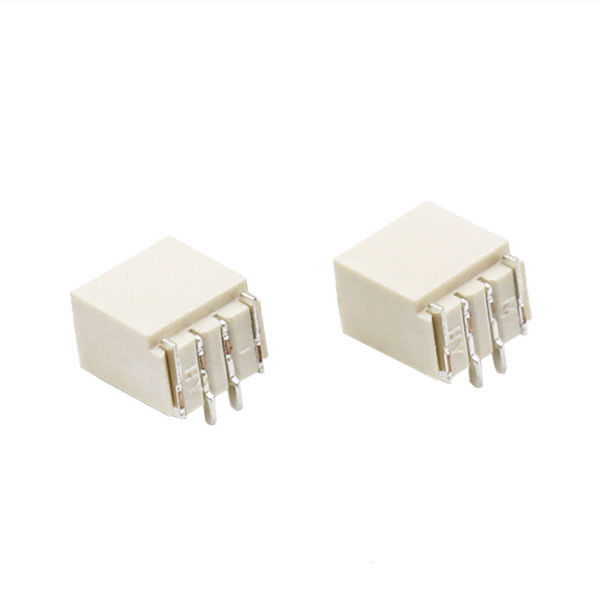

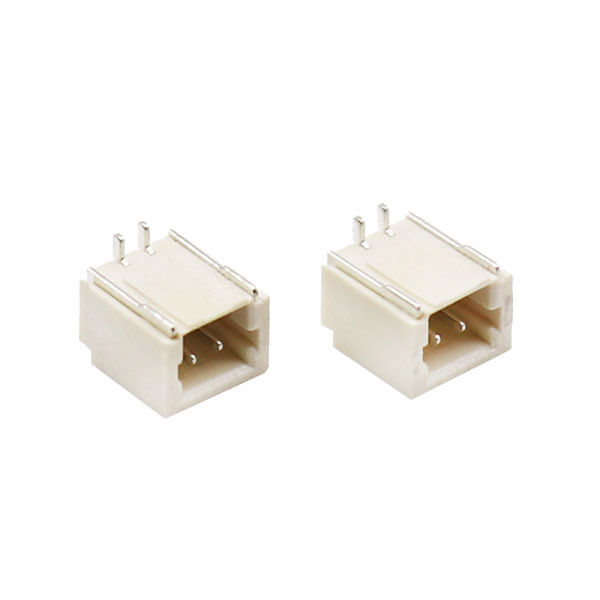

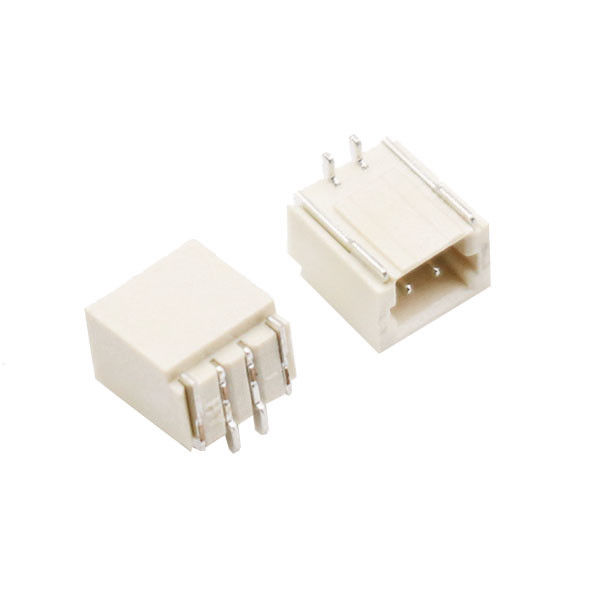

Name: 1.0mm Pitch Wafer Box Connector Female SMT Type Straight
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.
SKU: Wafer housing terminal
Price: 4.01 USD
Availability: InStock

Home > Products > Wafer Box Connector >

1.0mm Pitch Wafer Box Connector Female SMT Type Straight

1.0mm Wafer Box Connector

Female Wafer Box Connector

1.0mm smt wafer connector

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

Wafer housing terminal

Request A Quote

Product Details

Pitch:

1.0mm

Mounting Type:

SMT

No. Of Positions:

2-7p

Applicable Wire :

AWG#28～#32

Gender:

Female

Insertion Force:

20gf/pin Min

Highlight:

1.0mm Wafer Box Connector

Female Wafer Box Connector

1.0mm smt wafer connector

Payment & Shipping Terms

Minimum Order Quantity

2000pcs

Price

Negotiable price

Packaging Details

inner package:in reel; Outer Package: reel in Carton

Delivery Time

5-7 days

Payment Terms

L/C, T/T,Payyal

Supply Ability

4KK pcs

XH2.54mm Wire to Board Connector 2-16P Horizontal Smt 2.54 Wafer Connector

Get Best Price

1.25mm Pitch 2P-16P Vertical SMT PCB Wire to Board Smt MH

Get Best Price

2.54 Wire to Board Wafer Connector Lcp Vertical 90 Degree Jst 2.5mm Smt Pcb Connector

Get Best Price

Wire to Board Connector Wafer Molex 1.5 2.0mm Pitch ZH PH HY LCP 2.5mm Wafer-connector

Get Best Price

86 13711847246

tina.liaoyan@foxmail.com

86-769-85150486

Contact Now

Product Description

1.0mm Pitch Wafer Housing Connector Female SMT Type Straight

Product Description

Pitch	1.0mm
Mounting Type	SMT
No. Of Positions	2-7p
Rated current	1.0A AC
Rated voltage	50V AC/DC
Contact Resistance	20m ohms MAX
Insulation Resistance	100m ohms min
Insertion Force	20gf/pin Min
Operation Temperature	-25℃ to +85℃
Withstanding Voltage	500V/1min AC
Housing	LCP UL94V-0
Contact	Brass Tin-plated
Gender	Female
Price Term	FOB
Durability cycles	5000 Cycles Min
Lead Time	7-10 working Days
Applicable Wire	AWG#28～#32

Feature

1.00mm-pitch, wire-to-board PCB Connectors offer a versatile system that offers a variety plating and design options, ideal for nearly all applications, ranges in circuit sizes from 2 to 50 and provides wide header versions, ideal for space constraint applications.

The wide range of design options including gold and tin plating, allows additional design flexibility and the simplicity to stay within the product family.

Application

It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. Provide the most reliable connection for the plate to plate and the line to plate.

Our Service

New Project: Strong technical and ideal support your new design

Existing projects: Try to help customer to save the cost to offer the good quality product

and save time.

Free Samples: 3-5 PCS of each part number.

Shipping Fee : We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

Customer complaint: 24-48 hours reply 8D report.

Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,

or repair kits , if customers are not satisfied)
