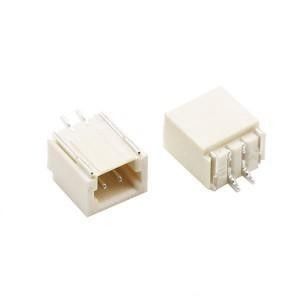

Horizontal 90 Degree 1 Mm Pitch Wire To Board Connector Female SMT

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

Horizontal 90 Degree 1 Mm Pitch Wire To Board Connector Female SMT

Horizontal 90 Degree 1 Mm Pitch Wire To Board Connector Female SMT
Horizontal 90 Degree 1 Mm Pitch Wire To Board Connector Female SMT
Horizontal 90 Degree 1 Mm Pitch Wire To Board Connector Female SMT Horizontal 90 Degree 1 Mm Pitch Wire To Board Connector Female SMT Horizontal 90 Degree 1 Mm Pitch Wire To Board Connector Female SMT

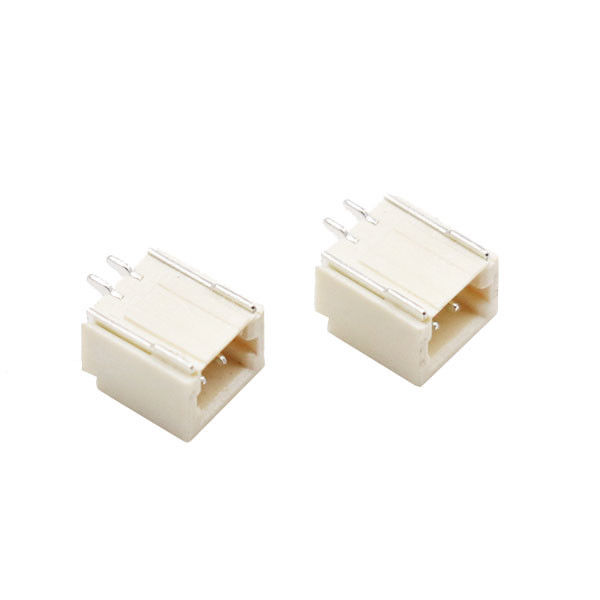

Large Image :  Horizontal 90 Degree 1 Mm Pitch Wire To Board Connector Female SMT

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Wafer housing terminal
Payment & Shipping Terms:
Minimum Order Quantity: 2000pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

Horizontal 90 Degree 1 Mm Pitch Wire To Board Connector Female SMT

Description
Pitch: 1.0mm Mounting  Type: SMT
Rated Current: 1.0A AC Rated Voltage: 30V AC/DC
Contact Resistance: 20m Ohms MAX Operation Temperature: -25℃ To +85℃
High Light:

SMT 1 mm pitch wire to board connector

,

1 mm pitch wire to board connector

,

90 Degree smt wire to board connector

Horizontal 90 Degree 1.0mm pitch Wafer Box Connector Female SMT Wire To Board





Product Description



Pitch 1.0mm
Mounting Type SMT
No. Of Positions 2-7p
Rated current 1.0A AC
Rated voltage 30V AC/DC
Contact Resistance 20m ohms MAX
Insulation Resistance 100m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -25℃ to +85℃
Withstanding Voltage 200V/1min AC
Housing LCP UL94V-0
Contact Brass Tin-plated
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days
Applicable Wire AWG#28~#32



Horizontal 90 Degree 1 Mm Pitch Wire To Board Connector Female SMT 0



Main export markets



Asia Australasia

Eastern Europe Mid East/Africa

North America Western Europe

Central/South America



Packaging & Shipment



FOB Port:Shenzhen

Lead time:7 working days

Packaging: reel in carton

Payment Method:advance TT,T/T,L/C,Paypal etc;

Delivery details:7-10working days after having confirmed the order.





Product Feature



1. The insulation resistance is the index to measure the insulation performance between the contacts of electrical connector         and between the contacts and the shell, with the order of magnitude ranging from hundreds of megohm to gigaohm.

2. Electrical connector with high contact resistance shall have low and stable contact resistance. The contact resistance of the       connector varies from a few milliohms to tens of milliohms.

3. Electrical strength, or voltage and dielectric withstand voltage, is the ability to withstand rated test voltage between          contacts or between contacts and shell.

4. Other electrical performance.
