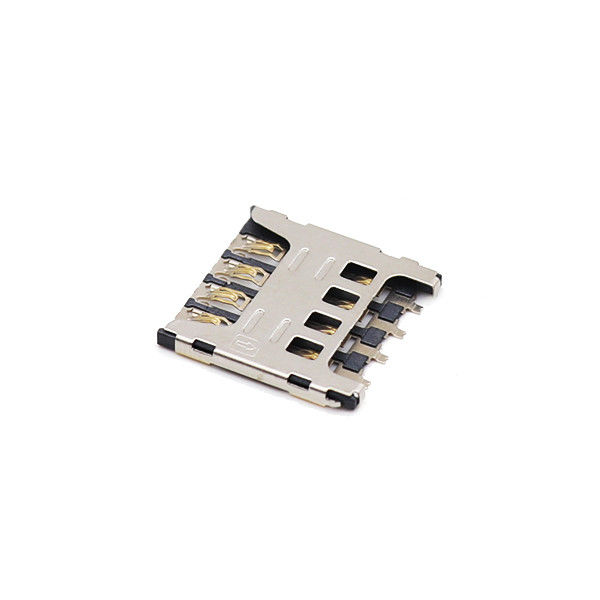

LCP 8 Pin Micro SIM Card Socket Connector Push Pull H1.8mm 5000 Cycles Durability

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

LCP 8 Pin Micro SIM Card Socket Connector Push Pull H1.8mm 5000 Cycles Durability

LCP 8 Pin Micro SIM Card Socket Connector Push Pull H1.8mm 5000 Cycles Durability
LCP 8 Pin Micro SIM Card Socket Connector Push Pull H1.8mm 5000 Cycles Durability
LCP 8 Pin Micro SIM Card Socket Connector Push Pull H1.8mm 5000 Cycles Durability LCP 8 Pin Micro SIM Card Socket Connector Push Pull H1.8mm 5000 Cycles Durability LCP 8 Pin Micro SIM Card Socket Connector Push Pull H1.8mm 5000 Cycles Durability

Large Image :  LCP 8 Pin Micro SIM Card Socket Connector Push Pull H1.8mm 5000 Cycles Durability

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Wafer housing terminal
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 3KK pcs

LCP 8 Pin Micro SIM Card Socket Connector Push Pull H1.8mm 5000 Cycles Durability

Description
No. Of Positions: 8p Rated Current: 1.0A AC
Rated Voltage: 50V AC/DC Durability Cycles : 5000 Cycles Min
Contact: Copper Alloy Withstanding Voltage: 500V/1min AC
High Light:

LCP SIM Card Socket Connector

,

1.8mm SIM Card Socket Connector

,

1.8mm micro sim card socket

100m ohms MAX LCP 8 Pin Micro Sim Card Connector Push-Pull H1.8 5000 Cycles Durability





Product Description



Mounting Type SMT
No. Of Positions 8p
Rated current 1.0A AC
Rated voltage 50V AC/DC
Contact Resistance
Insulation Resistance 1000m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -20℃ to +85℃
Withstanding Voltage 500V/1min AC
Housing LCP UL94V-0 black
Contact Copper alloy
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days
Ejector TYpe Push-push;push-pull,Hinge;Tray type

LCP 8 Pin Micro SIM Card Socket Connector Push Pull H1.8mm 5000 Cycles Durability 0



Drawing

LCP 8 Pin Micro SIM Card Socket Connector Push Pull H1.8mm 5000 Cycles Durability 1





Feature



Optimized for reliability and high-speed data transfer, compact, easy-to-use SIM Memory Card Sockets, in different configurations, meet the quick and compact connection requirements of various industries.
