Product Details:
|
| Housing: | High Temperature Thermoplastic | Terminal: | Copper Alloy |
|---|---|---|---|
| Rated Current: | 0.5A | Rated Voltage: | 30V |
| Durability: | 5000 Cycles Min | Operating Temperature: | -40℃ To +85℃ |
| High Light: | Thermoplastic Memory Card Connectors,30V ISO9001 Memory Card Connectors,Thermoplastic ISO9001 memory card socket |
||

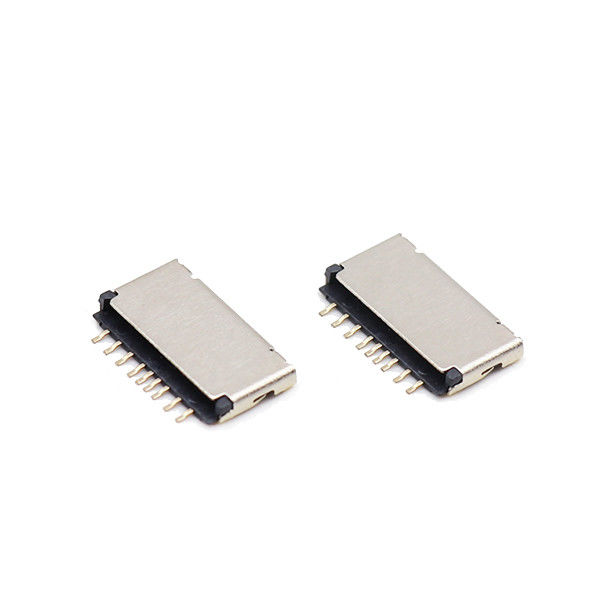

This series are SDMC (Secure Digital Memory Card) Connectors used as the recording medium of portable devices, which can be widely introduced into the market of notebook PCs, mobile phones, DVCs (Digital Video Cameras), DSCs (Digital Still Cameras) and other complex machines for these applications.
Providing compact memory card sockets with a height of no more than 1.28mm, saving PCB space. As products become smaller, a minor external shock could cause short-circuit or misalignment. The hinge feature keeps the card stable, protecting it from external shocks and/vibrations. Customers require easy card insertion and extraction for portable devices. The push-push ejection system utilizes spring elasticity, and the push-pull system utilizes simple manual ejection, simplifying card insertion and ejection for portable devices.
| Mounting Type | SMT |
| No. Of Positions | 9p |
| Rated current | 0.5A |
| Rated voltage | 30V |
| Contact Resistance | 50m ohms MAX |
| Insulation Resistance | 100mohms min 100V DC |
| Operation Temperature | -40℃ to +85℃ |
| Storage Temperature | -10℃ to +85℃ |
| Withstanding Voltage | 100V AC |
| Housing | LCP,UL94V-0 black |
| Terminal | copper alloy |
| Gender | Female |
| Price Term | FOB |
| Durability cycles | 5000 Cycles MIn |
| Lead Time | 7-10 working Days |
| Ejector Type | Push-push;push-pull,Hinge,Tray type |
Drawing
What is Sim card connector?
The SIM (User Identity Module) is a small smart card designed to store user identity, security, authentication and personal information for use in mobile network terminals. In order to make power and electrical signals "uninterrupted", "unchangeable" and "undecayed", contact reliability technology is particularly important. MSTCONN offers a wide range of types and sizes, including Nano (4FF SIM) cards, Micro SIM(3FF SIM) cards, Micro SIM(2FF SIM) cards and combination SIM cards, with outstanding technical capabilities and excellent reliability and durability. The MSTCONN SIM card holder also has an operating temperature range of -40 to +85 ° C.
Payment Terms & Delivery
T/T, Paypal,Paypal
UPS, DHL, FEDEX,TNT,By sea,By Air
Select the most economic and efficient way.
Sent the tracking number to u after delivery.
Competitive Advantages
1.Over 15 years of R&D and manufacturing experience in the connector field.
2.Four modern production bases over 20000m2 with 350 employees.more than 20 R&D engineers.
3.Offering FPC,SIM,Memory card connector,USB C Type ,Wafer connector, and other kinds of precision connector.
4.Widely used in POS,STB,DTV,Automotive electronics, Computer communications, Smart meters, and other electronic products.
5.Exporting to 50+ countries in Europe,America,Asia and Africa.
6.Supplying Ingenico,Verifone, Sagemcom,Huawei,Teltonika and Pegatron..
7.ISO9001:2015 - certified.
