Product Details:
|
No. Of Positions: | 10p | Rated Current: | 0.5A |
---|---|---|---|
Rated Voltage: | 30V | Contact Resistance: | 40m Ohms MAX |
Insulation Resistance: | 1000mohms Min 100V DC | Withstanding Voltage: | 500V AC |
High Light: | SMT 10Pin SD Memory Card Connectors,SMT SD Memory Card Connectors,10Pin micro sd connector |

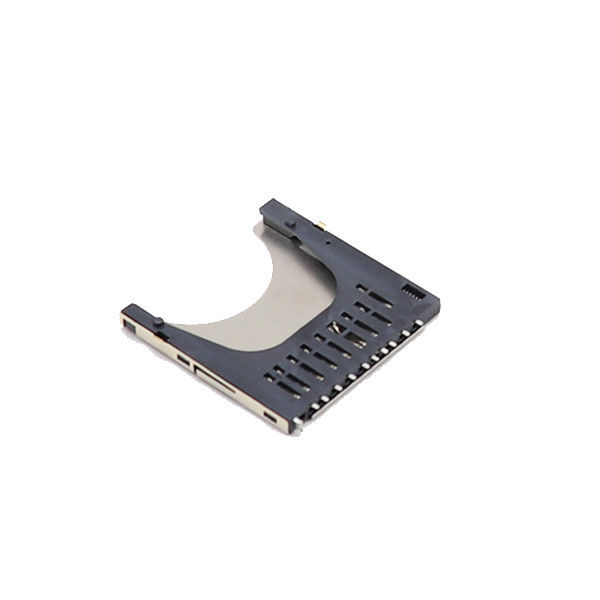

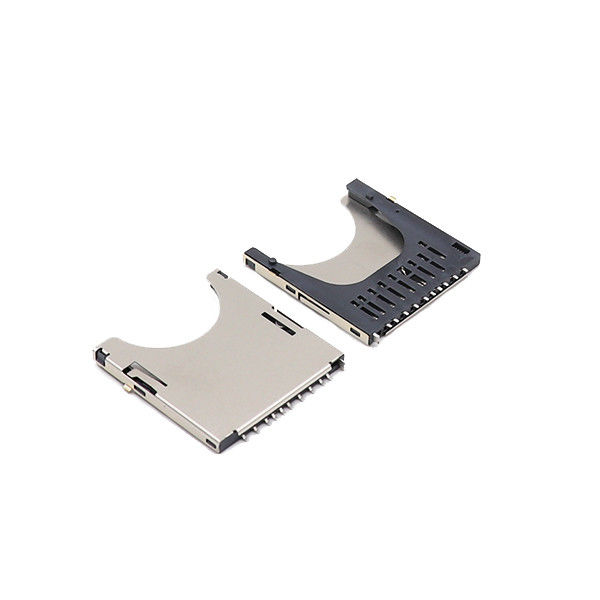

10Pin SD card connector SMT push-push memory card connector
Connector group that includes connectors for standard PCMCIA for PCs, push-push type SD,Micro SD and SIM connectors.
This series are SDMC (Secure Digital Memory Card) Connectors used as the recording medium of portable devices, which can be widely introduced into the market of notebook PCs, mobile phones, DVCs (Digital Video Cameras), DSCs (Digital Still Cameras) and other complex machines for these applications.
Providing compact memory card sockets with a height of no more than 1.28mm, saving PCB space. As products become smaller, a minor external shock could cause short-circuit or misalignment. The hinge feature keeps the card stable, protecting it from external shocks and/vibrations. Customers require easy card insertion and extraction for portable devices. The push-push ejection system utilizes spring elasticity, and the push-pull system utilizes simple manual ejection, simplifying card insertion and ejection for portable devices.
Specifications
Mounting Type | SMT |
No. Of Positions | 10p |
Rated current | 0.5A |
Rated voltage | 30V |
Contact Resistance | 40m ohms MAX |
Insulation Resistance | 1000mohms min 100V DC |
Operation Temperature | -40℃ to +60℃ |
Storage Temperature | -10℃ to +85℃ |
Withstanding Voltage | 500V AC |
Housing | LCP,UL94V-0 black |
Terminal | copper alloy |
Gender | Female |
Price Term | FOB |
Durability cycles | 5000 Cycles Min |
Lead Time | 7-10 working Days |
Ejector Type | Push-push;push-pull,Hinge,Tray type |
Product Application
XTK connectors are widely applied tocummunications equipments, cusumer electronics, smart home, automotive filed, medical equipment , data module and so on .
Our Service
1. the series of product specifications are complete, but also tailor-made.
2. import equipment and high degree of automation timely delivery. Usually 7-10 days.
3. strict implementation of the ISO 9000 and ERP system, the supply of materials strictly in accordance with the quality and standard production control. Product quality assurance through UL-certified.
4. Free sample 15-20 sets, cost-effective, the same quality unit price is very competitive.
Shipping
1. We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs
2. It will take around 3-7 days to reach your hands.
Competitive Advantages
1, 10 year's experience in the electronic business.
2, Strong R&D team specialized in connector and model design.
3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.
4, Strict shipping ,100% tested before delivery.
5, Fast delivery,purchasing orders shipped in 3-10 days.
6, Samples can be provided for free in 1-3 days.
