Product Details:
|
| Rated Current: | 0.5A AC | Rated Voltage: | 100V AC/DC |
|---|---|---|---|
| Durability Cycles : | 5000 Cycles Min | Insulation Resistance: | 1000m Ohms Min |
| Contact: | Copper Alloy | Service: | Samples For Free |

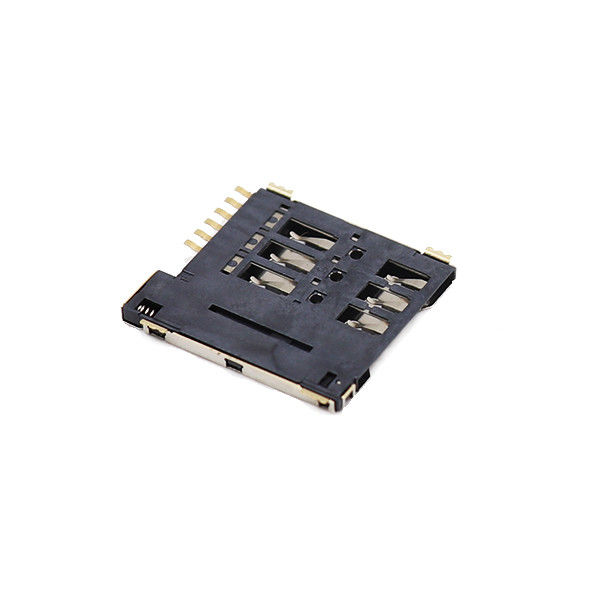

| High Light: | SMT Micro Sim Card Connector,6p Micro Sim Card Connector,SMT micro sim socket |
||
The SIM (User Identity Module) is a small smart card designed to store user identity, security, authentication and personal information for use in mobile network terminals. In order to make power and electrical signals "uninterrupted", "unchangeable" and "undecayed", contact reliability technology is particularly important. MSTCONN offers a wide range of types and sizes, including Nano (4FF SIM) cards, Micro SIM(3FF SIM) cards, Micro SIM(2FF SIM) cards and combination SIM cards, with outstanding technical capabilities and excellent reliability and durability. The MSTCONN SIM card holder also has an operating temperature range of -40 to +85 ° C.
Optimized for reliability and high-speed data transfer, compact, easy-to-use SIM Memory Card Sockets, in different configurations, meet the quick and compact connection requirements of various industries.
Description
| Mounting Type | SMT |
| No. Of Positions | 6p |
| Rated current | 0.5A AC |
| Rated voltage | 100V AC/DC |
| Contact Resistance | 100m ohms MAX |
| Insulation Resistance | 1000m ohms min |
| Insertion Force | 20gf/pin Min |
| Operation Temperature | -40to +85℃ |
| Withstanding Voltage | 500V/1min AC |
| Housing | LCP UL94V-0 black |
| Contact | Copper alloy |
| Gender | Female |
| Price Term | FOB |
| Durability cycles | 5000 Cycles Min |
| Lead Time | 7-10 working Days |
| Ejector TYpe | Push-push;push-pull,Hinge;Tray type |
Variety of circuit sizes deliver both high reliability and speedy data rates.
1. XTK has many types card connectors: SD/TF/SIM/MICRO SD card connector.
1.Ask:What products and services our company mainly provide
Answer :FPC Connector, Wafer socket, Sim card connector, Memory Card connector ,cable assembly, design, production and sales.
