Right Angle 2.54 Mm Pitch Pin Header Single Row PCB Connector

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

Right Angle 2.54 Mm Pitch Pin Header Single Row PCB Connector

Right Angle 2.54 Mm Pitch Pin Header Single Row PCB Connector
Right Angle 2.54 Mm Pitch Pin Header Single Row PCB Connector Right Angle 2.54 Mm Pitch Pin Header Single Row PCB Connector Right Angle 2.54 Mm Pitch Pin Header Single Row PCB Connector

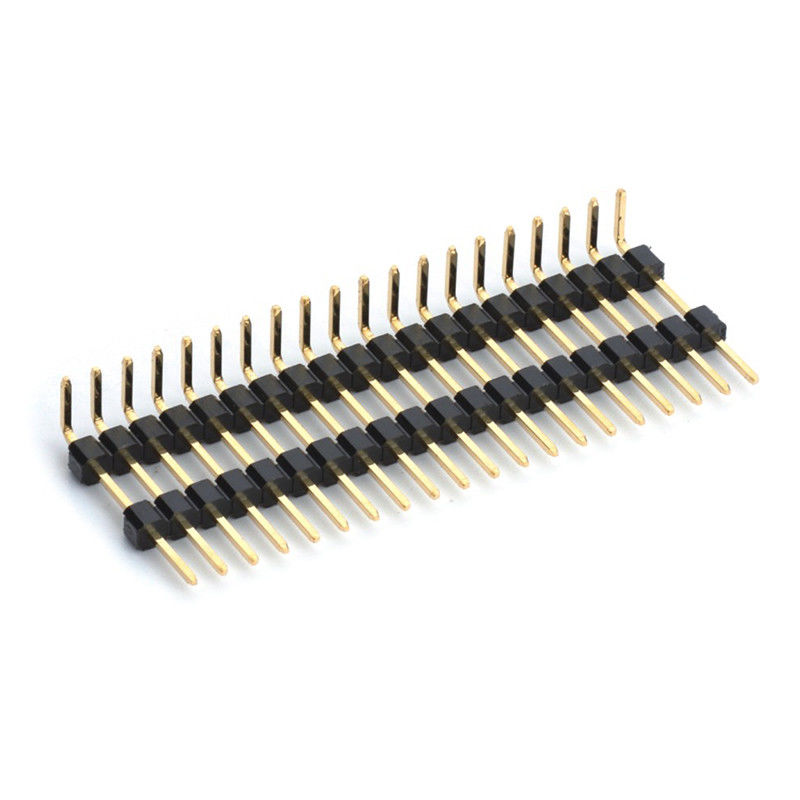

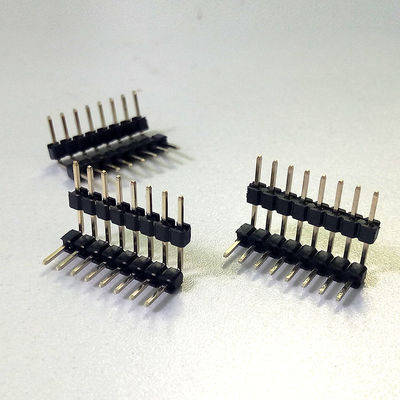

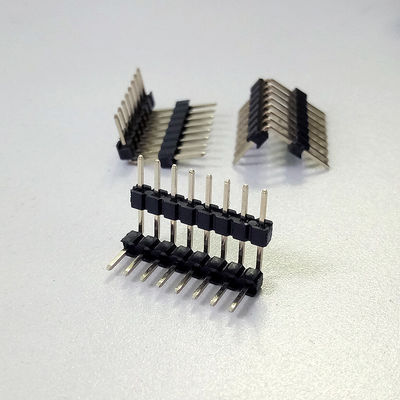

Large Image :  Right Angle 2.54 Mm Pitch Pin Header Single Row PCB Connector

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Pin header connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

Right Angle 2.54 Mm Pitch Pin Header Single Row PCB Connector

Description
Rated Current: 1.5Amp Contact Resistance: 20m Ohms MAX
Rated Voltage: AC 500V Housing: Polyester(UL94V-0)
Contact Plating: Au Over 50U 260℃ Per 5s Operation Temperature: -40℃ To +105℃
High Light:

Right Angle 2.54 mm pitch pin header

,

PCB 2.54 mm pitch pin header

,

2.54mm right angle pin header

Right Angle 2.54mm Pitch Pin Header Connector Single Row PCB Connector





Pin Headers provide design flexibility, production efficiency while decreasing needed equipment assets.with Horizontal, right-angle and vertical about orientation & single and dual Rows with range of 0.8mm to 3.96mm pitch.



Specifications



Pitch 2.54mm
Mounting Type SMT
No. Of Positions 2-50p
Rated current 1.5A AC
Rated voltage 500V AC
Contact Resistance 20 ohms MAX
Insulation Resistance 1000m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -40℃ to +105℃
Withstanding Voltage 1000V/1min AC
Housing Polyester(UL94V-0)
Contact Phosphor bronze
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days

Right Angle 2.54 Mm Pitch Pin Header Single Row PCB Connector 0



Description


1. Product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2. Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.
3. Products are mainly used in:instrumentation, communication, security, medical equipment, computer motherboards, program-controlled switch, digital camera, LED photoelectricity, etc.
The face of strong demand customization, our strong R&D center, mold manufacturer and processing center, which can quickly grasp customer needs, providing OEM/ODM products with the most reliable product and precise connectors for different customers.



PCB Connector orientations



The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degree increments:

  • Parallel or mezzanine – both connectors are vertical orientation;
  • 90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;
  • 180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.
  •

Other names for PCB Connectors



PCB Connectors can be known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. Male PCB Connectors are often referred to as Pin Headers, as they are simply rows of pins. Female PCB Connectors can be called Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.



Primary Competitive Advantages



Small orders accepted
Factory direct export
With 20 years of professional production experience as a manufacturer of precision connectors
Free samples is available
Prompt delivery
Green product
Strong researching and developing team
Experienced staff
ISO9001,ROHS



Contact Details
Shenzhen Xietaikang Precision Electronic Co., Ltd.

Contact Person: Tina

Tel: 86 13711847246

Send your inquiry directly to us (0 / 3000)
