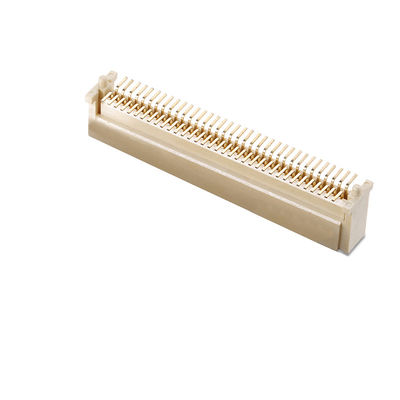

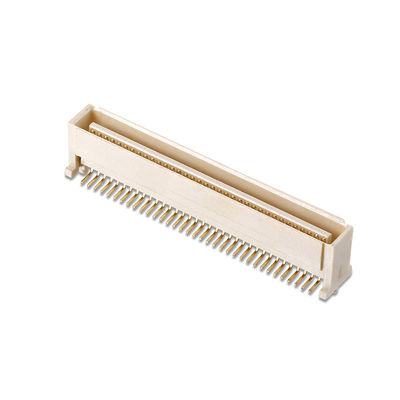

Pitch 1.0mm SMT Automotive Board To Board Connector Board To Board Pin Header

Pitch 1.0mm SMT Automotive Board To Board Connector Board To Board Pin Header
Pitch 1.0mm SMT Automotive Board To Board Connector Board To Board Pin Header Pitch 1.0mm SMT Automotive Board To Board Connector Board To Board Pin Header

Large Image :  Pitch 1.0mm SMT Automotive Board To Board Connector Board To Board Pin Header

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: BTB connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 3KK pcs

Pitch 1.0mm SMT Automotive Board To Board Connector Board To Board Pin Header

Description
Application: PCB Pitch: 1.0mm
Gender: Female And Male Pin: 70pin
Certificate: UL CE RoHS REACH ISO TS16949 Operation Temperature: -40℃ To +85℃
High Light:

SMT Automotive Board To Board Connector

,

1.0mm Automotive Board To Board Connector

,

1.0mm Board To Board Pin Header

Single slot plug Pitch 1.0mm board to board connector male and female sets





Xietaikang provides a wide variety of Board to Board connectors from 0.4mm of narrow-pitches, low profile, and space-saving types that are best suited to compact equipment such as smartphones, wearable devices, and such to the types featuring the floating structure absorbing vibrations and minor misalignment on a printed circuit board that are best suited to equipment such as automobiles and medical devices requiring high contact reliability.

Ideal for compact applications in the automotive, industrial, medical and mobile device industries, SlimStack Board-to-Board Connectors offer a wide selection of low-profile, narrow width options in various mated heights and circuit sizes.



Specifications



Item

Board to board female header

Pitch

1.0mm

Mounting Type

SMT

Positions

2x35 pins ;2X20~2X50 available

Connection Style

Right angle-Vertical

Current rating

1A

Voltage rating

AC 500V

Contact Resistance

20mΩ Max

Insulation Resistance

1000MΩ min

Contact Material

Copper alloy

Insulator Material

LCP+30%GF UL94V0

Plating

Nickel+Au

Withstanding Voltage

500V AC/Minute

Operation Temperature

-40℃ to +105℃

Max. Processing Temp

260℃

Insertion force

80~200g

Withdrawal force

70~200g

Packing

tube, tray, plastic bag, tape & reel optional

Carton size

customized

Free sample

available



Pitch 1.0mm SMT Automotive Board To Board Connector Board To Board Pin Header 0



1. 100% tested before shipment

2. Payment terms: T/T, Western Union, L/C, Moneygram, PayPal, Cash
3. Shipping ways: Fedex,DHL,UPS,TNT,AIR,SEA

4. Delivery lead-time: within 5-30 days, depends on order quantity
5. We are professional manufacturer majoring in board to board connectors, wire to board connector, pin header, female header, box header, ejector header, wafer, FPC,USB,RJ45,Memory Card connector etc.

6. OEM/ODM/Customized products are welcome
7. If any questions, feel free to contact us.
