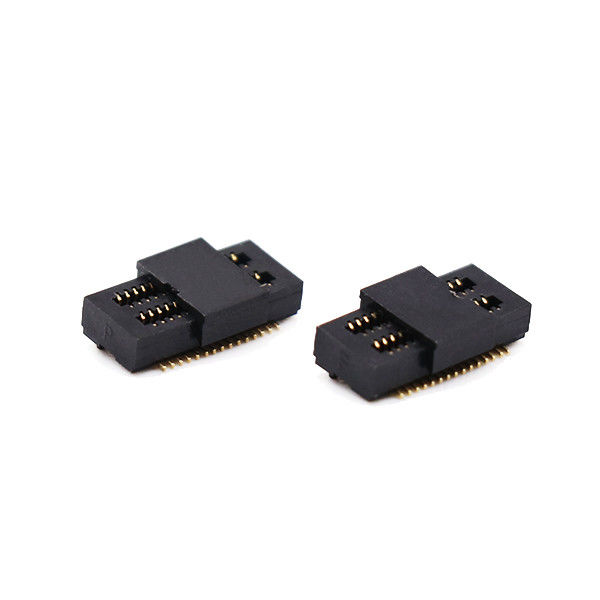

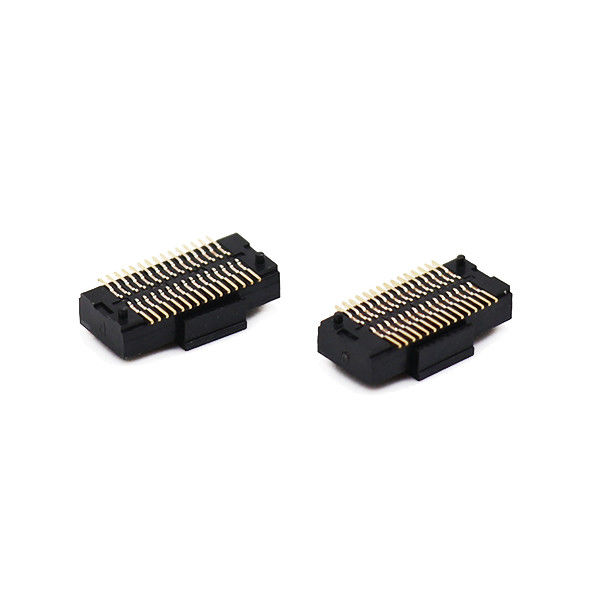

70P Double Row 0.5mm Pitch PCB Board To Board Female Header Connector SMT Type

70P Double Row 0.5mm Pitch PCB Board To Board Female Header Connector SMT Type
70P Double Row 0.5mm Pitch PCB Board To Board Female Header Connector SMT Type
70P Double Row 0.5mm Pitch PCB Board To Board Female Header Connector SMT Type 70P Double Row 0.5mm Pitch PCB Board To Board Female Header Connector SMT Type 70P Double Row 0.5mm Pitch PCB Board To Board Female Header Connector SMT Type 70P Double Row 0.5mm Pitch PCB Board To Board Female Header Connector SMT Type

Large Image :  70P Double Row 0.5mm Pitch PCB Board To Board Female Header Connector SMT Type

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: BTB connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs

70P Double Row 0.5mm Pitch PCB Board To Board Female Header Connector SMT Type

Description
Pitch: 0.5mm Color: Black
Gender: Female And Male Service: OEM ODM Accept
Pins: 4-100 Plating: Gold Plating
High Light:

70P Board To Board Female Header

,

0.5mm Board To Board Female Header

,

0.5mm board to board connector smt

70P Double Row 0.5mm Pitch PCB Board To Board Female Connector SMT Type





Product Desceription



Item Board to board female header
Pitch 0.5mm
Mounting Type SMT
No. Of Positions 4-50pin
Connection Style Vertical-Vertical
Current rating 0.5AMP
Voltage rating 50V
Contact Resistance 30mΩ Max
Insulation Resistance 500mΩ Min
Contact Material Phosphor Bronze Gold Plated
Housing Material LCP
Insulator Color White/black
Withstand Voltage 200V AC/Minute
Operation Temperature -25℃ to +85℃
Lead Time 7-10 working Days



70P Double Row 0.5mm Pitch PCB Board To Board Female Header Connector SMT Type 0



Drawing



70P Double Row 0.5mm Pitch PCB Board To Board Female Header Connector SMT Type 1

70P Double Row 0.5mm Pitch PCB Board To Board Female Header Connector SMT Type 2



Feature



Xietaikang provides a wide variety of Board to Board connectors from 0.4mm of narrow-pitches, low profile, and space-saving types that are best suited to compact equipment such as smartphones, wearable devices, and such to the types featuring the floating structure absorbing vibrations and minor misalignment on a printed circuit board that are best suited to equipment such as automobiles and medical devices requiring high contact reliability.



Ideal for compact applications in the automotive, industrial, medical and mobile device industries, SlimStack Board-to-Board Connectors offer a wide selection of low-profile, narrow width options in various mated heights and circuit sizes.



Product Application



1, electrical equipment .

2, Communications Industry.

3, Security Equipment.

4, Automotive Filed

5, Network Communications

6, Measuring Instruments



FAQ



Q: Are you trading company or manufacturer?
A: We are factory with over 10 years experience in connector industrial.

Q: Delivery time?
A: Generally 5-7 days for standard products within quantity of 10,000 pcs.

Q: Do you provide samples? is it free or charged
A: Free samples are always available for testing or quality evaluation purpose.

Q: What is your terms of payment?
A: Payment terms are flexible, T/T, Paypal, L/C, D/A, D/P, Western Union, Money Gram etc.


Q: Is small order less than 100pcs accepted?
A: Yes, please contact with us, we will send you link for small order.
