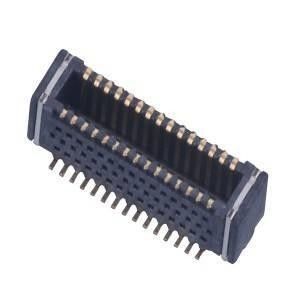

30 Pin Board To Board BTB Connector 0.4mm Pitch Vertical Board To Board Connector

30 Pin Board To Board BTB Connector 0.4mm Pitch Vertical Board To Board Connector
30 Pin Board To Board BTB Connector 0.4mm Pitch Vertical Board To Board Connector
30 Pin Board To Board BTB Connector 0.4mm Pitch Vertical Board To Board Connector 30 Pin Board To Board BTB Connector 0.4mm Pitch Vertical Board To Board Connector 30 Pin Board To Board BTB Connector 0.4mm Pitch Vertical Board To Board Connector

Large Image :  30 Pin Board To Board BTB Connector 0.4mm Pitch Vertical Board To Board Connector

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: BTB connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs
Contact Now

30 Pin Board To Board BTB Connector 0.4mm Pitch Vertical Board To Board Connector

Description
Application: PCB Circuit Connector Shipping Way: DHL\UPS\Fedex\EMS\HK Post
Mounting Type: Surface Mount Contact Finish: Gold
Packaging: Tape & Reel Pitch: 0.016"" (0.40mm)
Highlight:

30 Pin BTB Connector

,

0.4mm BTB Connector

,

0.4mm vertical board to board connector

30Pin Board-to-board Connector 0.4mm Pitch





Product Description



Type Board to Board Connector
Spacing 0.4mm
Specifications Vertical pedestal
material LCP
Rated current 0.3A AC (RMS)
Operating temperature range -25º C ~ +85º C
Contact resistance 50 mΩ Max
Voltage resistance 150V AC r.m.s
Contact resistance 90 mΩ Max
Rated voltage 60V AC (RMS) /DC







Drawing



30 Pin Board To Board BTB Connector 0.4mm Pitch Vertical Board To Board Connector 0



Warranty

1.All products with 1year warranty from the date received.
2.Full amount refund or replacement for defective merchandise within warranty period.

About Board To Board Connector

LOW PROFILE
For applications requiring boards to be mated very closely together to save vertical space.
The carrier socket is placed in position, allowing the receptacles to fall into the holes in a pc board.
Only the shoulder of the receptacle rests on the surface of the pc board.
After wave soldering, the carrier is removed and only the height of the shoulder is left above the board. Effectively, the entire “insulator” has been eliminated.
Next, a male header is mated to provide for a very tightly-spaced, pluggable board-to-board interconnect.



How To Use BTB Connector


1. Board to board connectors strong environmental resistance! Adopt a "strong connection" with high contact reliability.

2. Improve the combination of socket and plug. By adopting simple locking mechanism in the fixed metal parts and touch parts, the locking force is enhanced and the locking is more effective.

3. The structure of the machine circuit design can be easily carried out. 1) By installing an insulating wall on the bottom surface of the connector, the PC board alignment can be made on the bottom face of the connector without contact with the metal terminal, contributing to the miniaturization of the PC board.
