40P BTB Connector PCB Board To Board Connectors 0.5mm Pitch Vertical Type

40P BTB Connector PCB Board To Board Connectors 0.5mm Pitch Vertical Type

Vertical 40P BTB Connector

0.5mm BTB Connector

0.5mm PCB Board To Board Connectors

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

BTB connector

Contact Us
Request A Quote
40P BTB Connector PCB Board To Board Connectors 0.5mm Pitch Vertical Type
40P BTB Connector PCB Board To Board Connectors 0.5mm Pitch Vertical Type 40P BTB Connector PCB Board To Board Connectors 0.5mm Pitch Vertical Type
Product Details
Pitch:
0.5mm
Contact Resistance:
40 M Omega Max
Insulation Resistance:
800 M Omega Min
Rated Current:
0.5A AC (RMS)
Rated Voltage:
60V AC (RMS) /DC
Voltage Resistance:
500V AC R.m.s
Highlight:

Vertical 40P BTB Connector

,

0.5mm BTB Connector

,

0.5mm PCB Board To Board Connectors

Payment & Shipping Terms
Minimum Order Quantity
600pcs
Price
Negotiable price
Packaging Details
inner package:in reel; Outer Package: reel in Carton
Delivery Time
5-7 days
Payment Terms
L/C, T/T,Payyal
Supply Ability
1KK pcs
RELATED PRODUCTS
Good price Pitch 1.0mm SMT Automotive Board To Board Connector Board To Board Pin Header online Video

Pitch 1.0mm SMT Automotive Board To Board Connector Board To Board Pin Header

Get Best Price
Good price 2x25P Board To Board BTB Connector 0.5mm Pitch SMT PA6T For PCB Board online Video

2x25P Board To Board BTB Connector 0.5mm Pitch SMT PA6T For PCB Board

Get Best Price
Good price Gold Plated 80 Pin BTB Connector 0.8mm Pitch SMT Board To Board Connector Male Plug online Video

Gold Plated 80 Pin BTB Connector 0.8mm Pitch SMT Board To Board Connector Male Plug

Get Best Price
Good price 0.8mm Pitch 10 Pin Board To Board Smt Connector Female SMT Type Height 5.2mm online Video

0.8mm Pitch 10 Pin Board To Board Smt Connector Female SMT Type Height 5.2mm

Get Best Price
Contact Us
86 13711847246
tina.liaoyan@foxmail.com
86-769-85150486
Contact Now
Product Description

40P PCB Board To Board Connector 0.5mm Pitch Vertical Type





Product Details



Secification: 0.5mm Pitch
part number: BTB05
Certification: ISO9001,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white

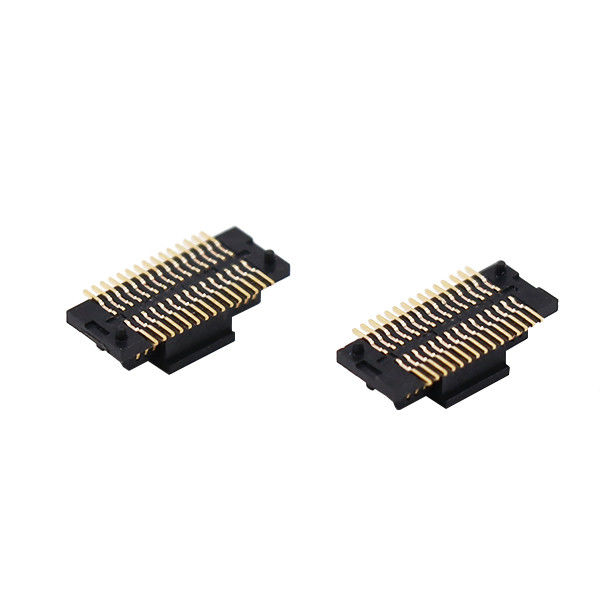

40P BTB Connector PCB Board To Board Connectors 0.5mm Pitch Vertical Type 0



Drawing

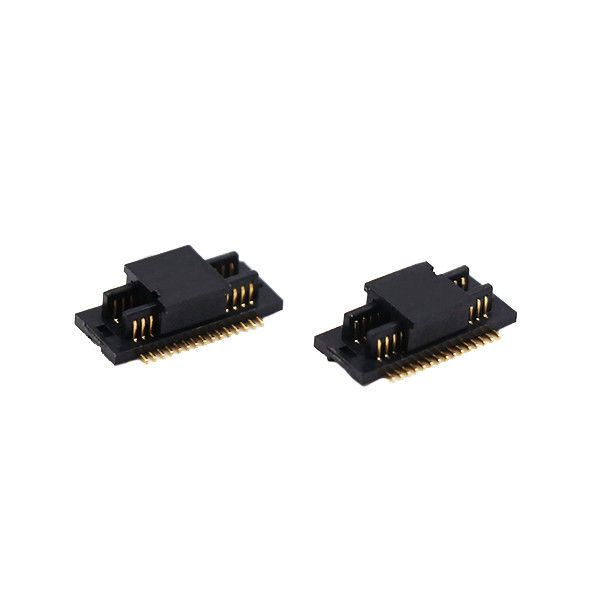

40P BTB Connector PCB Board To Board Connectors 0.5mm Pitch Vertical Type 1

40P BTB Connector PCB Board To Board Connectors 0.5mm Pitch Vertical Type 2



Features

1. ultra low height double chip connector. The height of the combination is 0.9mm. The height of 0.9mm is super low at 0.4mm spacing. Contribute to the further thinning of the machine.
2. board to plate connector resistance to the environment! A "strong connection" with high contact reliability is adopted.
3. improve the combination force of the socket and plug. Simple locking mechanism is adopted in fixing metal parts and contacts to improve the combination force and make the locking more inserting and pulling solid.
4. it is easy to construct the design of the machine circuit. 1) by setting the insulation wall at the bottom of the connector, the PC board is not in contact with the metal terminal, and the line wiring is carried out on the face of the connector, which contributes to the miniaturization of the PC plate.
5. board is equipped with a check connector for the board connector. There are inspection connectors for modular unit inspection and machine assembly process inspection.
6. corresponds to the RoHS instruction. Widely used in mobile phones, notebook computers, LCD modules, PDA, digital cameras, MP3 and other electronic and communications products.

Our Service

1) Your inquiry will be replied within 12 hours.
2) We provide OEM, ODM service, the details of the product can be made as your requirement.
3) Excellent before service and after service.
4) Factory and trade integration,18 years export experience
5) One-stop shopping
6) Competitive price;
7) Timely delivery
