Home ProductsHDMI Cable Connectors

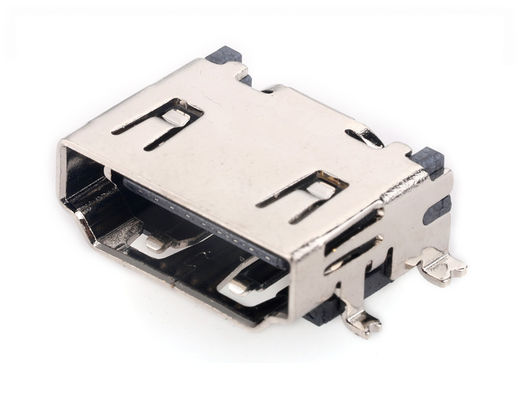

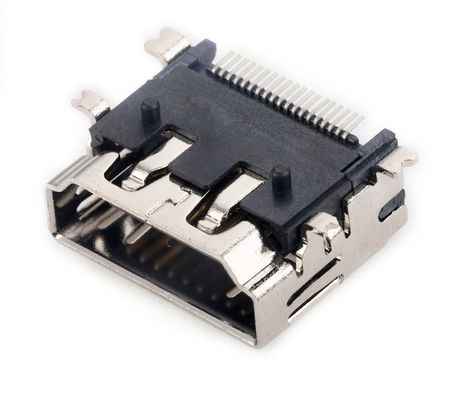

Horizontal HDMI PCB Socket Female SMT Type A Connector 10000 Cycles

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

Horizontal HDMI PCB Socket Female SMT Type A Connector 10000 Cycles

Horizontal HDMI PCB Socket Female SMT Type A Connector 10000 Cycles
Horizontal HDMI PCB Socket Female SMT Type A Connector 10000 Cycles Horizontal HDMI PCB Socket Female SMT Type A Connector 10000 Cycles

Large Image :  Horizontal HDMI PCB Socket Female SMT Type A Connector 10000 Cycles

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: HDMI Cable Connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs

Horizontal HDMI PCB Socket Female SMT Type A Connector 10000 Cycles

Description
Packaging: Tape & Reel Contact: Copper Alloy
Type: DVI Connector, With Cover And Without Screw Shell: Copper Alloy Or Iron
Automatic Cycling: 10000 Cycles Used For: TV,set Top Box,computer Board,tablet PC
High Light:

SMT HDMI PCB Socket

,

10000cycles Type A Connector

,

Horizontal HDMI PCB Socket

Horizontal A Type Female SMT connector PCB HDMI compatible socket for SET TOP BOX





Description



Meterial

Base High Temperature plastic UL94V-0
Color Black
Conat Copper Alloy
Shell Copper Alloy or Iron
Mechanical Insertion Force 4.5kgf MAX
Withdrawal Force 1.0~4.0kgf
Electrical Contact Current Rating 0.5A
Dielectric Withstanding voltage 500V AC
Contact Resistance

Contact:30 Milliohms MAX,

Shell: 50 Milliohms MAX

Dielectric withstanding Voltage 500V AC
Insulation Resistance

100 Megaohms Min at 500V AC(Unmated)

10 Megaohms Min at 150V DC(Mated)

Environmental Temperature Range -25℃ To +85℃

Horizontal HDMI PCB Socket Female SMT Type A Connector 10000 Cycles 0



Applications

They can be used to operate all types of computers, TV, Set top box, VCRs, stereo and car radio equipments, audio devices, video recorders, and home applications.



Packing

Inside: Reel packing,400PCS per reel,

Outside: carton,3200PCS per carton.



Our Services

Price Term

FOB Shenzhen

Payment Terms

♦ T/T, Paypal

Delivery

♦ UPS, DHL, FEDEX,TNT

♦ Select the most economic and efficient way.

♦ Sent the tracking number to u after delivery.

Samples

♦ Free samples will be sent on request.

♦ The samples lead time is within 3-5 days after u confirmed.
