19 Pin Micro HDMI Socket LCP C Type Female Connector For PCB

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

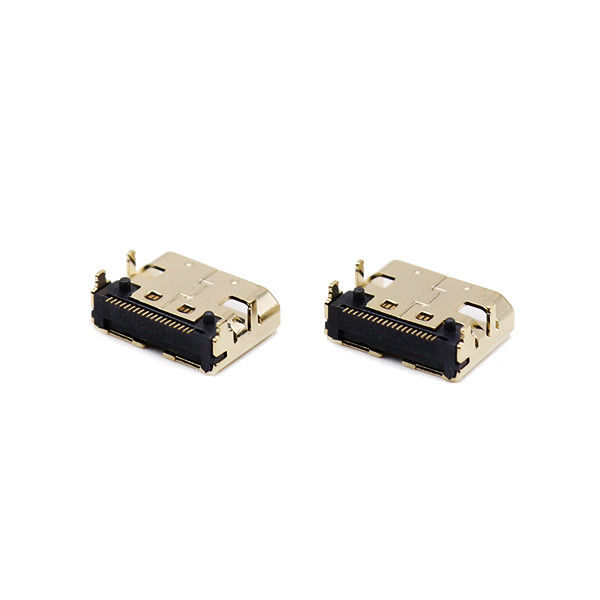

19 Pin Micro HDMI Socket LCP C Type Female Connector For PCB

19 Pin Micro HDMI Socket LCP C Type Female Connector For PCB
19 Pin Micro HDMI Socket LCP C Type Female Connector For PCB
19 Pin Micro HDMI Socket LCP C Type Female Connector For PCB 19 Pin Micro HDMI Socket LCP C Type Female Connector For PCB 19 Pin Micro HDMI Socket LCP C Type Female Connector For PCB

Large Image :  19 Pin Micro HDMI Socket LCP C Type Female Connector For PCB

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: HDCXX-XXXX-2000-A
Payment & Shipping Terms:
Minimum Order Quantity: 600pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs

19 Pin Micro HDMI Socket LCP C Type Female Connector For PCB

Description
Rated Current: 1.5A AC Rated Voltage: 30V
Contact Resistance: 30m Ohms MAX Insulation Resistance: 100mohms Min 100V DC
Operation Temperature: -40℃ To +60℃ Housing: LCP,UL94V-0 Black
High Light:

19Pin micro hdmi socket

,

LCP C Type Female Connector

,

19Pin LCP micro hdmi socket

19pin Mini HDMI Cable Connectors C type female connector for PCB







Provides faster speed with a smaller footprint for applications where size, real estate and space are concerns.



Specifications

Mounting Type SMT
No. Of Positions 19p
Rated current 1.5A AC
Rated voltage 30V
Contact Resistance 30m ohms MAX
Insulation Resistance 100mohms min 100V DC
Operation Temperature -40℃ to +60℃
Storage Temperature -10℃ to +85℃
Withstanding Voltage 100V AC MAX
Housing LCP,UL94V-0 black
Contact copper alloy
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days



19 Pin Micro HDMI Socket LCP C Type Female Connector For PCB 0



HDMI Cable Connector Material


1) Storage Temperature: -20ºC to +85ºC.
2) Operating Temperature: -20ºC to +85ºC.
3) Contact Mating Area Plating Material: Gold 6u/15u/30u/50u.
4) Gold Plating:1u ,3u 6u 15u 30u 50u.
5) Shield Material: Copper Alloy preplated with Nickel.



Payment term and delivery


1. MOQ:1000pcs.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
6. Delivery Time: 3-15 working days after order confirmed and the payment received.
