Home > Products > HDMI Connector Socket >

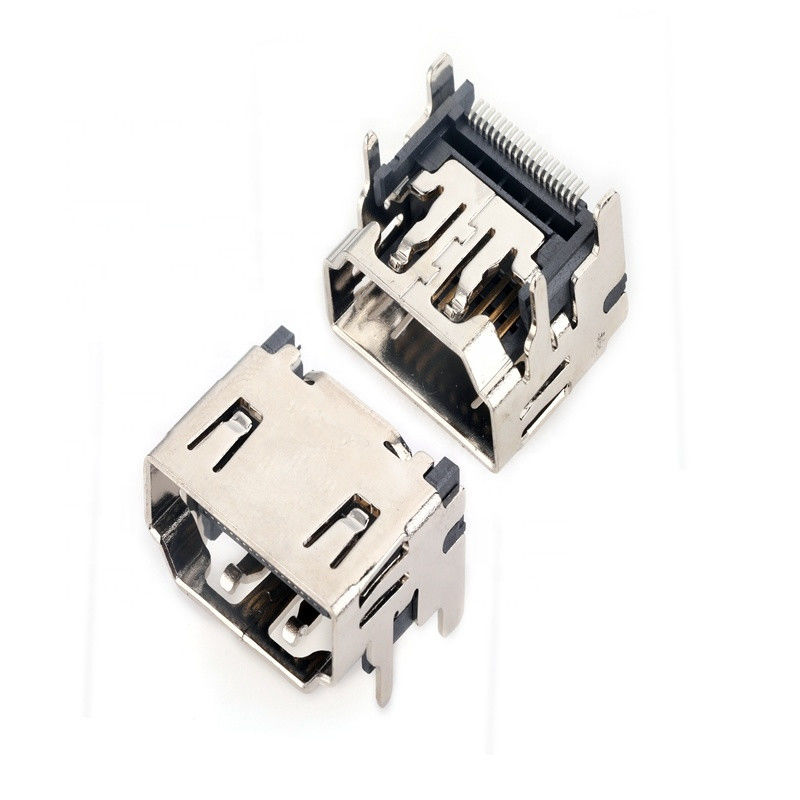

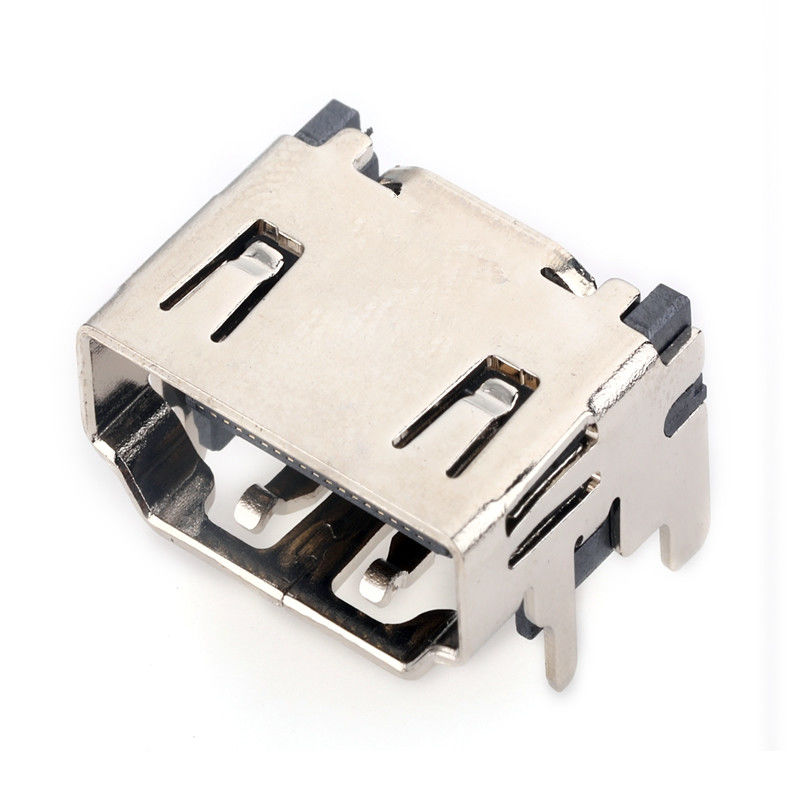

19 Pin Mini DP To HDMI Cable Connectors Adapter Type C Horizontal Socket Connector

19 Pin Mini DP To HDMI Cable Connectors Adapter Type C Horizontal Socket Connector

19pin HDMI Cable Connectors

DP To HDMI Cable Connectors

19pin mini hdmi connector

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

HDMI Connector

Contact Us
Request A Quote
19 Pin Mini DP To HDMI Cable Connectors Adapter Type C Horizontal Socket Connector
19 Pin Mini DP To HDMI Cable Connectors Adapter Type C Horizontal Socket Connector 19 Pin Mini DP To HDMI Cable Connectors Adapter Type C Horizontal Socket Connector
Product Details
Application:
Audio & Video
Contact:
Copper Alloy
Type:
DVI
Gender:
Female
Shell:
Copper Alloy Or Iron
Contacts:
19pin
Highlight:

19pin HDMI Cable Connectors

,

DP To HDMI Cable Connectors

,

19pin mini hdmi connector

Payment & Shipping Terms
Minimum Order Quantity
600pcs
Price
Negotiable price
Packaging Details
vacuum package,boxes in carton
Delivery Time
5-7 days
Payment Terms
L/C, T/T,Payyal
Supply Ability
1KK pcs
RELATED PRODUCTS
Good price Gold Plated Micro HDMI Cable Connectors 19 pin DIP+SMT d type female connector online Video

Gold Plated Micro HDMI Cable Connectors 19 pin DIP+SMT d type female connector

Get Best Price
Good price 19 Pin Micro HDMI Socket LCP C Type Female Connector For PCB online Video

19 Pin Micro HDMI Socket LCP C Type Female Connector For PCB

Get Best Price
Good price Horizontal HDMI PCB Socket Female SMT Type A Connector 10000 Cycles online Video

Horizontal HDMI PCB Socket Female SMT Type A Connector 10000 Cycles

Get Best Price
Good price Under Board Socket 19 Pin DIP Female PCB HDMI Cable Connectors 1.8mm For TV online Video

Under Board Socket 19 Pin DIP Female PCB HDMI Cable Connectors 1.8mm For TV

Get Best Price
Contact Us
86 13711847246
tina.liaoyan@foxmail.com
86-769-85150486
Contact Now
Product Description

19 Pin MINI Horizontal socket Connector DP to HDMI Cable Connector adapter and Type C connector





Meterial Base High Temperature plastic UL94V-0
Color Black
Conat Copper Alloy
Shell Copper Alloy or Iron
Mechanical Insertion Force 4.5kgf MAX
Withdrawal Force 1.0~4.0kgf
Electrical Contact Current Rating 0.5A
Dielectric Withstanding voltage 500V AC
Contact Resistance

Contact:30 Milliohms MAX,

Shell: 50 Milliohms MAX
Dielectric withstanding Voltage 500V AC
Insulation Resistance

100 Megaohms Min at 500V AC(Unmated)

10 Megaohms Min at 150V DC(Mated)
Environmental Temperature Range -25℃ To +85℃
Torque of Screw 3.0Kg Min With Screw of 6.20H and Cover

19 Pin Mini DP To HDMI Cable Connectors Adapter Type C Horizontal Socket Connector 0



HDMI Connectors Application

1) Automotive products
2) Printed circuit board
3) Watch TV boxes
4) LAN Ethernet and network
5) Medical equipment
6) Rear DVR video recorder




Service



Price Term ♦ FOB Shenzhen /EXW
Payment Terms ♦ T/T, Paypal
Delivery ♦ UPS, DHL, FEDEX,TNT
♦ Select the most economic and efficient way.
♦ Sent the tracking number to u after delivery.
Samples ♦ Free samples will be sent on request.
♦ The samples lead time is within 3-5 days after u confirmed.





Our Service



1. the series of product specifications are complete, but also tailor-made.
2. import equipment and high degree of automation timely delivery. Usually 7-10 days.
3. strict implementation of the ISO 9000 and ERP system, the supply of materials strictly in accordance with the quality and standard production control. Product quality assurance through UL-certified.
4. Free sample 15-20 sets, cost-effective, the same quality unit price is very competitive
5. the quality is safe and reliable, the price is competitive.







Tags：

PCB HDMI Cable Connectors

Horizontal HDMI PCB Socket

10000cycles Type A Connector
