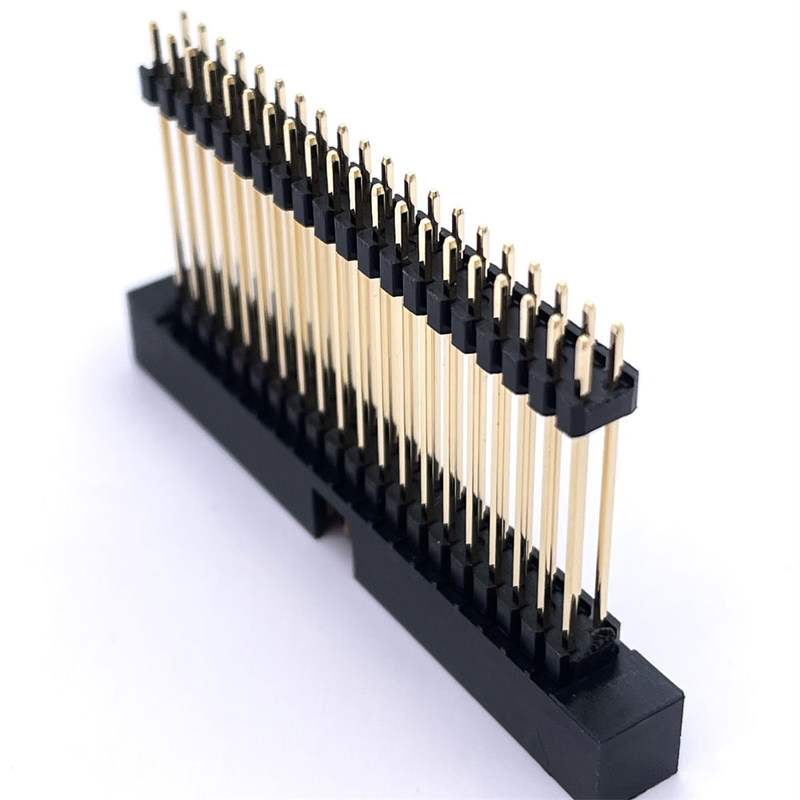

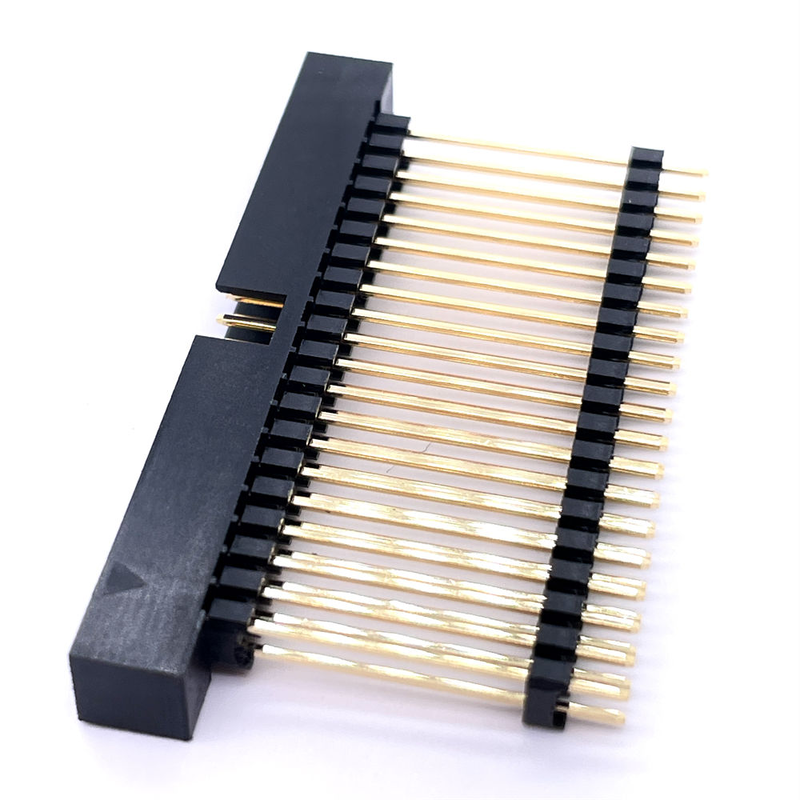

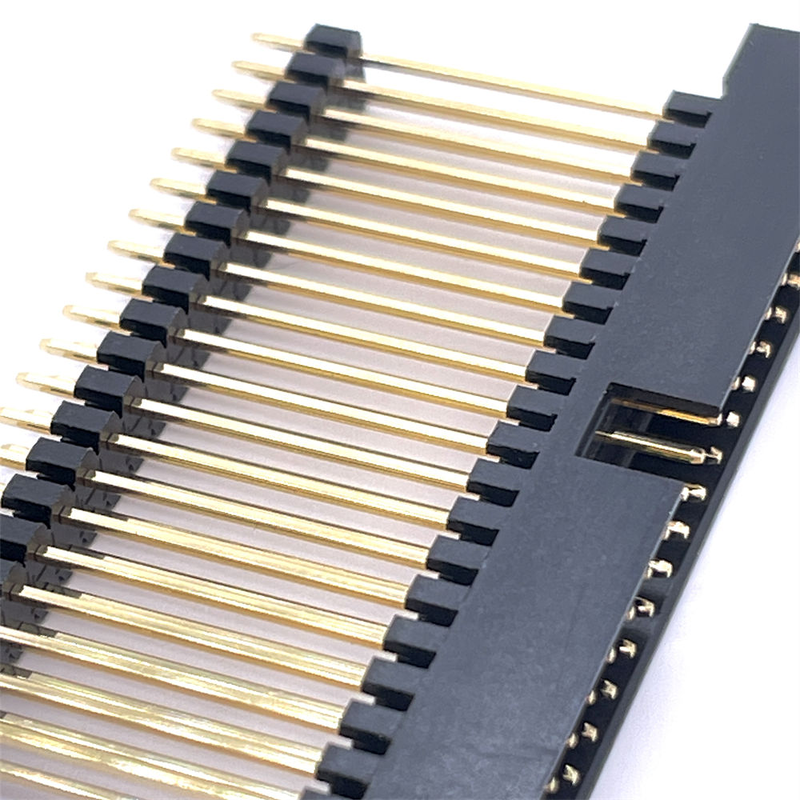

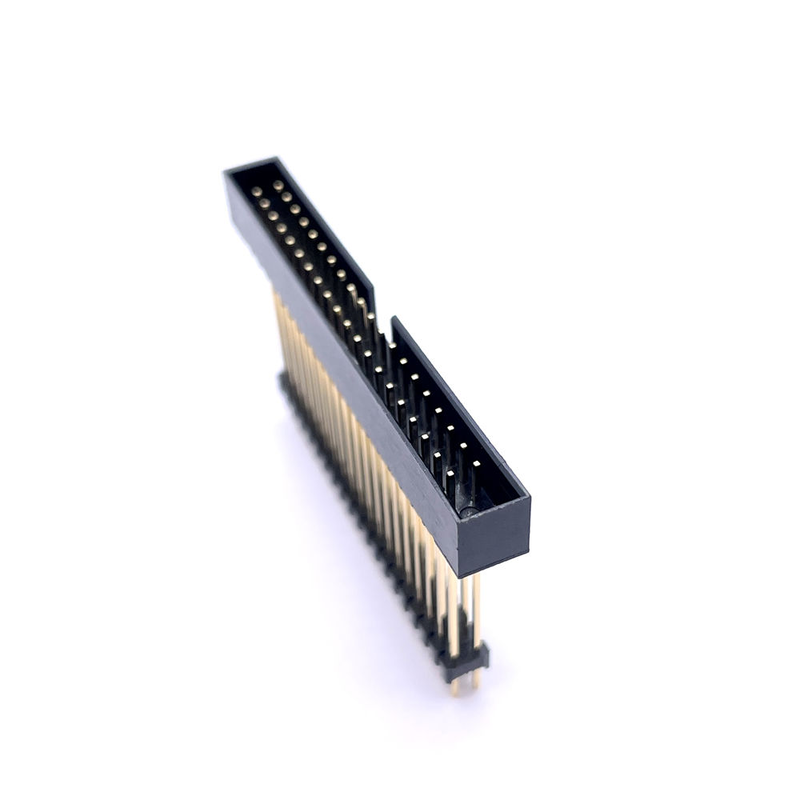

2.0mm Box Header H5.65 2x20p Straight Dual Row Gold-Plated Customized High-Quality Electrical Connector Box Header

Highlight

• Multi‑form customization supported: Straight / Right‑angle / SMT termination; custom plastic insulator height available
• SMT pick‑and‑place cap optional, fully compatible with Tape & Reel auto‑assembly line
• 2.0 mm pitch, dual row 2×20P, shrouded box header, gold‑plated contacts for stable signal transmission
• RoHS‑compliant, high‑quality phosphor‑bronze contact material, long mating cycle life
• Flexible pin‑count extension: 2×2P ~ 2×40P upon request

Product Description

Cross‑Reference & Alternative Replacement

Direct mechanical & electrical drop‑in replacement for mainstream international brand 2.0 mm dual‑row box header series.

Note: Please verify exact pin‑out, insulator height H5.65 and plating thickness against your original datasheet before design‑in. Works as alternative for Molex / TE / JAE equivalent 2.0 mm shrouded box header series; custom footprint adjustment is available if your project requires slight modification.

Product Feature

1. Shrouded box‑type housing prevents mis‑mating, protects pins against physical damage during assembly
2. Phosphor‑bronze contacts maintain stable spring force under vibration & temperature fluctuation
3. Gold‑plated contact area reduces contact resistance and prevents oxidation for long‑term reliability
4. Multiple termination options (straight/right-angle / SMT) adapt to diverse PCB layout requirements
5. Optional pick‑and‑place cap for SMT high‑speed automated mounting
6. Custom insulator height, pin quantity, and plating thickness for project‑specific demands

Product Advantage

• Factory direct supply, stable dimensional consistency; 100% in‑house QC inspection before shipment
• Supports Tape & Reel packaging, directly feeding into SMT pick‑and‑place machine without secondary manual handling
• Fast customization for non‑standard height / pin‑count / plating requirements
• Cost‑effective alternative to imported branded parts without sacrificing electrical‑mechanical performance
• RoHS compliant, suitable for industrial, medical and consumer‑grade projects

Application

• Industrial control boards & embedded system modules
• Communication equipment, signal transmission interfaces
• Medical device internal interconnections
• Instrumentation & measuring equipment
• Consumer electronics, power‑supply unit PCB connections
• Automation equipment signal‑link PCBA

Packaging Method

1. Tube (Tube packaging): Anti‑static tube, for prototype, small‑batch & manual assembly; not suitable for auto‑SMT machines
2. Tape & Reel: EIA‑481 standard carrier‑tape & reel, with optional pick‑and‑place cap. Ready for direct loading onto SMT auto pick‑and‑place equipment for mass production.

Please specify required packaging type when placing order.

Lead Time

• Samples: 3 working days
• Mass‑production orders: 1‑3 weeks (subject to customization complexity & material stock)

Factory Certification & Custom Service

• Certifications: UL94V‑0, RoHS, REACH
• Sample Policy: Free samples available, fast sample output
• MOQ: Low MOQ for standard items; custom parts subject to tooling requirements
• Custom service: Pin‑count adjustment, insulator height modification, termination type change, plating thickness tuning, special packaging requirement.

Customer Selection Guide

1. Confirm critical dimensions: Pitch 2.0 mm, body height H5.65 mm, dual‑row 2×20P before design‑in
2. Select termination type: Straight THT / Right‑angle / SMT according to your PCB stack‑up
3. Confirm plating specification: Gold plating thickness for high‑reliability scenarios; tin plating for cost‑sensitive consumer projects
4. Packaging selection: Choose Tape & Reel if your production line uses automated SMT pick‑and‑place; select Tube for lab prototype & manual assembly
5. Mating part verification: Double‑check mating connector footprint & mechanical fitting before mass‑order.

Download 2D/3D drawing & datasheet upon request for your PCB library.
