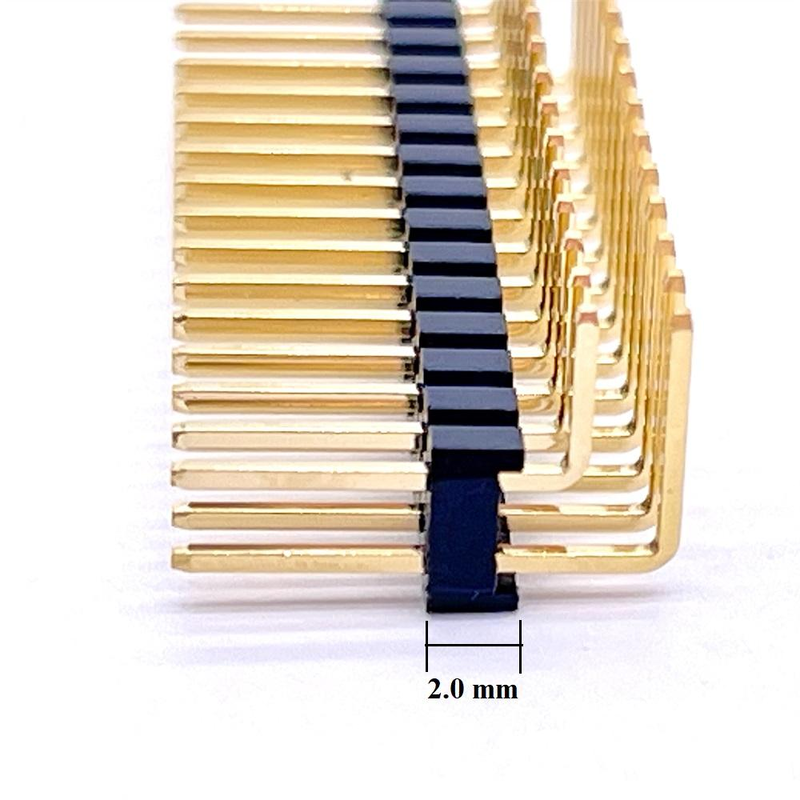

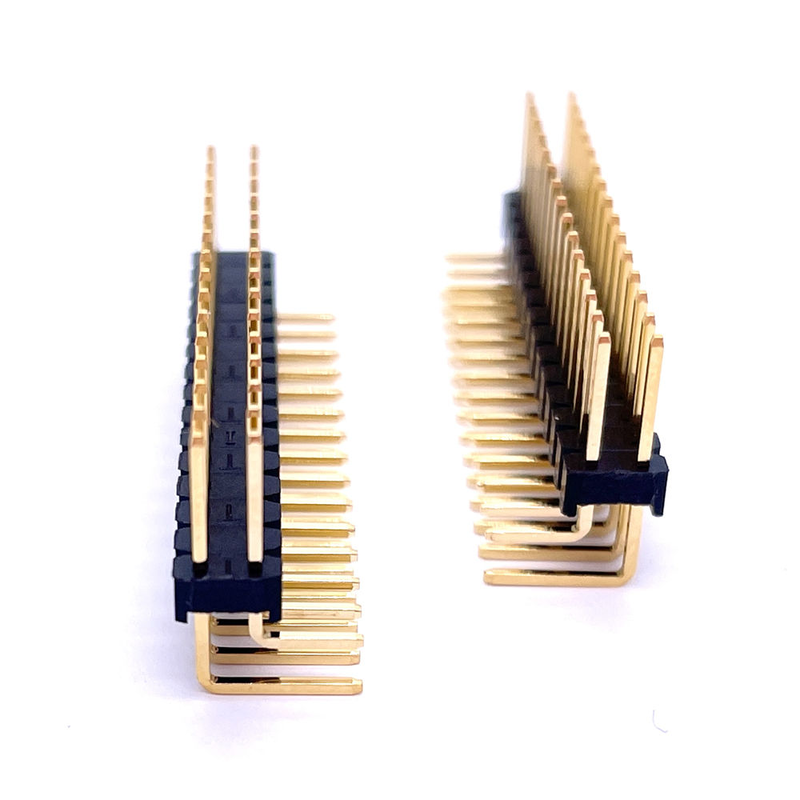

Brass Contact IP68 40-pin 2.0 mm Pitch Dual Row Plastic PCB Right Angle Pin Header

Brass Contact IP68 40-pin 2.0 mm Pitch Dual Row Plastic PCB Right Angle Pin Header

Highlight

• Multiple mounting options: Straight / Right‑angle / SMT versions available
• Fully customizable plastic insulator height, pin length & housing dimensions
• SMT pick‑and‑place cap available for automatic assembly line
• Tape & Reel & Tube packaging options for SMT‑line direct feeding
• IP68 waterproof rating, brass contact material, dual‑row 40‑pin, 2.0 mm pitch, right‑angle PCB mounting
• Support OEM / ODM custom modification for special project requirements

Product Description

Cross‑Reference & Alternative Replacement

Direct functional drop‑in replacement for major international series from Molex, JAE, Samtec 2.0 mm dual‑row right‑angle pin header series.

Note: Verify footprint, pin length, plating specification and waterproof requirement before cross‑model substitution. We provide drawing & 3D file for your PCB validation to avoid re‑design risk.

Product Feature

1. IP68 sealed structure, dust‑proof & waterproof for harsh outdoor/industrial environments
2. Brass contacts deliver stable conductivity and reliable signal transmission
3. Right‑angle 90‑degree design saves PCB vertical space for compact enclosure layout
4. High‑temperature UL94V‑0 plastic housing tolerates SMT reflow soldering
5. Pick‑and‑place cap compatible for high‑speed SMT automatic mounting
6. Flexible dimension customization: pin length, insulator height, mounting style

Product Advantage

1. Factory‑direct ODM/OEM, custom dimensions without huge non‑recurring tooling cost for most variants
2. Dual‑option packaging: Tube / Tape & Reel, ready for your existing SMT pick‑and‑place machines
3. Strict IP68 sealing validation, stable performance under vibration & moisture conditions
4. Short lead‑time for standard parts; fast sampling support for R&D prototype verification
5. RoHS‑REACH compliant, meets global electronic product market access requirements

Application

• Industrial control equipment, outdoor IoT sensing hardware
• Waterproof sensor modules, outdoor monitoring devices
• Vehicle‑mount auxiliary electronics, harsh‑condition board‑to‑board connection
• Medical waterproof equipment, portable field instruments
• Security surveillance, outdoor communication terminal hardware

Packaging Method

1. Tube Packing: For manual assembly / small‑batch prototype testing. Not fit for automatic SMT pick‑and‑place.
2. Tape & Reel (embossed carrier tape): Complies with EIA‑481 standard, fitted with SMT pick‑and‑place cap. Can be loaded directly onto an SMT machine for high‑volume automatic production.

Please specify packaging type at order placement.

Lead Time

• Samples: 3 working days
• Mass‑production orders: 1‑3 weeks (subject to customization complexity & material stock)

Factory Certification & Custom Service

• Certifications: ISO9001, RoHS, REACH compliant. Relevant certification documents available upon request.
• Sample Policy: Support free samples / Fast sample output
• MOQ: Standard model low MOQ; customized parts MOQ depends on tooling requirements.
• Custom service: Pin count, pin length, insulator height, plating thickness, mounting form, housing color, and special waterproof modifications are all acceptable. We provide 2D drawing, 3D STEP file for your PCB layout.

Customer Selection Guide

1. Confirm pitch: 2.0 mm, dual‑row 40‑pin, right‑angle orientation.
2. Clarify working environment: Confirm whether IP68 waterproof function is mandatory.
3. Confirm assembly process: If using SMT automatic production, select Tape & Reel with pick‑and‑place cap. Manual assembly choose Tube packing.
4. Specify plating requirement: Tin plating for general signal; gold plating for high‑reliability, high‑mating‑cycle scenarios.
5. Confirm key dimensions: mating pin length, solder tail length, plastic insulator height.
6. Request a sample for physical verification before formal mass‑order release.
7. Contact our engineering team if footprint or special modification is needed.
