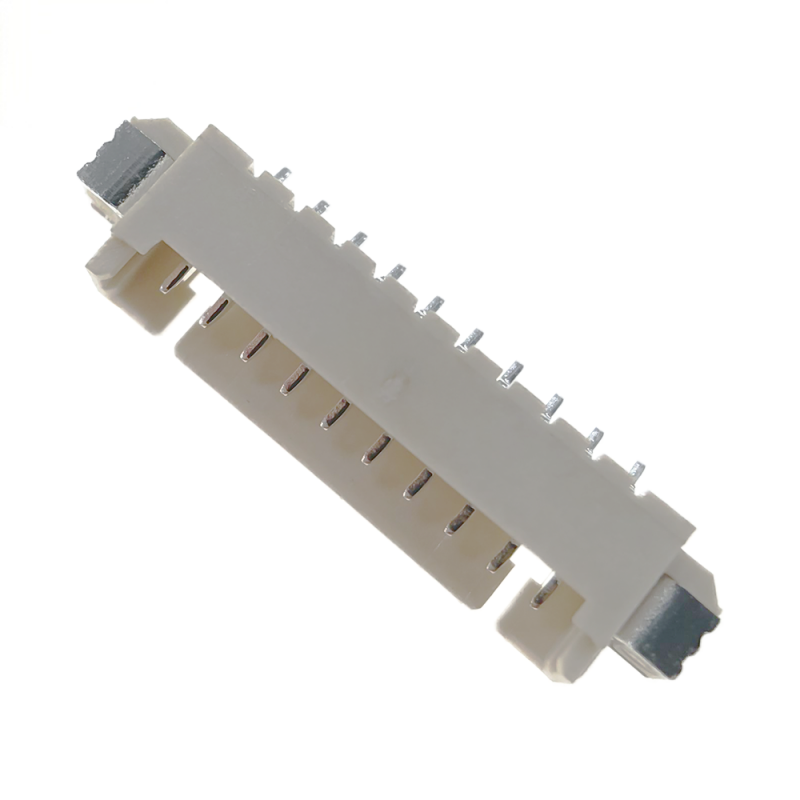

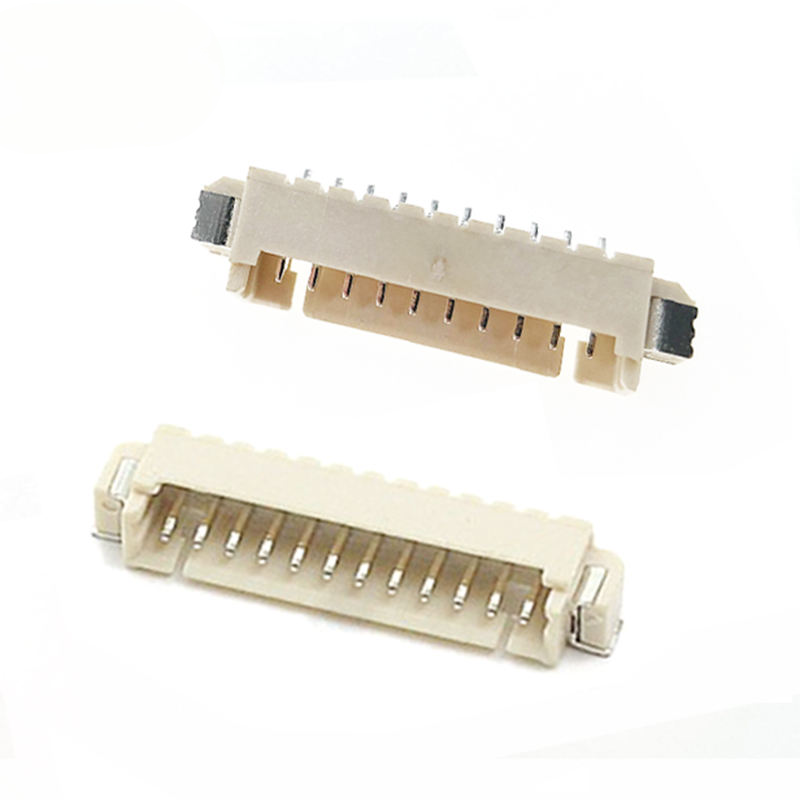

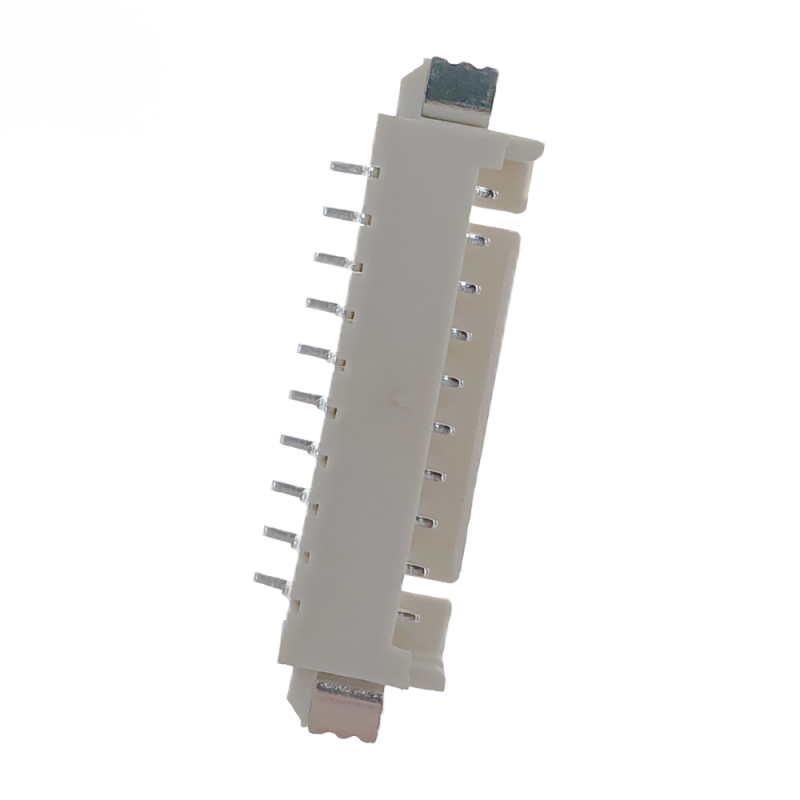

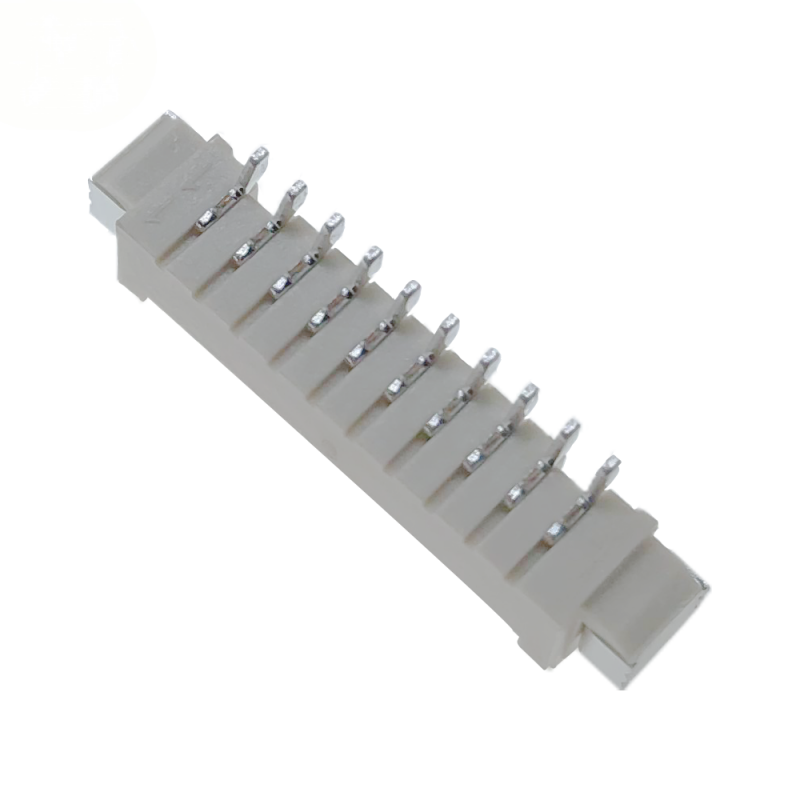

1.25mm Pitch Right Angle SMT Wafer Connector with Tin Plating for Wire-to-Board PCB Applications

• Right-angle 90° orientation, side-entry mating, saves vertical PCB clearance height
• Gull-wing SMT terminals + dual hold-down solder nails: resist shifting under vibration & reflow heat
• Polarization key built-in to eliminate reverse insertion damage to pins & harness
• High-temperature resistant insulator withstands standard SMT reflow profile
• Standard 1.25mm pitch, strictly controlled pin position tolerance for consistent mating performance
• Tape & reel packing supports full automatic SMT assembly; no manual through-hole soldering required
• Plating options: standard tin over nickel; gold flash for high-cycle / anti-oxidation requirement
• RoHS compliant, halogen-free option available upon request

1. PCB Anti-shift design: Dual hold-down solder nails, avoid floating / offset during high-volume SMT reflow; many competitors omit full hold-down structure for cost-down.
2. Strict pin co-planarity control: Reduce intermittent contact risk after soldering, critical for compact IoT / wearable devices.
3. Clear polarization geometry: Physical key prevents reverse plug-in; avoids field-return failure caused by human assembly error.
4. Flexible plating solution: Standard tin for cost-sensitive mass production; gold flash for high-vibration / high-humidity working environment.
5. Stable supply for 2-10Pin mainstream positions: Ready stock for common pin counts; support short-lead-time volume order; functional cross-reference to famous brand 1.25mm wafer series without long OEM lead-time.
6. Document support: Provide 2D drawing, PCB footprint suggestion, test report for engineer evaluation & BOM review.

• Consumer Electronics: Small household appliances, smart home sensors, wearable devices
• IoT & Smart Module: Wireless sensor modules, gateway auxiliary signal connections
• Medical Portable Devices: Low-signal internal wiring for portable medical equipment
• Industrial Control: Small PLC auxiliary IO, sensor internal interconnection
• Lighting & Display: LED driver module, small LCD auxiliary signal wiring
• Office Equipment: Compact printer, scanner internal wire-to-PCB connection

1. Confirm pin count: select 2-4-6-8-10Pin according to your signal / power channel quantity.
2. Confirm mounting: This model is Right-Angle SMT, not vertical TH or vertical SMT header. Check enclosure height clearance before PCB layout.
3. Plating choice:
   • Tin over nickel: General indoor static application, cost-optimized.
   • Gold flash: For high-humidity, vibration environment, frequent mating cycles.
4. Wire matching: Match with our supporting crimp terminal & housing; mixing different brand terminals may cause bad contact.
5. SMT process: Must follow recommended reflow temperature profile; prolonged over-temperature will damage plastic housing.
6. Compliance: Notify us if you need halogen-free or special certification documents for end-product CE / UL submission.
7. Sample evaluation: Request engineering samples before mass BOM adoption to verify mating & PCB fit.
