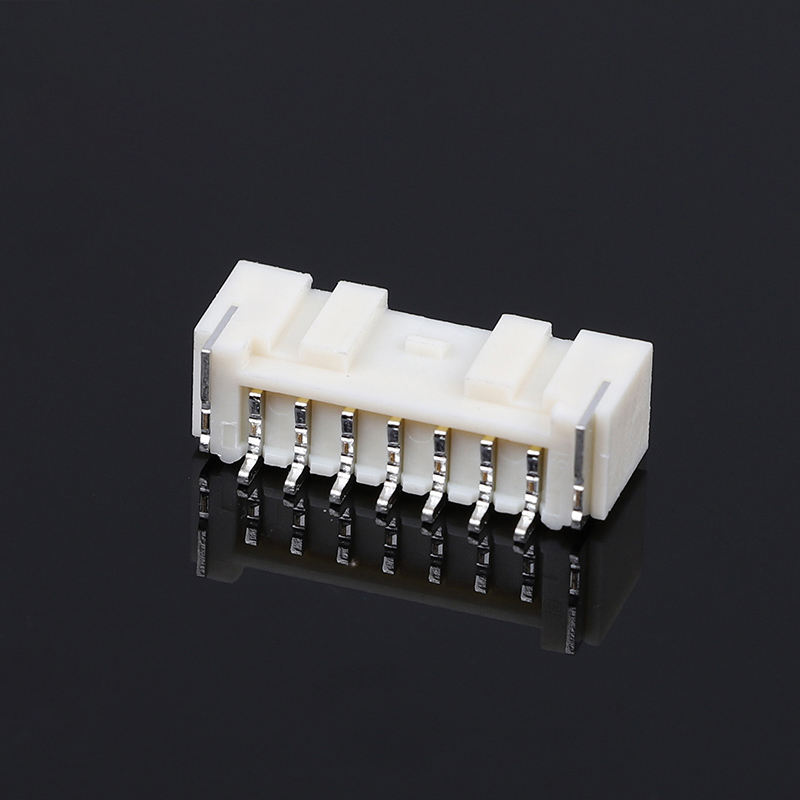

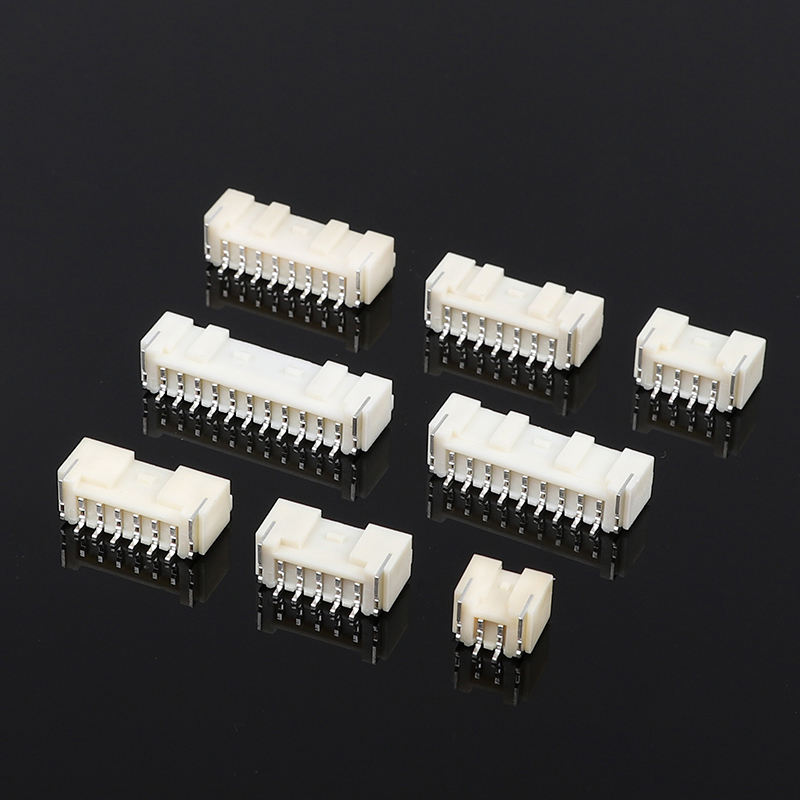

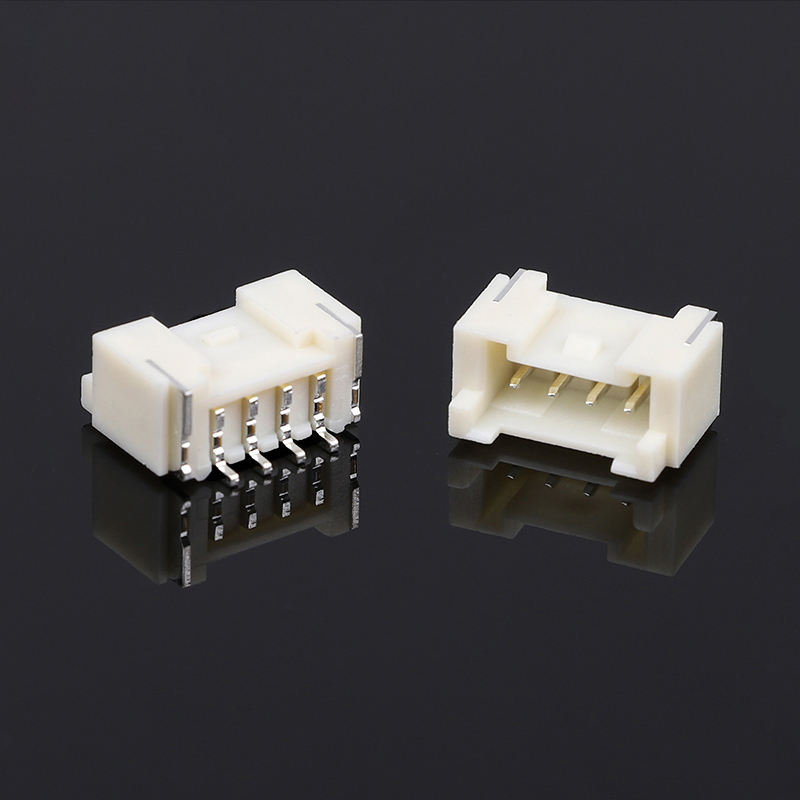

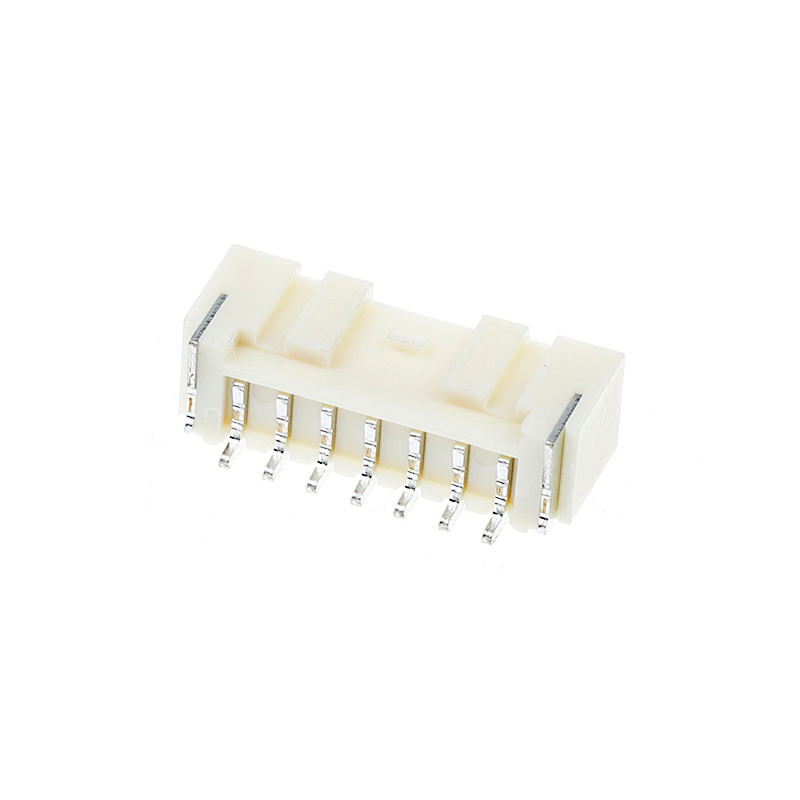

Taped PA/PAE 2.0MM Pitch Horizontal SMT2P-16P LED Lighting Board End Connector
Product Highlights
2.0 mm pitch horizontal SMT wafer header, tape‑and‑reel packaged, 2‑16 positions, optimized for LED lighting PCB assembly. High‑temperature resistant housing, stable contact performance, fully compatible with SMT high‑speed auto‑mounting, cuts production defect rate for lighting modules.
Product Technical Specifications
General Mechanical Parameters
| Item |
Specification |
| Pitch |
2.0 mm |
| Position Range |
2 ‑ 16 P |
| Mounting Type |
Horizontal / Right‑Angle SMT Surface Mount |
| Packaging |
Embossed tape & reel for SMT auto‑assembly |
| Mating Cycles |
300 cycles minimum |
| PCB Thickness Suggestion |
1.6 mm |
| Plating Option |
Tin‑plated (standard); Gold‑plated (optional) |
Material & Electrical Characteristics
| Item |
Specification |
| Housing Material |
High‑temperature PA9T / PA10T, UL94‑V0 |
| Contact Material |
Phosphor Bronze |
| Rated Current |
3 A per pin |
| Rated Voltage |
250 V AC/DC |
| Initial Contact Resistance |
≤ 15 mΩ |
| Contact Resistance After Environmental Test |
≤ 25 mΩ |
| Insulation Resistance |
≥ 1000 MΩ |
| Withstanding Voltage |
800 V AC, 1 min, no breakdown |
| Operating Temperature |
‑25 ℃ ~ +85 ℃ |
Environmental & Soldering Guide
| Item |
Specification |
| SMT Reflow Peak Temp |
Max 260 ℃, dwell ≤ 10 s |
| Storage Condition |
Temperature ‑10 ℃ ~ +40 ℃, Humidity 40‑70 %RH, sealed reel |
| Environmental Resistance |
Resists common indoor lighting module thermal‑cycle stress; NOT for direct outdoor waterproof exposure without extra enclosure |
| SMT Suggestion |
Avoid excessive solder paste volume to prevent tin‑bridge between adjacent pins |
Product Features
- 2.0 mm standard pitch, positions: 2‑16 circuits, single‑row horizontal right‑angle SMT mounting
- Tape‑and‑reel emboss packaging, directly applicable to high‑speed SMT pick‑and‑place equipment
- UL94‑V0 high‑temperature‑resistant insulator, tolerates SMT reflow soldering profile
- Phosphor‑bronze contact with tin/gold plating options, low stable contact resistance
- Built‑in polarisation key, prevents reverse‑mating assembly mistakes
- Optimised footprint for LED PCB layout, reduces solder‑bridge risk during mass production
- Multiple pin count options, supports signal & low‑power transmission for lighting modules
Product Advantages
- Mass‑production friendly: Tape‑reel SMT supply eliminates manual placement, improves throughput for lighting OEMs, lowers assembly‑related defects.
- Lighting‑oriented optimisation: Horizontal low‑profile mounting preserves vertical space inside slim LED luminaires.
- Cost‑performance balance: Tin‑plated version meets most LED lighting requirements; gold‑plated variant available for high‑vibration or long‑lifespan projects.
- Anti‑mis‑mating design: Polarisation key avoids wrong‑direction plug‑in on production line.
- Stable electrical performance: Controlled contact impedance reduces intermittent connection risks for LED module failures.
- Flexible pin‑count selection: 2‑16P covers small‑size indicator lights to multi‑channel lighting driver boards.
Application
- LED Lighting: panel lights, strip‑light modules, downlights, cabinet lighting, smart luminaire driver boards
- Consumer Electronics: small home appliances, display modules
- Industrial Control: sensor PCBs, compact control units
- Smart Home: IoT lighting controllers, indoor smart device internal wiring‑to‑board connection
FAQ
1. Q: Do you have a catalogue? Can you send me the catalogue to check all your products?
A: Yes, you can contact us online or send an Email to get the catalogue.
2. Q: I can't find the product in your catalogue, can you make this product for me?
A: Our catalogue shows most of our products, but not all. Just let us know what product you need, and how many you want. If we do not have it, we can also design and make a new mould to produce it. For your reference, making an ordinary mould will take about35-45 days.
3. Q: Can you provide a sample? Are these samples free?
A: Yes, we provide 5-10 pcs of connector free samples for testing. But you have to pay for the shipping cost
4. Q: What about your delivery time?
A: Stock goods are delivered within 1 day; customized goods are delivered within 5-7days
5. Q: How to ship my order?
A: For small packages, send them by Express, such as DHL, FedEx, UPS, TNT, EMS. That's Door-to-Door service. For big packages, we can send them by Air or by sea. We use standard export cartons. We are responsible for any product damage caused during delivery.
6. Q: What kind of payment do you accept? Can I pay RMB?
A: Weaccept T/T(Wire transfer), Western Union, and PayPal. Please make sure that we can receive the same amount as the Invoice. And you can pay in RMB. No problem.
7. Q: How about your company's quality control
A: Strictly obey ISO9001, IQC, OQC, IPQC, QA occupy 10% of our Quality department. All of our products will be tested by CCD.
8. Q: I need your price list of all your products. Do you have a price list?
A: We do not have a price list of all of our products. Because we have so many items, it's impossible to make all of their prices on a list, and the prices are always changing because of the material cost and quantity. And you can give us a list of all of the items you need; we will confirm carefully one by one and give you a specification and price list
9. Q: Can you make customized products and customized packing?
A: Yes. We have made a lot of customized
products for our customers formerly (mainly wire harnesses). About customized packing, there is no problem for we put your logo or other information on the package. Just have to point out that it incurs additional cost.
10. Q: What certificates do you have?
A: CE, CQC, UL, ISO9001, ISO14001, IATF16949, ISO45001, QC080000, etc.
