MX1.5mm Pitch B Type Horizontal Tape Inner Buckle SMT Moisture Resistant Light Lamp WT150BW Automotive Adapter Connector 100V
Product Highlights

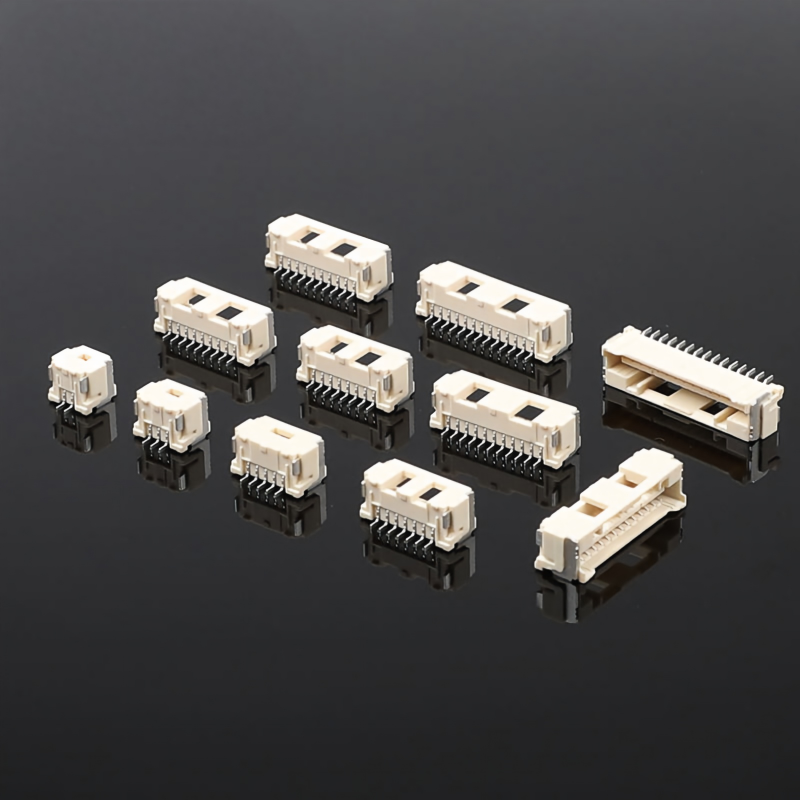

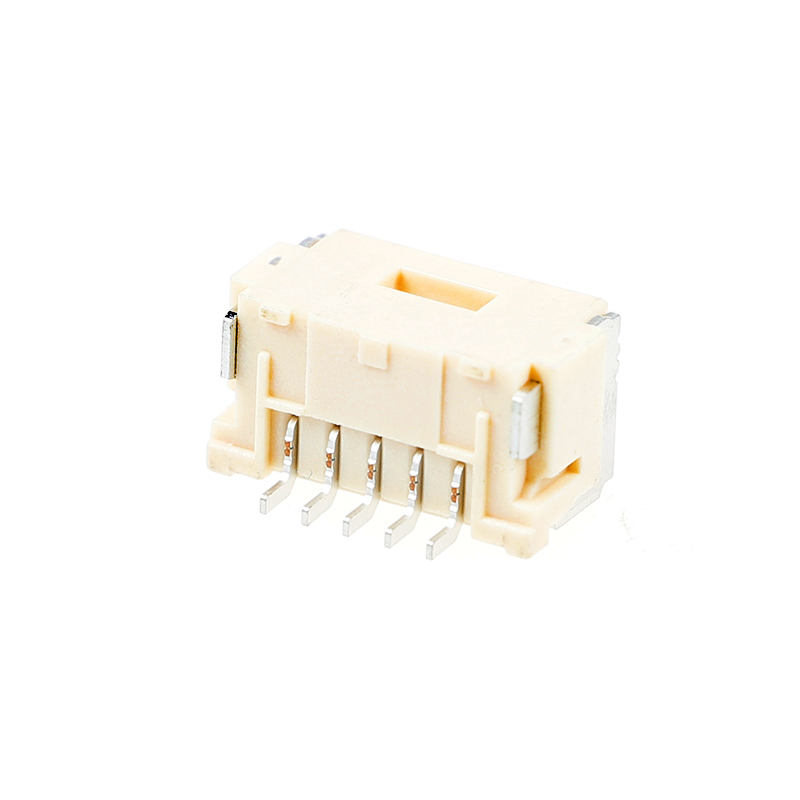

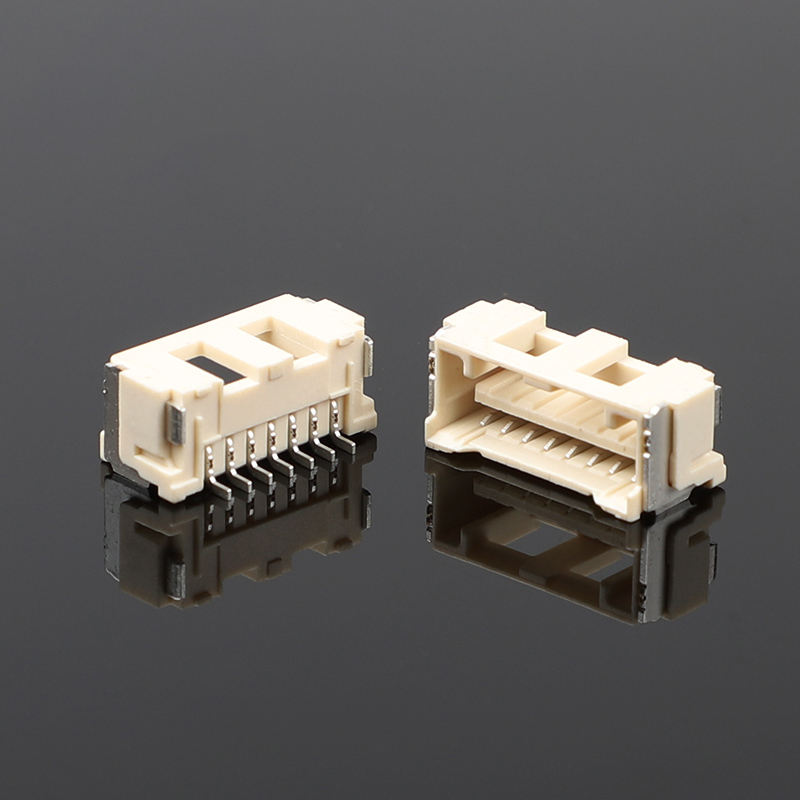

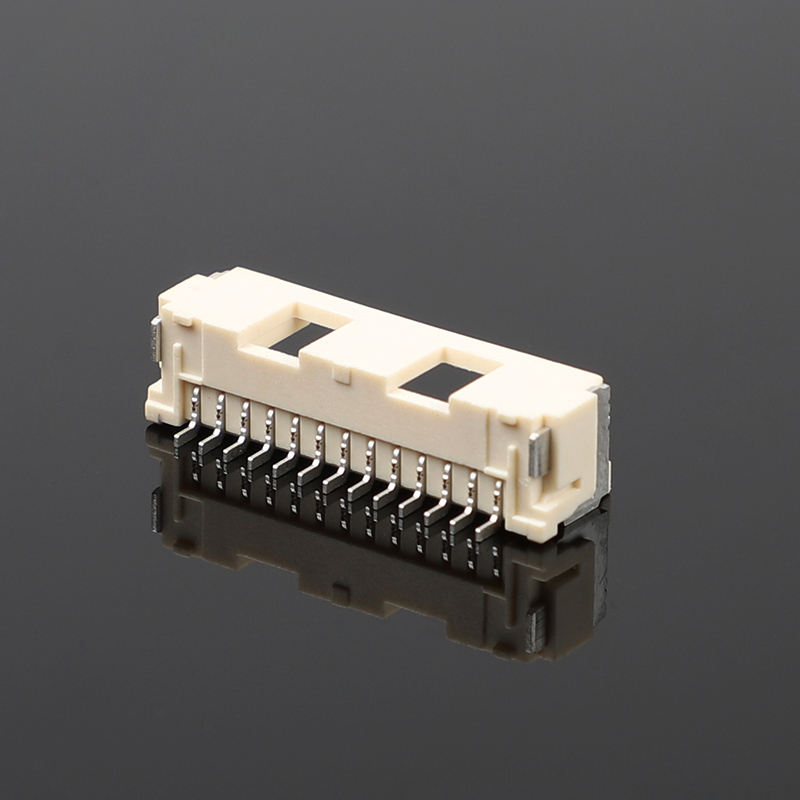

- 1.5 mm pitch B‑type horizontal SMT header, inner‑buckle locking anti‑vibration design for automotive lighting & signal connection
- Tape‑and‑reel SMT package, fully compatible with high‑speed SMT assembly lines
- Moisture‑resistant housing material, stable performance under humid vehicle cabin environment
- Rated 100 V AC/DC, compact footprint, pin counts 2‑15P customizable
- Automotive‑grade material, RoHS compliant, cost‑effective alternative for mainstream MX1.5 series
Product Technical Specifications
General Mechanical Parameters
| Item |
Specification |
| Pitch |
1.5 mm |
| Mounting Type |
Horizontal / Right‑Angle SMT |
| Locking Method |
Inner‑buckle lock |
| Available Pin Count |
2‑15 P single row |
| Mating Cycles |
Min 30 cycles |
| Applicable PCB Thickness |
1.6 mm‑2.0 mm |
| Packaging |
Tape & Reel SMT |
Material & Electrical Characteristics
| Item |
Specification |
| Housing Material |
High‑temperature‑resistant PA9T, UL94V‑0 |
| Terminal Material |
Phosphor Bronze, Ni underlayer + Sn plating |
| Rated Voltage |
100 V AC/DC |
| Rated Current |
2 A per pin |
| Contact Resistance |
≤40 mΩ (max) |
| Insulation Resistance |
≥500 MΩ |
| Withstand Voltage |
500 V AC, 1 min no breakdown |
Environmental & Soldering Guide
| Item |
Specification |
| Operating Temperature |
‑25 ℃ ~ +85 ℃ (including current‑rise temperature) |
| Moisture Resistance |
Tolerate high‑humidity cabin environment, non‑waterproof |
| Reflow Soldering Profile |
Peak temp 250 ℃ max, follow SMT standard reflow curve |
| Storage Condition |
Dry‑bag packing, avoid moisture absorption before SMT reflow |
| Compliance |
RoHS |
Product Features
- Built‑in inner‑buckle locking structure, audible click‑in mating, effectively prevents disconnection under vehicle vibration & shock
- Horizontal right‑angle SMT mounting, saves vertical PCB space, ideal for side‑direction wiring layout
- Moisture‑resistant, high‑temperature‑resistant housing, adapts to humid interior & lamp‑housing working environment
- Tape‑and‑reel packaging, supports automatic SMT placement without manual operation
- Multi‑pin coverage: 2P‑15P single row, flexible pin‑count selection for different signal‑channel requirements
- Reinforced SMT hold‑down tabs improve soldering mechanical retention on PCB
- Polarization keying to avoid mis‑mating during assembly
- RoHS compliant, suitable for automotive indirect‑safety electronic assemblies
Product Advantages
- Anti‑vibration inner‑buckle lock: Compared with ordinary non‑locking SMT wafer, it avoids intermittent signal failure caused by vehicle vibration, reducing after‑sales risk for lamp products.
- Moisture‑resistant housing: Better humidity adaptability than general PA66 material, suitable for semi‑sealed lamp cavity environment.
- Full SMT manufacturability: Tape‑reel supply, no manual insertion needed, reduces assembly labor cost for mass production.
- Compact horizontal layout: Horizontal outgoing‑wire design saves PCB height, fits narrow‑space lamp‑board layout.
- Cost‑effective cross‑reference: Drop‑in alternative for mainstream MX1.5 B‑type series, supports custom pin‑count & sample testing.
- Stable solder performance: Reinforced hold‑down tabs reduce solder‑joint crack risk under mechanical stress.
Application
- Automotive: Automotive LED head‑lamp / taillight / ambient‑light modules, interior electronic control units, vehicle sensor signal connection
- Lighting: Commercial LED lighting module, smart lamp driver board
- Industrial electronics: Small‑size sensor modules, compact control boards
- Consumer electronics: Household smart equipment, small‑size wire‑to‑board signal connection
