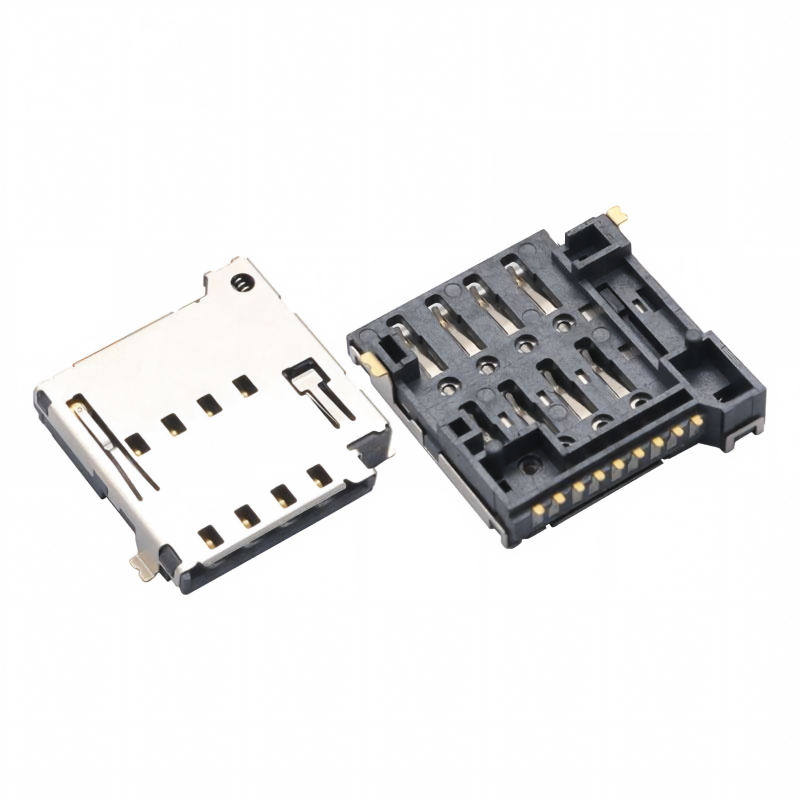

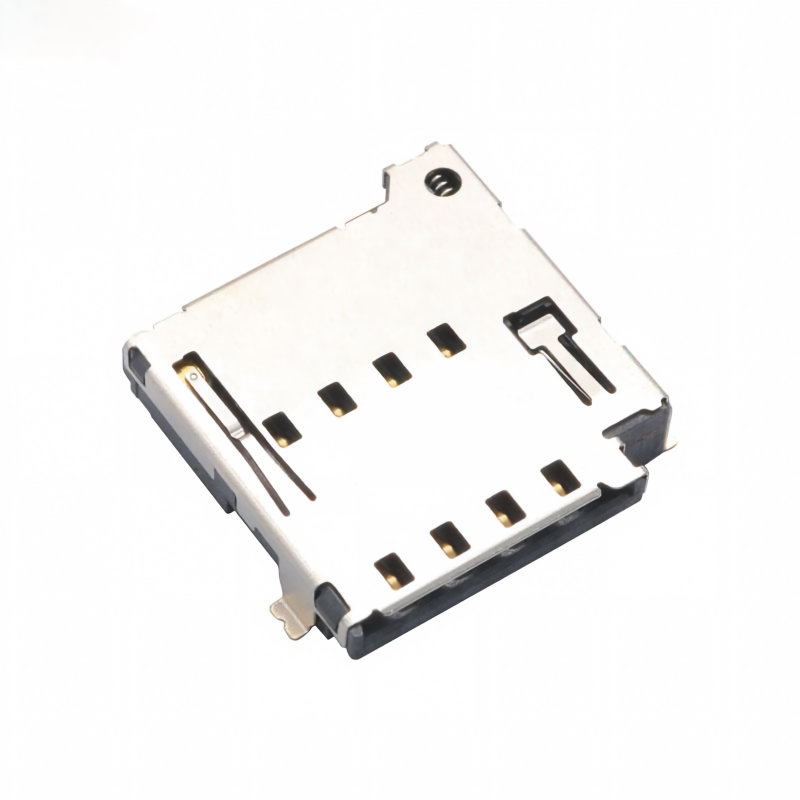

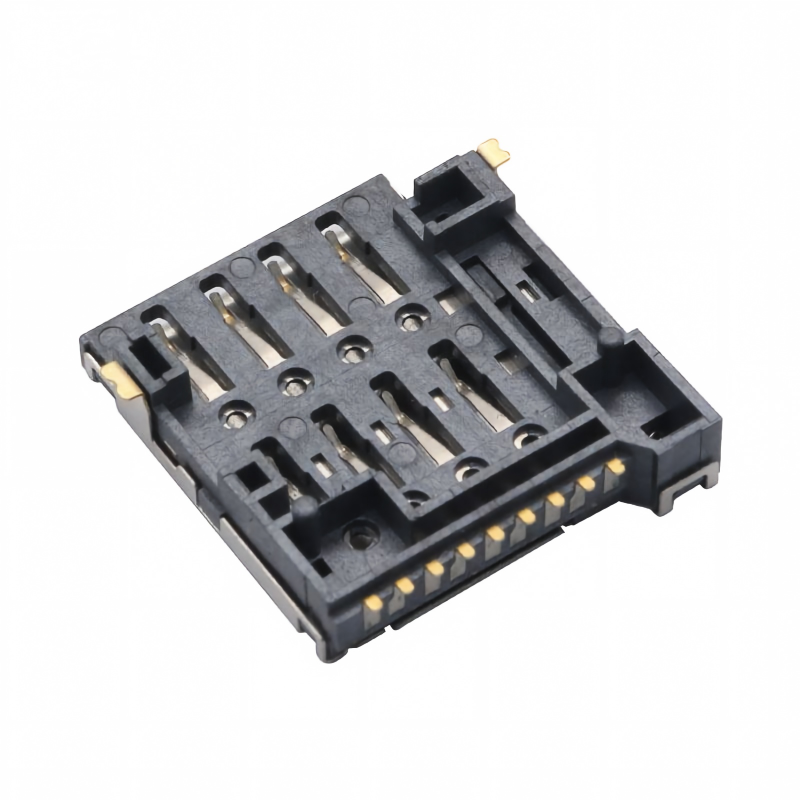

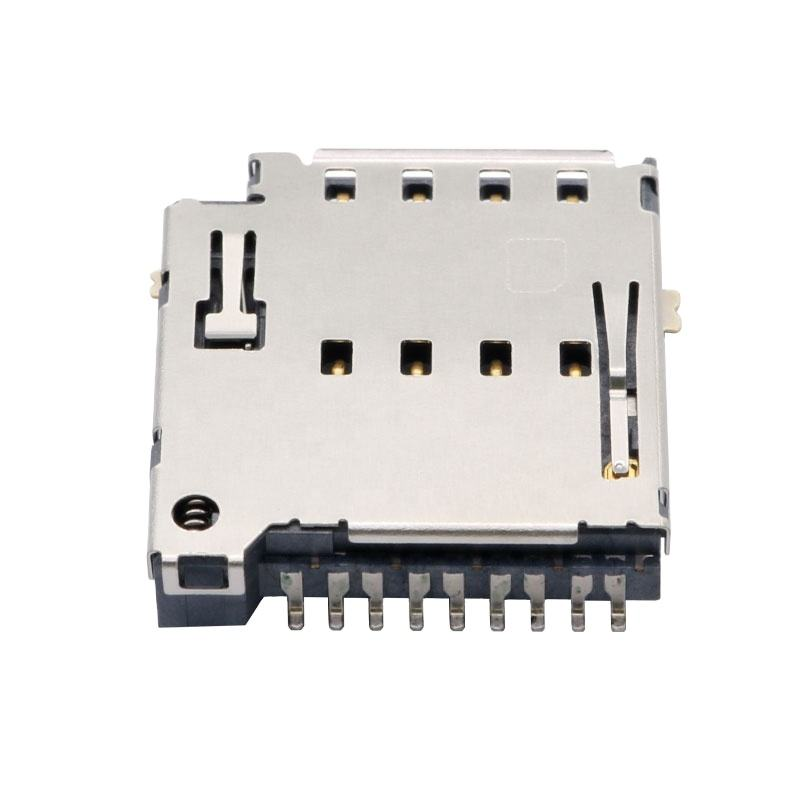

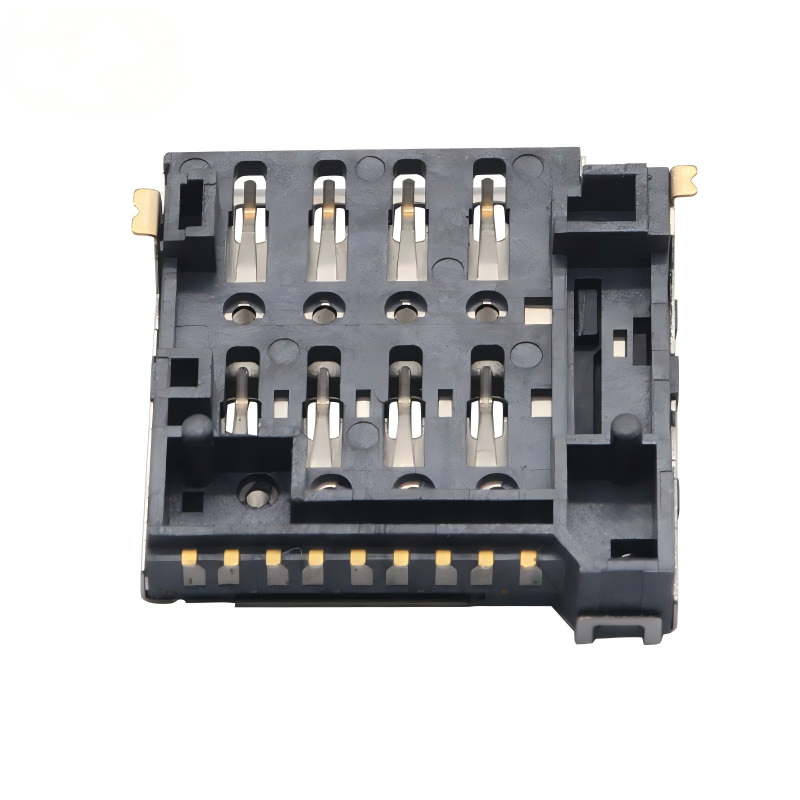

Anti-Crush Stainless Steel Shell 5000 Insertions 8 Pin Micro SIM Socket Connector

Molex Anti-Crush Stainless Steel Shell 5000 Insertions 8 Pin Micro SIM Socket Connector

Product Description

This 8-Pin Micro SIM Socket Connector is designed for compact PCB applications that require secure Micro SIM card retention, repeated card insertion and removal, and efficient board-level integration.

The connector combines an anti-crush contact structure, stainless steel shell, gold-plated contact interface, and SMT mounting design to address common engineering concerns such as contact damage during card insertion, limited PCB space, and long-term mechanical wear.

With a 5,000-cycle durability target, this Micro SIM card connector is suitable for electronic products where SIM access may be required during installation, maintenance, field service, or repeated device configuration.

The design is particularly suitable for IoT gateways, cellular communication equipment, industrial routers, tracking terminals, smart meters, POS terminals, telematics devices, and embedded wireless products

Feature

Mechanical

• Card insertion method
• Connector height
• PCB footprint
• Shell construction
• Contact protection
• Mating-cycle requirement

Electrical

• Rated current
• Rated voltage
• Contact resistance
• Insulation resistance
• Dielectric withstand voltage

Manufacturing

• SMT compatibility
• Tape-and-reel packaging
• Reflow soldering compatibility
• PCB retention
• Component availability

Environmental

• Operating temperature
• Mechanical shock and vibration
• Corrosion resistance
• Applicable RoHS/REACH requirements

Applications

Cellular Communication Equipment

Suitable for:

• 4G/5G routers;
• cellular gateways;
• wireless communication modules;
• industrial modems;
• embedded cellular terminals.

Industrial IoT

The connector can be used in:

• IoT gateways;
• M2M communication devices;
• remote monitoring equipment;
• industrial controllers;
• smart metering systems.

Automotive & Telematics

Potential applications include:

• vehicle tracking terminals;
• telematics control units;
• fleet management devices;
• connected vehicle gateways;
• roadside communication equipment.

For automotive applications, however, the exact connector temperature, vibration and qualification requirements should be confirmed before design-in.

POS & Payment Equipment

Micro SIM connectivity can be used in:

• mobile POS terminals;
• payment terminals;
• vending machines;
• unattended payment systems;
• connected retail equipment.

GPS & Tracking Devices

The compact Micro SIM interface is suitable for:

• GPS trackers;
• asset tracking terminals;
• personal tracking equipment;
• logistics monitoring devices.

Smart Meters & Smart Devices

Typical applications include:

• electricity meters;
• water meters;
• gas meters;
• smart home gateways;
• remote monitoring devices.
