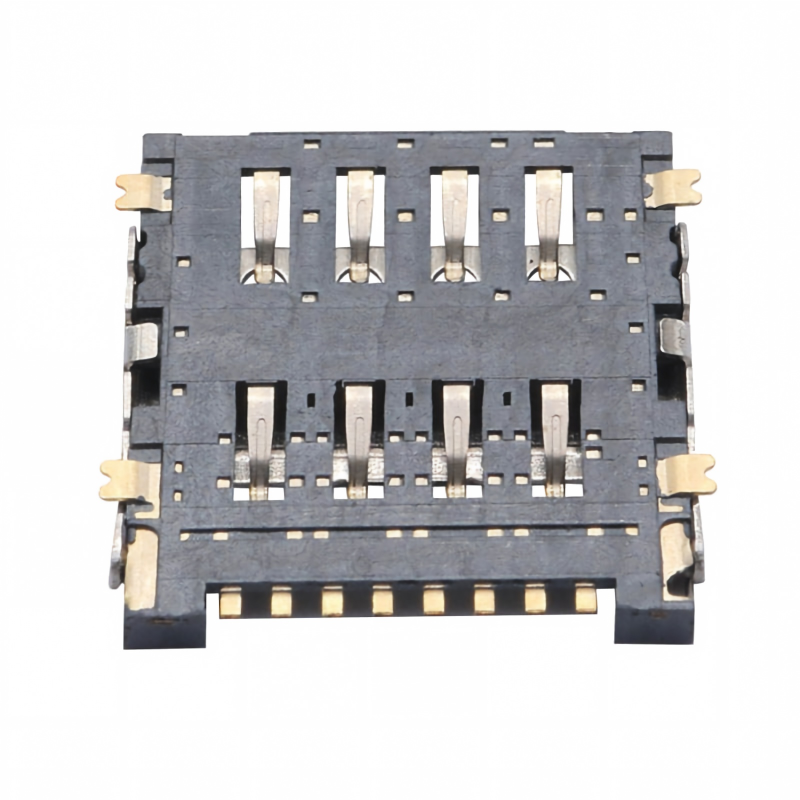

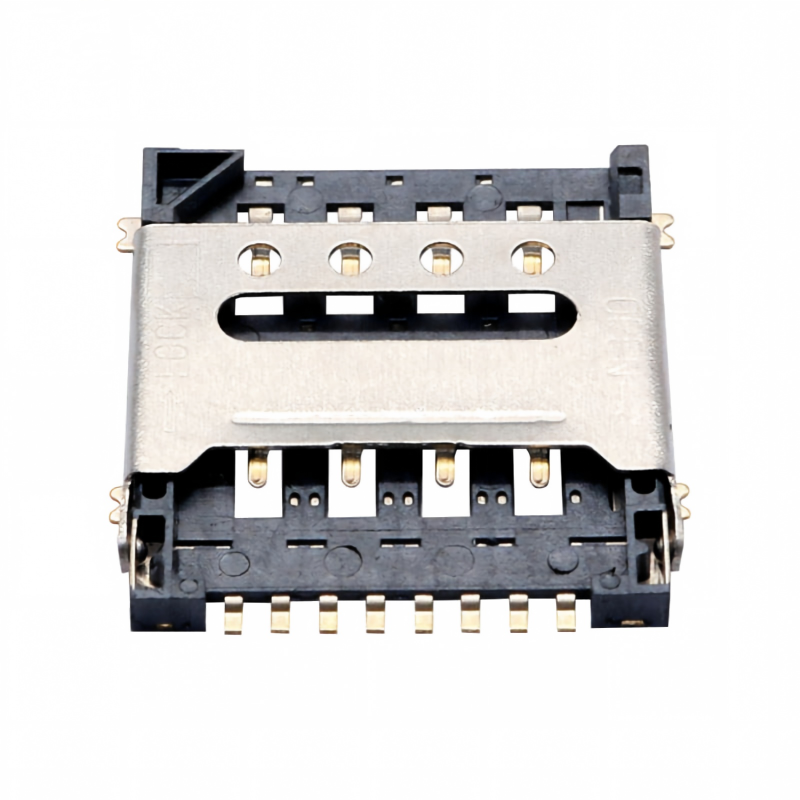

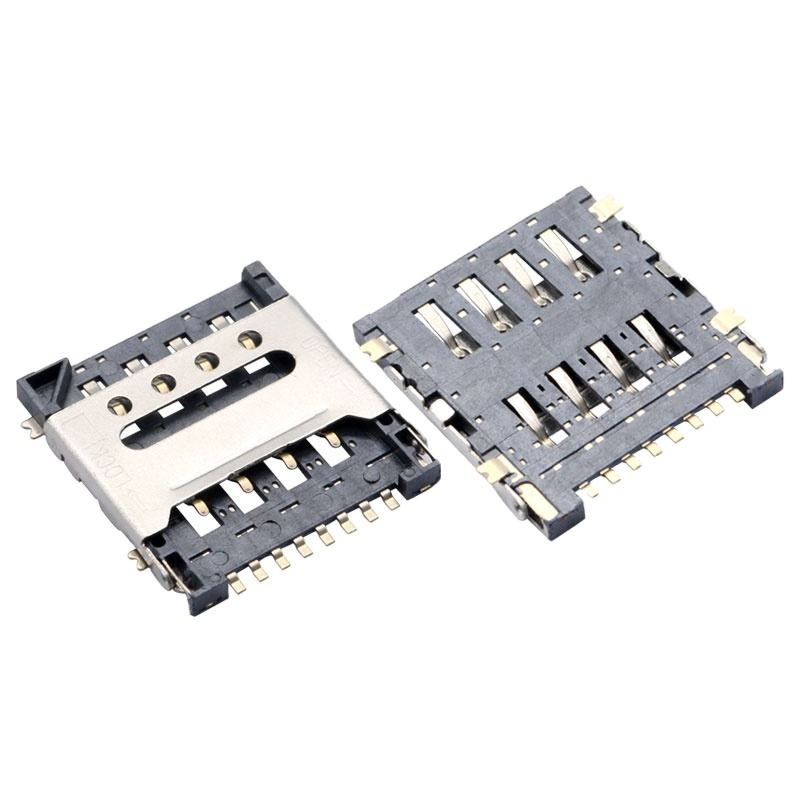

Micro SIM Card Socket 8 Pin H1.5 Flip Type Female Connector SUS Shell Copper Alloy

Micro SIM Card Socket 8 Pin H1.5 Flip Type Female Connector SUS Shell Copper Alloy

Micro SIM card socket 8 pin

Flip type female connector SUS shell

Copper alloy card connector

Place of Origin:

China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

mirco sim card connector

Contact Us
Request A Quote
Product Details
Interface Type:
SMD
Sample:
Fress
Plating:
Tin Plating
Material:
Plastic
Contact Pin Material:
Phosphor Bronze
Package:
Tape Wrapping
Contact:
Brass With Gold Plating Over 50U
Operating Voltage:
60V AC/DC
Highlight:

Micro SIM card socket 8 pin

,

Flip type female connector SUS shell

,

Copper alloy card connector

Payment & Shipping Terms
Minimum Order Quantity
1000pcs
Price
Negotiable Price
Packaging Details
Inner Package:in Reel; Outer Package: Reel In Carton
Delivery Time
5-7 Days
Payment Terms
L/C,T/T,Payyal
Supply Ability
3KK Pcs
Product Description

Micro SIM Card Socket 8 Pin H1.5 Flip Type Female Connector SUS Shell Copper Alloy



Product Description

Parameter Specification
Product Type Micro SIM Card Socket / SIM Card Connector
Card Type Micro SIM
Connector Type Female
Number of Pins 8 Pin
Structure Flip Type / Hinged Type
Mounting Type SMT / Surface Mount
Connector Height H1.5 mm
Shell Material SUS / Stainless Steel
Contact Material Copper Alloy
Rated Current 1.0 A
Rated Voltage 30 V AC/DC
Contact Resistance ≤60 mΩ
Insulation Resistance ≥1000 MΩ
Dielectric Withstanding Voltage 500 V AC / 1 min
Operating Temperature -40°C to +80°C
Durability ≥5,000 cycles
Gender Female
PCB Integration SMT PCB Mount
Application Micro SIM-enabled electronic devices

Its low-profile structure makes it particularly suitable for IoT gateways, industrial communication equipment, GPS/GNSS devices, cellular terminals, smart meters, tracking equipment, and other connected devices.

For engineers and purchasing teams, the key selection factors are not simply the number of pins, but also connector height, mounting method, shell construction, contact material, electrical rating, operating temperature, and mating durability.

Micro SIM Card Socket 8 Pin H1.5 Flip Type Female Connector SUS Shell Copper Alloy

Feature


H1.5 low profile
Suitable for compact PCB and enclosure designs.

8-pin Micro SIM configuration
Provides a conventional Micro SIM interface for embedded cellular equipment.

Flip-type construction
Supports controlled card placement and retention.

SUS metal shell
Provides a rigid protective structure around the card interface.

Copper alloy contacts
Uses a commonly adopted conductive terminal material for SIM card connectors.

SMT mounting
Suitable for PCB assembly workflows where surface-mount integration is required.

5,000-cycle durability specification
If confirmed by the final product datasheet, this provides a concrete engineering parameter for comparing mating durability rather than using an unsupported “high reliability” claim.


Applications

IoT Devices

Industrial Routers

Cellular Gateways

GPS Trackers

Vehicle Telematics

Smart Meters

Wireless Terminals

Security Devices

Remote Monitoring Equipment

Industrial Communication Systems
