1.27 MM DUAL SMT PIN HEAD Connectors 2-80p 20021121-00010C4  20021121-00010C4

Product Description

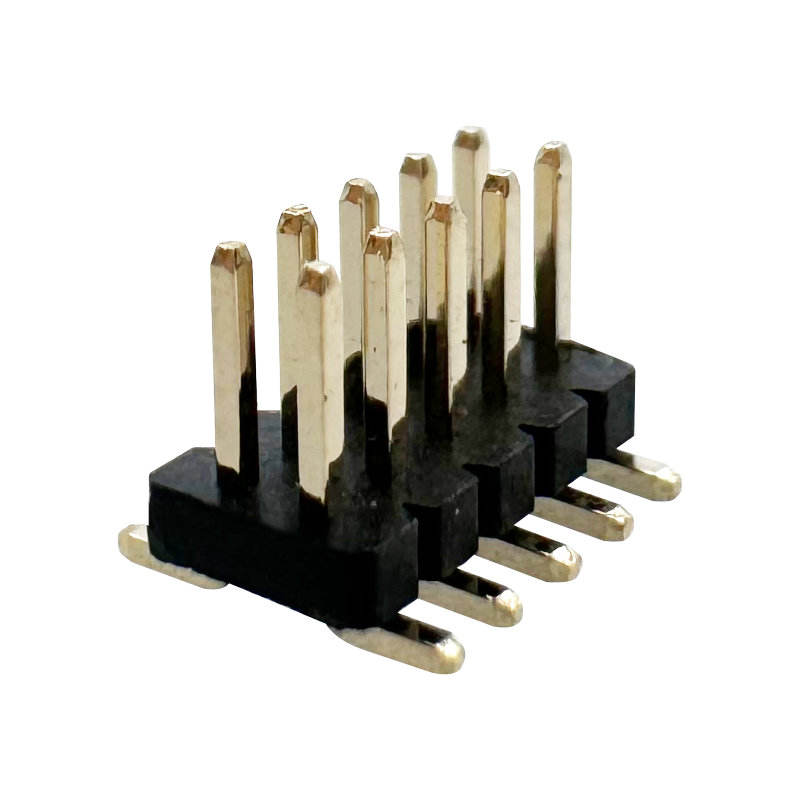

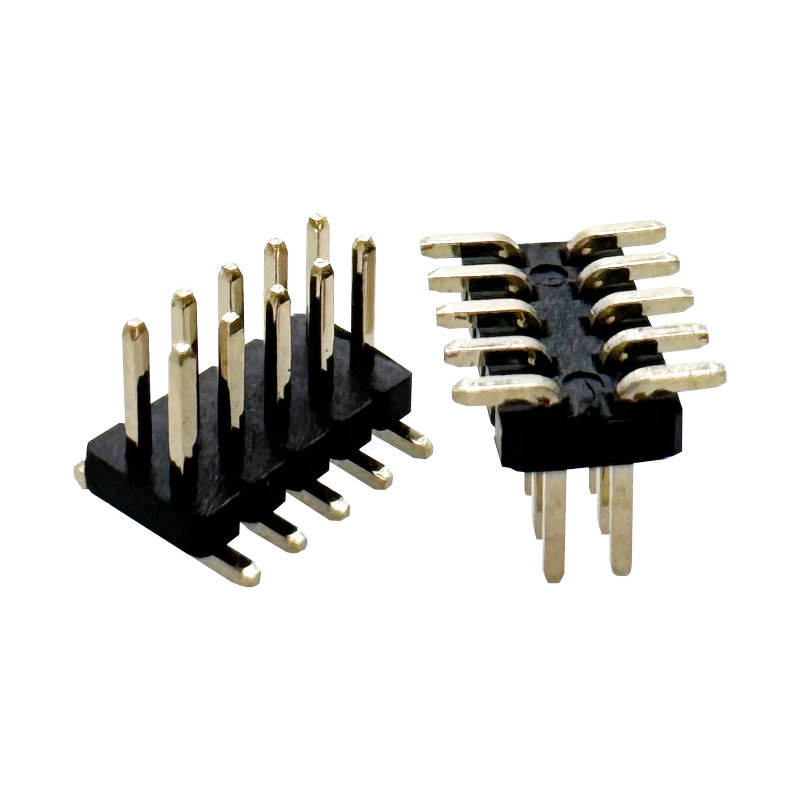

1.27 mm pitch dual-row SMT pin header designed for compact board-to-board interconnection where PCB space, automated assembly, and mating compatibility are important.

This connector features a 10-position, 2-row unshrouded configuration, copper-alloy contacts with gold plating at the mating area, and a high-temperature thermoplastic UL94 V-0 housing. With a 1.0 A contact rating, 30 mΩ maximum contact resistance, 1000 MΩ minimum insulation resistance, and -55°C to +125°C operating temperature range, it is suited to industrial, communication, instrumentation, consumer electronics, automotive, and other compact electronic assemblies.

For projects requiring different circuit counts, the broader 1.27 mm dual-row SMT pin-header category is also available in multiple positions and customized configurations depending on the mating system and PCB design.

Mechanical & Environmental Performance

Applications

Industrial Electronics

• Industrial controllers
• Embedded control boards
• Industrial instrumentation
• Automation equipment
• Sensor interfaces

Communication & Networking

• Communication equipment
• Network control boards
• Compact communication modules
• Embedded networking hardware

Automotive Electronics

• Automotive control electronics
• Electronic modules
• Sensor and instrumentation systems
• Compact control boards

Actual automotive qualification should be evaluated against the customer's required automotive standard and system-level validation requirements.

Medical & Test Equipment

• Medical electronic modules
• Measurement equipment
• Test and instrumentation systems
• Data acquisition boards

Consumer Electronics

• Smart electronic devices
• Compact control boards
• Embedded modules
• Portable electronic equipment
