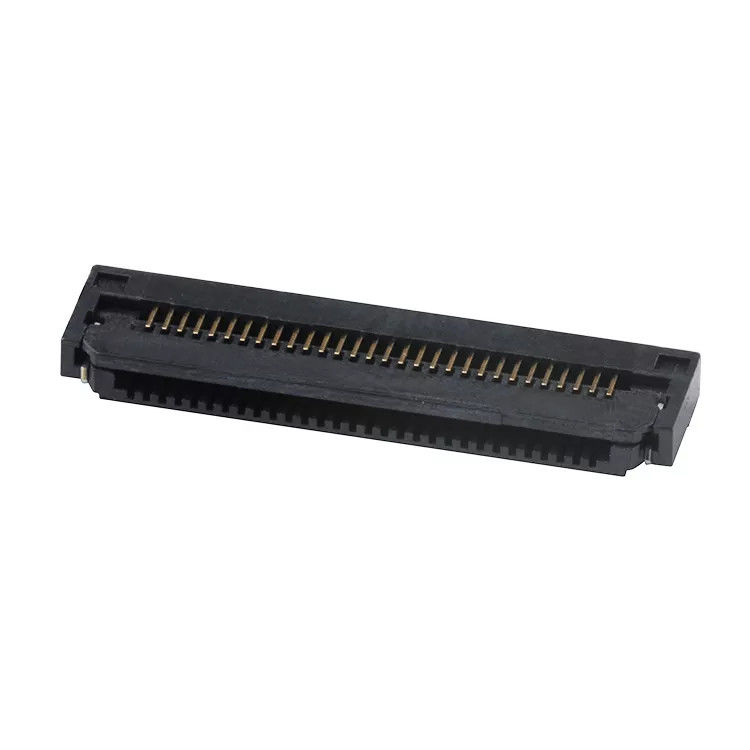

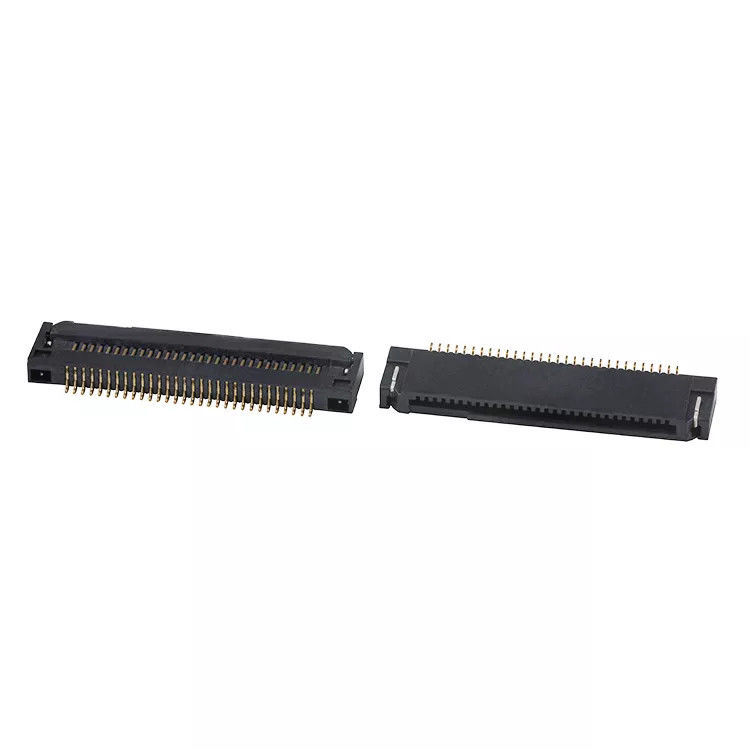

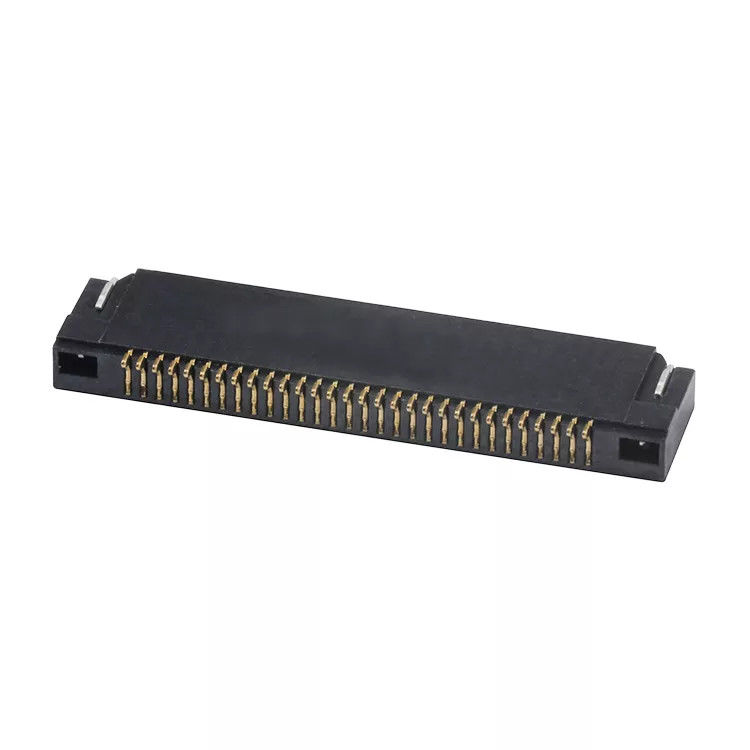

1.8H Vertical SMT Lock Type 30 Pin FPC Connector 0.5mm Pitch

1.8H Vertical SMT Lock Type 30 Pin FPC Connector 0.5mm Pitch
1.8H Vertical SMT Lock Type 30 Pin FPC Connector 0.5mm Pitch 1.8H Vertical SMT Lock Type 30 Pin FPC Connector 0.5mm Pitch 1.8H Vertical SMT Lock Type 30 Pin FPC Connector 0.5mm Pitch 1.8H Vertical SMT Lock Type 30 Pin FPC Connector 0.5mm Pitch

Large Image :  1.8H Vertical SMT Lock Type 30 Pin FPC Connector 0.5mm Pitch

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTK
Certification: CE,SGS,ROHS,ISO9001
Model Number: FPC Connector
Payment & Shipping Terms:
Minimum Order Quantity: 2000pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs

1.8H Vertical SMT Lock Type 30 Pin FPC Connector 0.5mm Pitch

Description
Housing: Thermoplastic High Temp.UL94V-O Contact: Copper Alloy
Description: Wire To Board Connector Current Rating: 1A AC(rms)/DC
Dielectric Withstanding Voltage: 500V AC/rms Insulation Resistance: 500 M Ohm Min
High Light:

0.5mm Pitch 30 Pin FPC Connector

,

ROHS 30 Pin FPC Connector

,

Lock Type FFC FPC Connector

0.5mm Pitch 1.8H Vertical SMT Lock Type 30Pin FPC Connector





Description



Insulator
Thermoplastic High Temp. UL94V-O
Contact
Copper Alloy
Fitting
Copper Alloy
Current Rating
1A AC(rms)/DC
Dielectric Withstand Voltage
500V AC/rms
Contact Resistance
≤20M ohm max(initial)
Insulation Resistance
500 MΩ min
Operating Temperature
-20°C~+85°C
Durability
10000Cycles
Certification
CE ROHS
Packaging
Tape&Reel
SPQ
2000pcs/Reel




1. FFC connector is a flexible flat cable connector.
2. It is a new type of data cable made of pet insulating material and very thin tinned flat copper wire, which is pressed by a high-tech automation equipment production line.
3. It has the advantages of softness, arbitrary bending, and folding, thin thickness, small volume, simple connection, convenient disassembly, easy to solve electromagnetic shielding (EMI).
4. FPC connector is a flexible printed circuit board. Generally speaking, it is a PCB connector made of flexible materials (folding and bending materials) for the connection between the LCD display and the drives circuit (PCB).



Competitive Advantages



1, Samples can be provided for free in 1-3 days

2, 16 year's experience in the electronic business

3, Quality certification, including ROHS, SGS, ISO9001, and UL certification

4, Strong R&D team specialized in connector and model design

5, Fast delivery, purchasing orders shipped in 3-10 days

6, Strict shipping,100% tested before delivery


Product Application


1. FFC connector is widely used in the connection between various printer printheads and mainboards, signal transmission, and board connection of products such as plotters, scanners, copiers, audio, liquid crystal appliances, fax machines, and various DVD players.
2. FPC connector is mainly used in various fields such as digital communication products, portable electronic products, computer peripheral equipment, measuring instruments, automobile electronics, etc., such as mobile phones, digital cameras, notebook computers, mid, MP3 4 5, handheld game machines, audio systems, etc.



FAQ



Q: How to place an Order?

A: 1, please tell us what model and quantity you need;

2, then we will make a PI for you to confirm the order details;

3, when we confirmed everything, can arrange the payment;

4, finally we deliver the goods within the stipulated time.



Q: Quality problems?

A: If there is any quality problem or question, we could offer technical support or return service



Q: What’s your payment term?

A: We usually accept T/T as the main payment term, and other payments can also be negotiated



Q: How about samples?

A: Samples are free, but you need to pay the freight charge. Please contact us for details.
