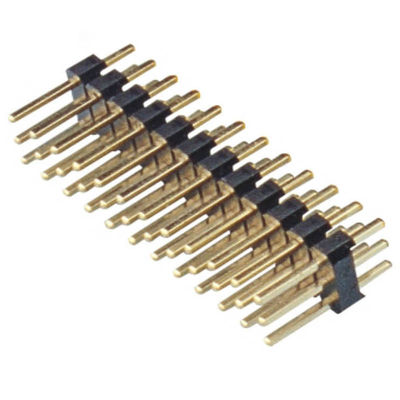

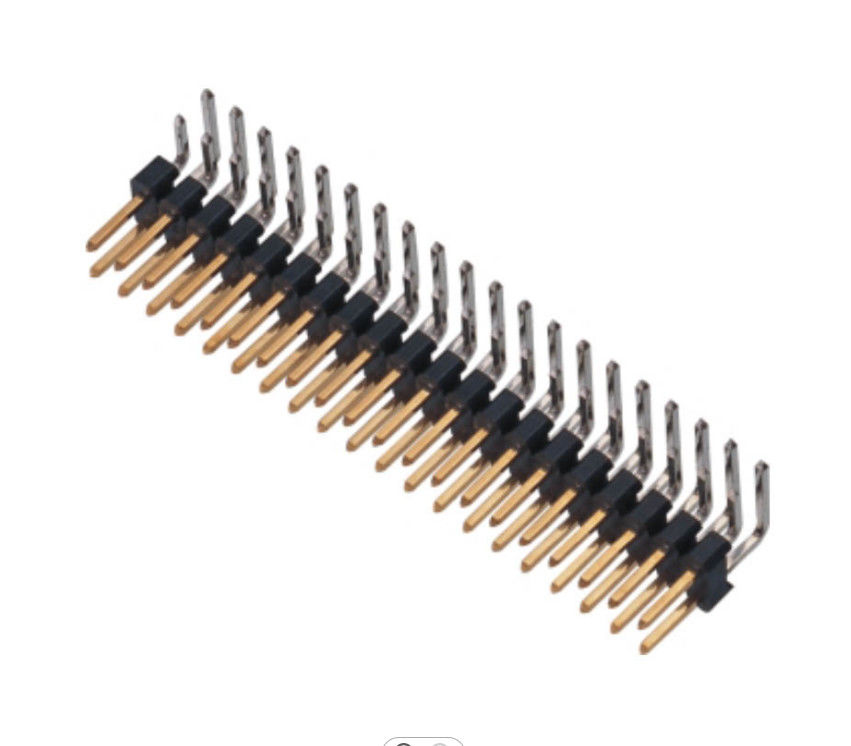

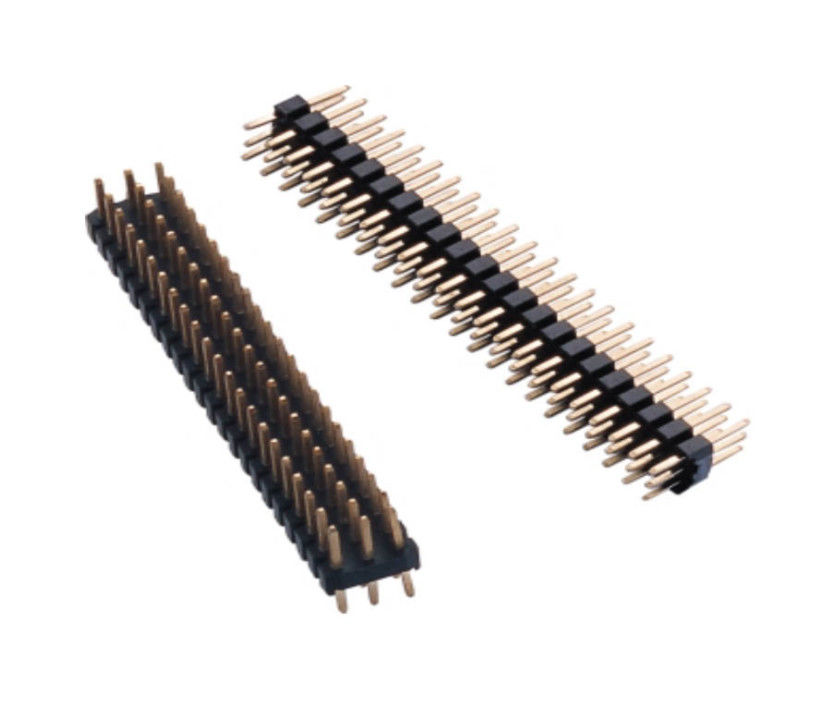

Triple Row 2.54 Mm Pin Header Dip 2 Pin Male Header Connector For PCBA Industry

Triple Row 2.54 Mm Pin Header Dip 2 Pin Male Header Connector For PCBA Industry
Triple Row 2.54 Mm Pin Header Dip 2 Pin Male Header Connector For PCBA Industry
Triple Row 2.54 Mm Pin Header Dip 2 Pin Male Header Connector For PCBA Industry Triple Row 2.54 Mm Pin Header Dip 2 Pin Male Header Connector For PCBA Industry Triple Row 2.54 Mm Pin Header Dip 2 Pin Male Header Connector For PCBA Industry Triple Row 2.54 Mm Pin Header Dip 2 Pin Male Header Connector For PCBA Industry

Large Image :  Triple Row 2.54 Mm Pin Header Dip 2 Pin Male Header Connector For PCBA Industry

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Pin header connector
Payment & Shipping Terms:
Minimum Order Quantity: 600pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 3KK pcs

Triple Row 2.54 Mm Pin Header Dip 2 Pin Male Header Connector For PCBA Industry

Description
Pitch: 2.54mm Type: Triple Row
Gender: Male Service: OEM/ODM
Plating: Gold Flash Application: PCB
High Light:

2.54Mm 2 pin male header connector

,

Triple Row 2.54 Mm Pin Header

,

PCBA 2.54 Mm Pin Header

Triple Row Pitch 2.54mm Male Pin Header Dip Type Applied in PCBA Industry





Product Description



1. Pitch:2.54mm

2. Connector Name: PCB Connector/Pin Header

3. Insulation Material:PA6T UL 94-V0

4. Contact Material: Copper Alloy

5. Mounting Type: Through Hole

6. Number of Row: Three Row

7. Contact Finish:Gold Over Nickel

8. Termination: Solder

9. Color:Black

10. Current Rating:1.0 AMP

11. Withstand Voltage:500V AC/DC

12. Contact Resistance:20mΩ Max

13. Contact Shape: Square Pin

14. Pin Length: Customization

15. Pin Available:2 Pins to 80 Pins.





Product Features



Environmental protection and high temperature resistance plastic, high conductivity of brass conductor, durable, stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.

Product function: It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.



Product Application



It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.



Classification Of Pin Header



According to pitch: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm, 5.08mm.

According to row number: single row ,dual row,three row,four row.

According to terminal shape: U type,Y type,O type.

According to number of plastic: single plastic, double plastic,three plastic.

According to structure: DIP Type,Right Angle Type,Horizontal Type SMD,Vertical SMT/SMD,U type.



How to order?



1. please tell us what type and quantity you need,we will quote you;

2. then we will make a PI for you to confirm the order details ;

3. when we confirmed everything, can arrange the payment;

4. finally we deliver the goods within the stipulated time;
