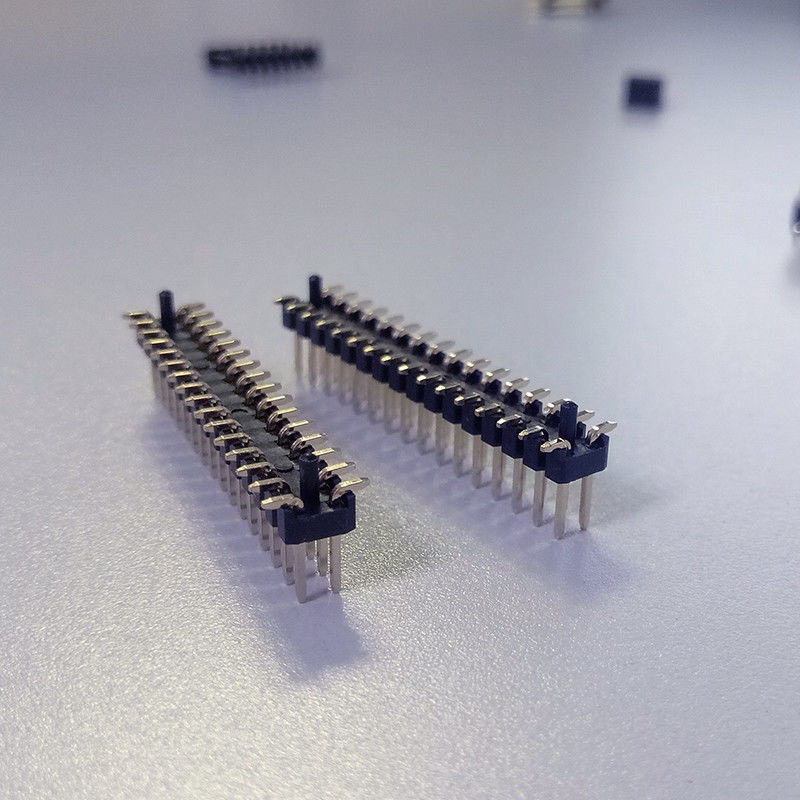

Double Row 1.27mm Pitch SMT Pin Header Connectors 40 Pin Female Header

1.27mm pitch SMT pin header connectors double row



Pin Headers provide design flexibility, production efficiency while decreasing needed equipment assets.with Horizontal, right-angle and vertical about orientation & single and dual Rows with range of 0.8mm to 3.96mm pitch.

What's the Pin Header

1. Pin header is called universal connector. Based on different designs for PCB,they choose different pitch connectors to meet.

2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm/3.96mm/5.08mm pitch pin header are featured products in our company. If you need special pin header that standard pitch couldn't satisfy, e-mail or call our sales team.

3. Generally, pin headers with suited female headers are used to finish created modules in electronic industry.

4. Regarding pin header electrical and mechanical properties, same pitch has the same function, which we have shown clearly in our data sheet.

5. Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape, which is a more robust, with a better joint and longer life, making it more expensive though. Still more and more automotive and medical industry customers choose machine pin to improve connection stability.


Category

1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;

2. According to the Height: 1.0/1.5/2.5mm;

3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;

4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);

5. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).

6. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column;

7. Number of stitches: 02 to 80;

8. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;

9. Surface treatment: gold plating 1u/3u/5u/10u and even more, thick gold, tin plating, nickel plating (1u=1uinch=1/39.37μm);


Advantages

• Small orders accepted
• Factory direct export
• With 20 years of professional production experience as a manufacturer of precision connectors
• Free samples is available
• Prompt delivery
• Green product
• Strong researching and developing team
• Experienced staff
• ISO9001,ROHS


Application

Male pin header widely used in different industry such as automotive, medical equipment, motherboard and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team
