Double Row Ejector SMT Header Connector 2.54mm 68 Pin Right Angle Pin Header

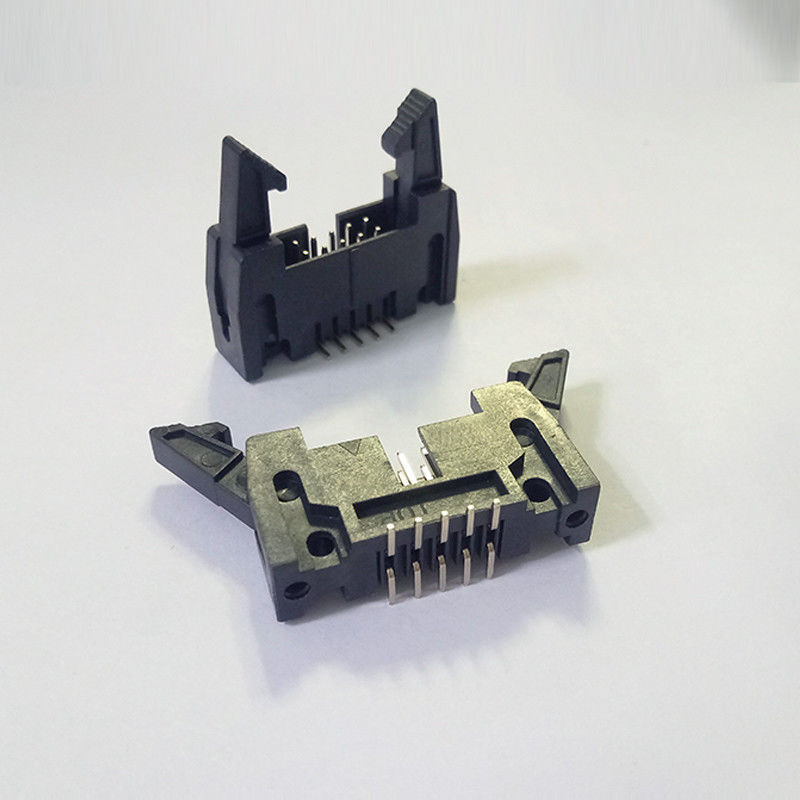

2.54mm double row SMT ejector header Pin Header 68 Pin SMT Type Right Angle Header Connector

Pin Headers provide design flexibility, production efficiency while decreasing needed equipment assets.with Horizontal, right-angle and vertical about orientation & single and dual Rows.

Description:
1. Ejector header connector is one of many connector types.
2. It is not only a European type connector, but also a variety of connector classified according to the actual use. Because its shape is similar to horns, it is called ejector header connector. Ejector header connector is a very simple internal wiring equipment.

How to use ejector header connector?

Ejector header connector usually needs to pay attention to the insertion direction, perpendicular to the insertion direction and inclination.
1. Insertion direction: when the connector is fully inserted to u = 14.2, the specified contact resistance shall be ensured.
2. Perpendicular to the insertion direction: if the printed board or fixed board mounted connector is floating mounted, the design of free and fixed board mounted connector shall provide at least 1mm adjustable displacement.
3. Inclination: the design of free and fixed plate mounted connectors allows inclination error, which is ± 4 ° in longitudinal direction and ± 4 ° in transverse direction.

Processing steps

Stamping / Injection -> pre-line inspection -> automatic machine plug terminal -> assembled back cover -> electrical test -> pressure test ->flatness test-->appearance test-->FQC test-->storage.

Main export markets

• Asia Australasia
• Eastern Europe Mid East/Africa
• North America Western Europe
• Central/South America

Packaging & Shipment

FOB Port:Shenzhen

Lead time:7 working days

Packaging: reel in carton

Payment term& Delivery

Payment Method:advance TT,T/T,L/C,Paypal etc;

Delivery details:7-10working days after having confirmed the order

Why Choose us?

• Small orders accepted
• Factory direct export
• With 20 years of professional production experience as a manufacturer of precision connectors
• Free samples is available
• Prompt delivery
• Green product
• Strong researching and developing team
• Experienced staff
• ISO9001,ROHS
