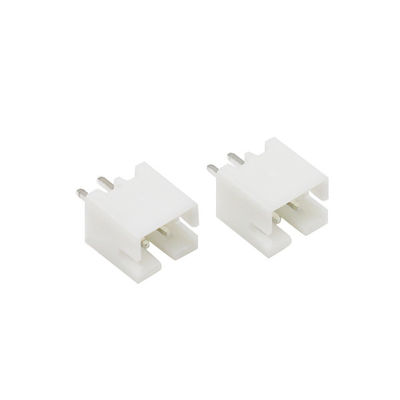

DIP 2.0mm Wafer Box Connector Straight Through Hole For PCB Board

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

DIP 2.0mm Wafer Box Connector Straight Through Hole For PCB Board

DIP 2.0mm Wafer Box Connector Straight Through Hole For PCB Board
DIP 2.0mm Wafer Box Connector Straight Through Hole For PCB Board DIP 2.0mm Wafer Box Connector Straight Through Hole For PCB Board

Large Image :  DIP 2.0mm Wafer Box Connector Straight Through Hole For PCB Board

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Wafer housing terminal
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 3KK pcs

DIP 2.0mm Wafer Box Connector Straight Through Hole For PCB Board

Description
Gender: Female Color: White
Pitch: 2.0mm Type: DIP
Pin: 2pin-50pin(customized) Name: Wire To Board
High Light:

2.0mm Wafer Box Connector

,

DIP Wafer Box Connector

,

2.0mm pcb board connector

DIP 2.0mm Wafer Box Connector straight through Hole For PCB





Product Description



Pitch 2.0mm
Mounting Type SMT
No. Of Positions 2-15p
Rated current 2.0A AC DC
Rated voltage 250V AC/DC
Contact Resistance 20m ohms MAX
Insulation Resistance 100m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -25℃ to +85℃
Withstanding Voltage 800V/1min AC
Housing Nylon66 UL94V-0
Contact Brass Tin-plated
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days
Wire AWG 24-30

DIP 2.0mm Wafer Box Connector Straight Through Hole For PCB Board 0



Drawing



DIP 2.0mm Wafer Box Connector Straight Through Hole For PCB Board 1



Product Feature



Ideal for compact applications, the 2.00mm Wire-to-Board Connector System provides electrical and mechanical reliability in a high-temperature design that meets a diverse range of industry requirements.

In microminiature wire-to-board applications, sometimes operators fail to ensure proper mating orientation, which can lead to end-product failure. The polarized ribs of the wafer Wire-to-Board Connector System prevent mismating and provide mating guidance. Often medical, automotive and home appliance designers have a real-estate space issue on their PC board because of increasing components.wafer Wire-to-Board Connector System features positive lock in a compact 2.00mm pitch design.



Packing & Shipping



1. Housing: bag /SMT Wafer:tape and reel/terminal:tape and reel .Normally,we use the carton with good quality to put all goods in it in case any damage during the delivery.

2. The way of shipment : by sea, by air, or express such as DHL/TNT/UPS etc.

3. Delivery Time: normally 3~7wroking dasy. For urgent orders ,we can shorten the delivery time accordingly.
