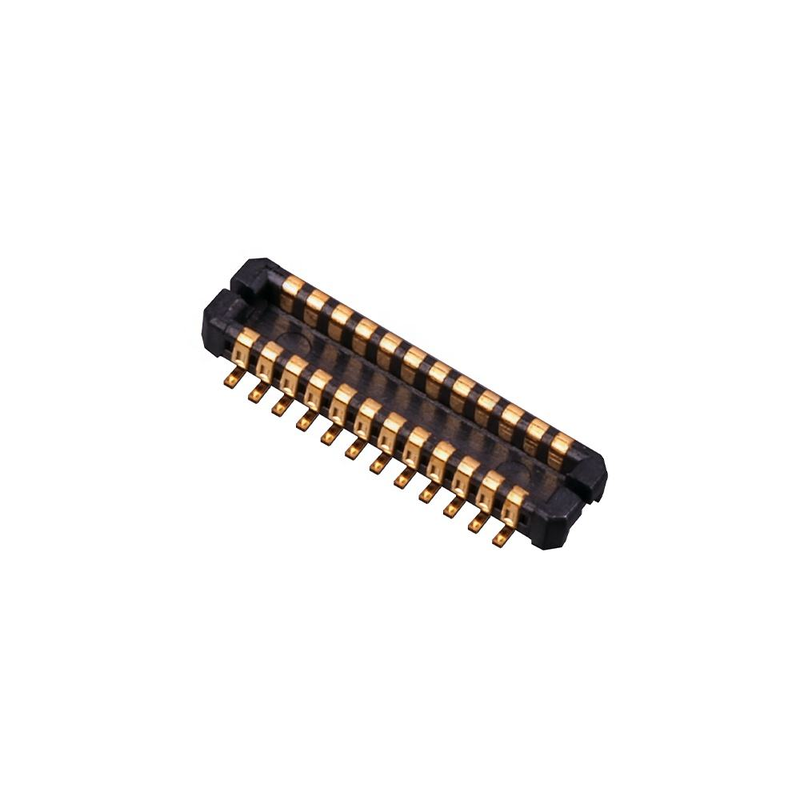

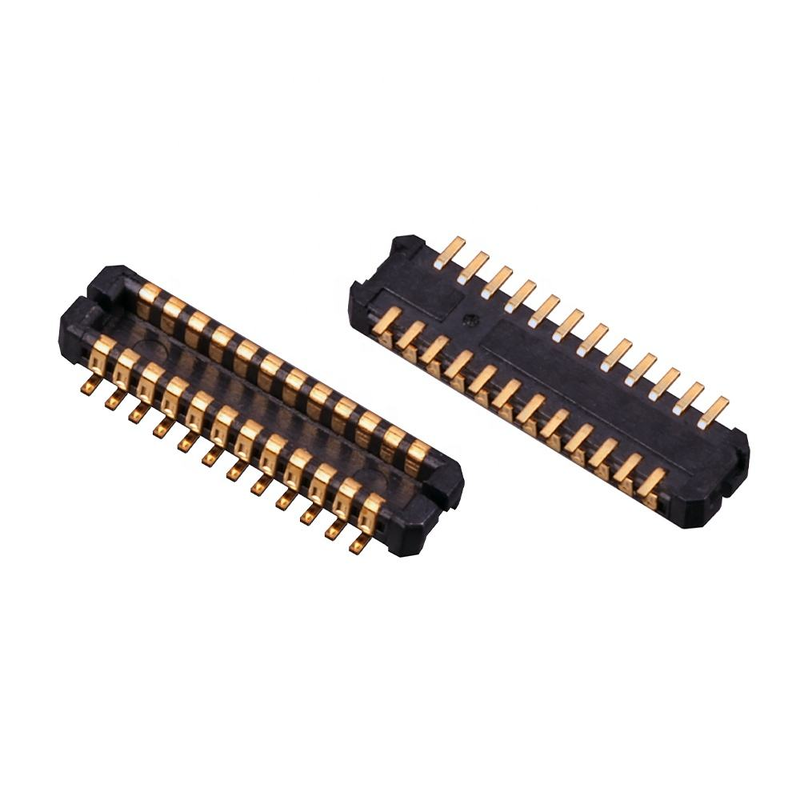

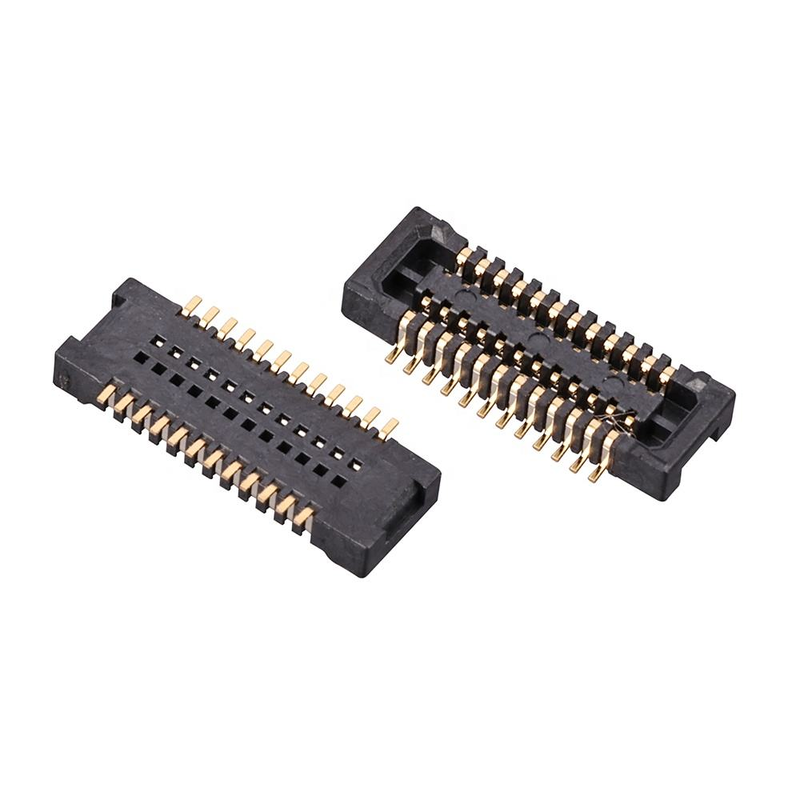

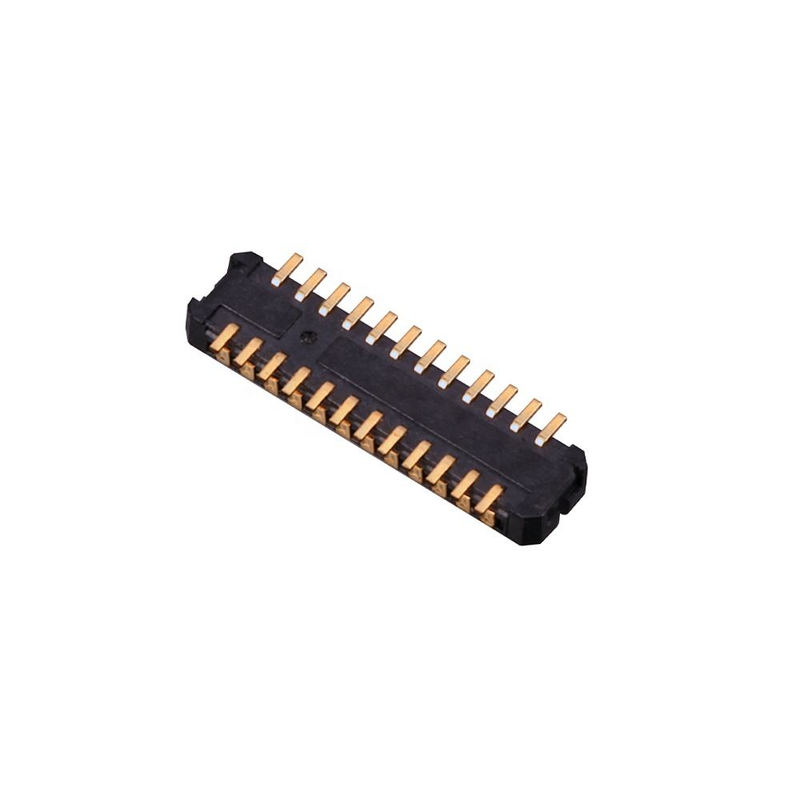

0.4mm 24P BTB Connector Cheap Price for IOT TV NB GPS Male Board Holder for Smart Home IoT Hot Sale in India, Turkey, Malaysia
Product Highlights
✅ Blind Mating & Self-Alignment Anti-misalignment Design: Tolerates PCB assembly offset, avoids housing damage from wrong insertion, reduces assembly failure rate.
✅ High-Speed Signal Transmission: Stable integrity for digital signals, works for NB, GPS, IoT module data communication.
✅ Defined Mated Height: Fixed stacking height to control PCB gap, consistent mechanical spacing for compact smart home / TV modules.
✅ SMT reel packaging, direct pick & place for automated assembly lines.
Product Description
| Category |
Item |
Spec |
| Electrical Performance |
Rated Current |
0.5A per pin |
|
Rated Voltage |
50V AC/DC |
|
Contact Resistance |
≤ 30mΩ |
|
Insulation Resistance |
≥ 1000MΩ |
|
Withstanding Voltage |
100V AC for 1min |
| Mechanical Performance |
Mating Cycles |
≥5000 cycles |
|
Mated Height |
Custom fixed stack height |
|
Insertion / Withdrawal Force |
Balanced force for repeated assembly |
| Material & Plating |
Contact Material |
Phosphor Bronze |
|
Contact Plating |
Gold plating on contact area, tin plating on solder tail |
|
Housing Material |
LCP high-temperature-resistant plastic |
| Environmental |
Operating Temp |
-40℃ ~ +85℃ |
|
Compliance |
RoHS, REACH |
| Soldering Guide |
Soldering Type |
SMT reflow soldering |
|
Reflow Temp |
Follow standard SMT reflow profile; no secondary soldering on terminals |
Cross‑Reference / Alternative
Direct footprint compatible alternative to Molex, JAE, and Hirose equivalent BTB series. Same PCB land pattern, no need to rework your PCB layout. Drop-in replacement to cut your component cost without redesign.
Note: Verify mating height and pin count before formal design-in; free samples available for layout & reliability validation.
Product Feature
- Built-in anti-dog housing structure prevents reverse mating and pin bending during manual/automatic assembly.
- Self-alignment floating guide absorbs PCB mounting tolerance, ideal for blind mating module assembly.
- High-temp LCP housing, stable during SMT reflow, no warpage.
- Dual contact beam design, maintains stable contact under shock & vibration for IoT / wireless modules.
- 10P / 24P standard pin counts, customizable pin quantity upon request.
Product Advantages
- Cost-competitive: Factory-direct pricing for IoT & smart home mass production; good price-to-performance for India, Turkey, SEA markets.
- Automation-friendly: Reel tape packaging, compatible with standard SMT pick-and-place machines.
- Short lead time: Fast sampling & mass production cycle for urgent IoT / TV project launches.
- Reliability validated: Full electrical, vibration, and temperature cycling test before shipment.
- Local market matching: Proven case in India, Turkey, Malaysia smart home & NB/GPS device projects.
Application
- Smart Home devices: smart sensors, smart switches, control modules
- IoT modules, NB-IoT wireless units, GPS positioning boards
- TV display internal PCB connection
- Small consumer electronics, handheld terminals
Packaging
Tape & Reel (Reel). Standard reel packing, compatible with SMT automatic pick-and-place machine, directly run on your production line.
Lead Time
- Samples: 3 working days
- Bulk Order: 1~3 weeks
- MOQ: Negotiable
- Free samples available; fast sample release support
Factory Certification & Custom Service
Certifications: ISO9001, ISO14001, RoHS, REACH
- MOQ: Flexible MOQ for standard items
- Sample Policy: Support free samples / fast sample release for your engineering test
- Customization: Custom mated height, plating thickness, PIN, housing color, and marking available. ODM & OEM acceptable.
Engineer Selection Guidance
- Confirm pin count: 10P or 24P; confirm required mated stacking height.
- Verify working current, signal speed and operating temperature range for your PCB.
- Check PCB footprint: our part can replace Molex/JAE equivalent; test free samples before mass layout lock.
- Assembly method: confirm SMT reflow process; follow soldering guide to avoid terminal damage.
- Vibration & shock requirement: advise us of your application environment for proper plating & reliability recommendation.
- For India / Turkey / Malaysia projects: we can provide test report and shipping document support.
FAQ
Q: Do you have a catalogue? Can you send me the catalogue to check all your products?
A: Yes, you can contact us online or send an Email to get the catalogue.
Q: I can't find the product in your catalogue. Can you make this product for me?
A: Our catalogue shows most of our products, but not all. Just let us know what product you need and how many you want. If we do not have it, we can also design and make a new mould to produce it. For your reference, making an ordinary mould will take about 35-45 days.
Q: Can you provide a sample? Are these samples free?
A: Yes, we provide 5-10 pcs of connector free samples for testing. But you have to pay the shipping cost
Q: What about your delivery time?
A: Stock goods are delivered within 1 day; customized goods are delivered within 5-7days
Q: How to ship my order?
A: For small packages, send them by Express, such as DHL, FedEx, UPS, TNT, EMS. That's Door-to-Door service. For big packages, we can send them by Air or by sea. We use standard export cartons. We will be responsible for any product damage caused during delivery.
6. Q: What kind of payment do you accept? Can I pay RMB?
A: Weaccept T/T(Wire transfer), Western Union, and PayPal. Please be sure that we can receive the same amount as the Invoice. And you can pay money in RMB. No problem.
7. Q: How about your company's quality control
A: Strictly follow ISO9001; IQC, OQC, IPQC, and QA occupy 10% of our Quality department. The CCD test is applied to 99% of our company's product applications.
Q: I need your price list of all your products. Do you have a price list?
A: We do not have a price list of all of our products. Because we have so many items, it's impossible to make all of their prices on a list, and the prices are always changing because of the material cost and quantity. And you can give us a list of all of the items you need; we will confirm carefully one by one and give you a specification and price list
Q: Can you make customized products and customized packing?
A: Yes. We have made a lot of customized
products for our customers before (mainly wire harnesses). About customized packing, there is no problem; we can put your logo or other information on the packing. Just have to point out that it will cause some additional cost.
Q: What certificates do you have?
A: CE, CQC, UL, ISO9001, ISO14001, IATF16949, ISO45001, QC080000, etc.
