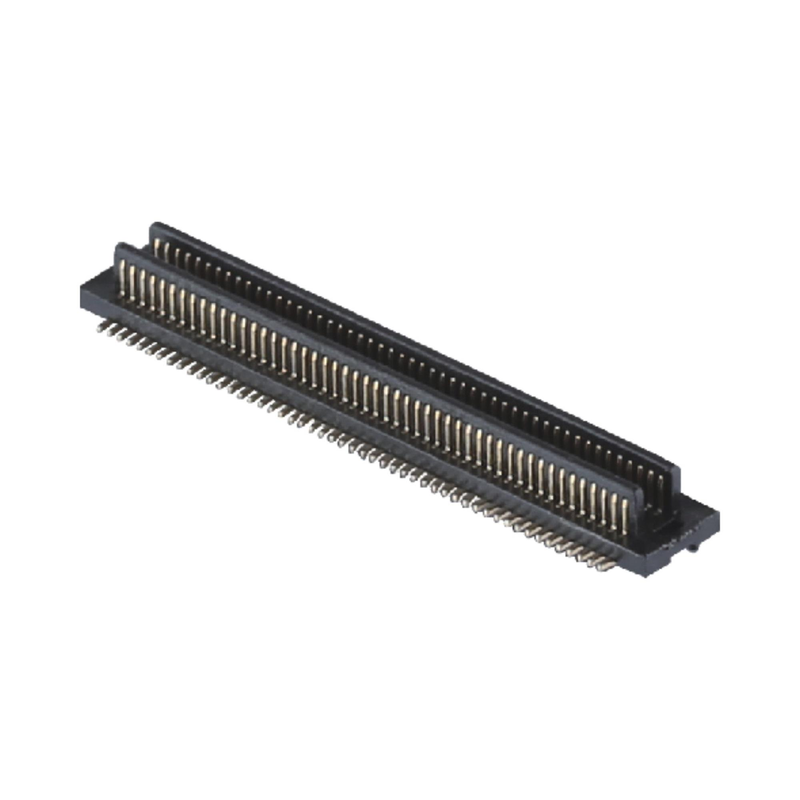

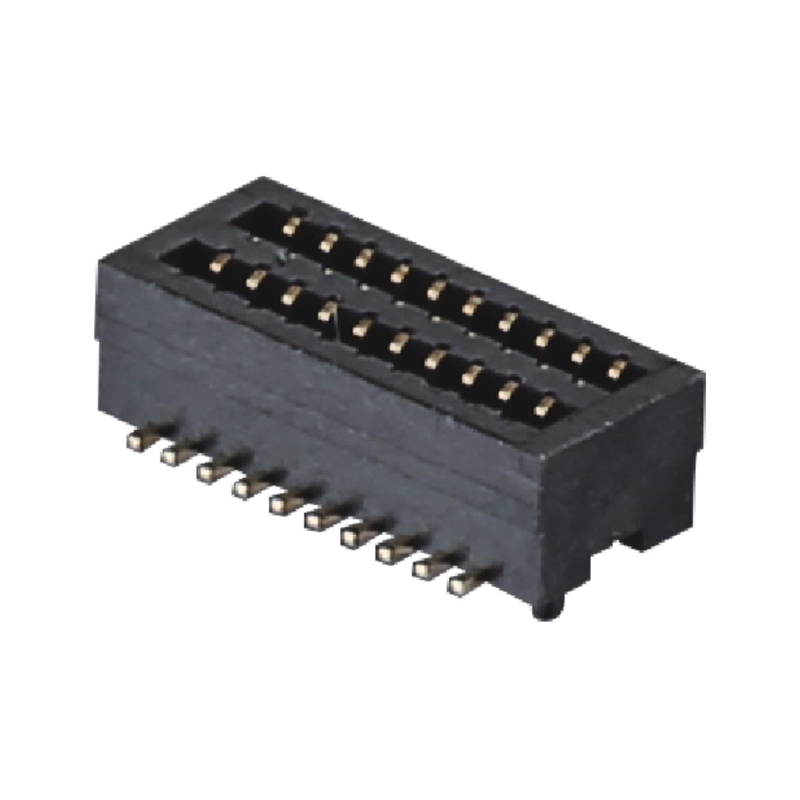

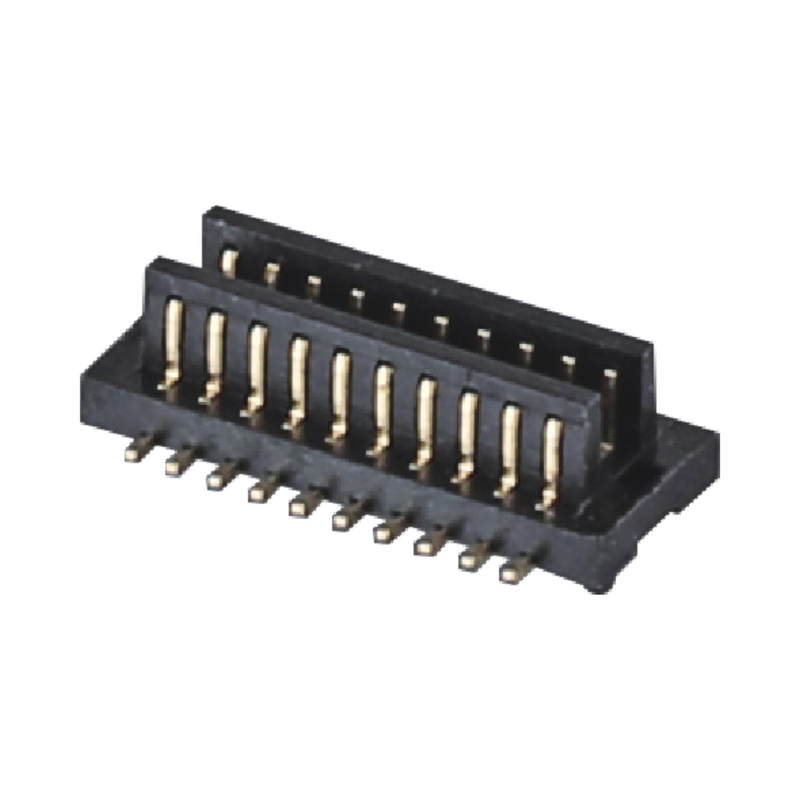

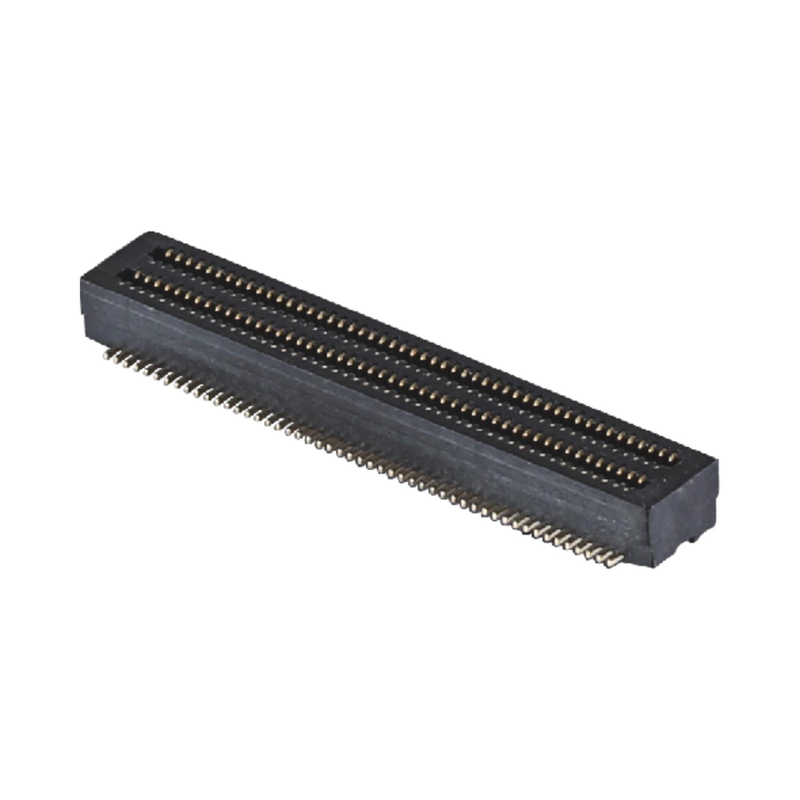

0.8mm Pitch BTB Connector 40 100 Pin High Transmission Speed Male Female Connector
Product Highlights
✅ Blind Mating & Self-Alignment Anti-Misinsertion Design: Built-in guiding structure with X/Y axis tolerance absorption, reduces mating damage risk during manual & automated assembly, prevents reverse insertion.
✅ High-Speed Signal Integrity: Optimized terminal impedance design, stable high-speed transmission for high-frequency signal paths.
✅ Controllable Mated Height: Multiple stacked mating height options to match your PCB gap requirement; compact 0.8mm pitch saves PCB layout space.
✅ SMT Reel Packaging: Ready for automatic pick & place, compatible with standard SMT assembly lines.
Product Description
| Category |
Item |
Specification |
| Electrical Performance |
Pitch |
0.8 mm |
|
Pin Count |
10 / 20 / 40 / 100 Pin |
|
Rated Current |
1.0 A per pin |
|
Rated Voltage |
60 V DC |
|
Contact Resistance |
≤30 mΩ |
|
Insulation Resistance |
≥500 MΩ @500V DC |
|
Dielectric Withstanding Voltage |
500V AC, no breakdown for 1 min |
| Mechanical Performance |
Mating Cycles |
Min 50 cycles |
|
Mating / Unmating Force |
Low insertion force, stable retention force |
|
Self-alignment Tolerance |
X/Y directional offset tolerance for blind mating |
| Material & Plating |
Housing |
High-temperature LCP, UL94 V-0 |
|
Contact Material |
Phosphor Bronze Copper Alloy |
|
Contact Area Plating |
Gold plating (custom gold thickness available) |
|
Solder Tail Plating |
Matte Tin over Nickel barrier |
| Environmental |
Operating Temp |
-40℃ ~ +85℃ |
|
Compliance |
RoHS, REACH |
| Soldering Guide |
Reflow Profile |
Lead-free SMT reflow, peak temp ≤260℃, dwell time 30~60s |
Cross‑Reference / Alternative
This 0.8mm BTB series is footprint-compatible and electrically interchangeable with mainstream international BTB product lines, a direct drop-in replacement for:
- Molex SlimStack 0.8mm BTB series
- Hirose ER8 / BM series
- JAE DX07 series
- Samtec high-density mezzanine connectors
Note: Verify 3D drawing and mating height before formal PCB layout; free samples available for validation.
Product Feature
- Polarized anti-dumbbell & blind mating self-alignment structure, avoids pin bending during misalignment.
- Tuned terminal geometry for consistent impedance, maintains high-speed signal integrity.
- Multiple mated height selections, flexible PCB stacking gap design.
- Dual-row SMT surface mount male / female pair, 10~100 pin options.
- High-temp LCP insulator, stable performance under reflow and thermal cycling.
- Gold-plated contact area for low contact resistance & anti-oxidation.
Product Advantages
🔹 Engineer-friendly alternative: Pin-to-pin compatible with imported brands, shorten BOM sourcing lead time and cut component cost.
🔹 Robust mating tolerance: Self-alignment structure absorbs assembly offset, lowering the assembly defect rate in mass production.
🔹 High-speed stable performance: Optimized crosstalk control for high-frequency signal transmission.
🔹 Flexible customization: Adjust mated height, gold thickness, and pin count according to your project requirements.
🔹 Full reel packaging: Directly run on SMT automatic assembly line, no repacking needed.
Application
- Industrial embedded control boards
- Medical compact electronic modules
- IoT gateway & smart sensor hardware
- Portable handheld devices
- Display & camera PCB sub-modules
- Automotive non-safety electronic assemblies
- Telecom & high-speed data transmission modules
Packaging
Tape & Reel (Reel). Standard reel packing, compatible with SMT automatic pick-and-place machine, directly run on your production line.
Lead Time
- Samples: 3 working days
- Bulk Order: 1~3 weeks
- MOQ: Negotiable
- Free samples available; fast sample release support
Factory Certification & Custom Service
Certifications: ISO9001, ISO14001, RoHS, REACH
- MOQ: Flexible MOQ for standard items
- Sample Policy: Support free samples / fast sample release for your engineering test
- Customization: Custom mated height, plating thickness, PIN, housing color, and marking available. ODM & OEM acceptable.
Engineer Selection Guidance
- Confirm pin count (10/20/40/100 Pin) and required mated height first.
- Check operating temperature and signal speed requirements to confirm plating spec.
- Download 3D & datasheet for PCB footprint verification before layout lock.
- Order free samples for electrical test, mating validation, and SMT assembly trial.
- Contact our engineering team if you need cross-brand replacement consultation or special modification.
FAQ
