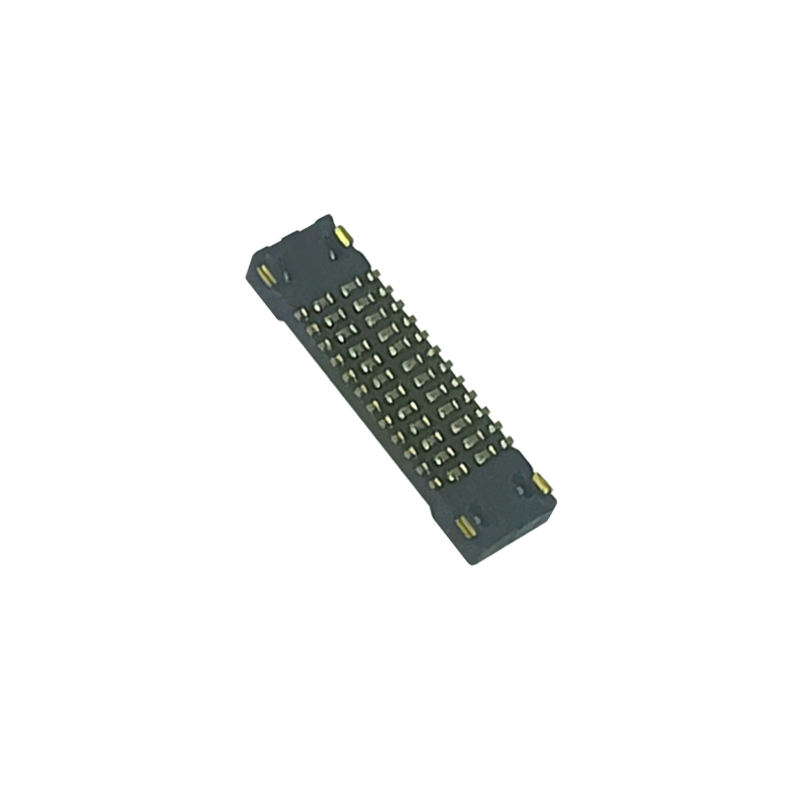

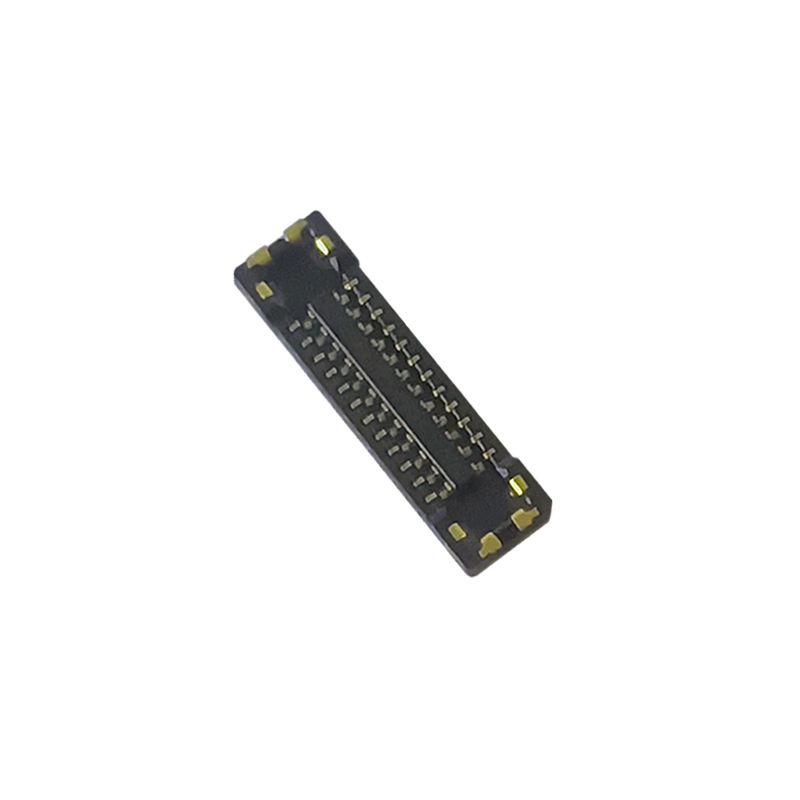

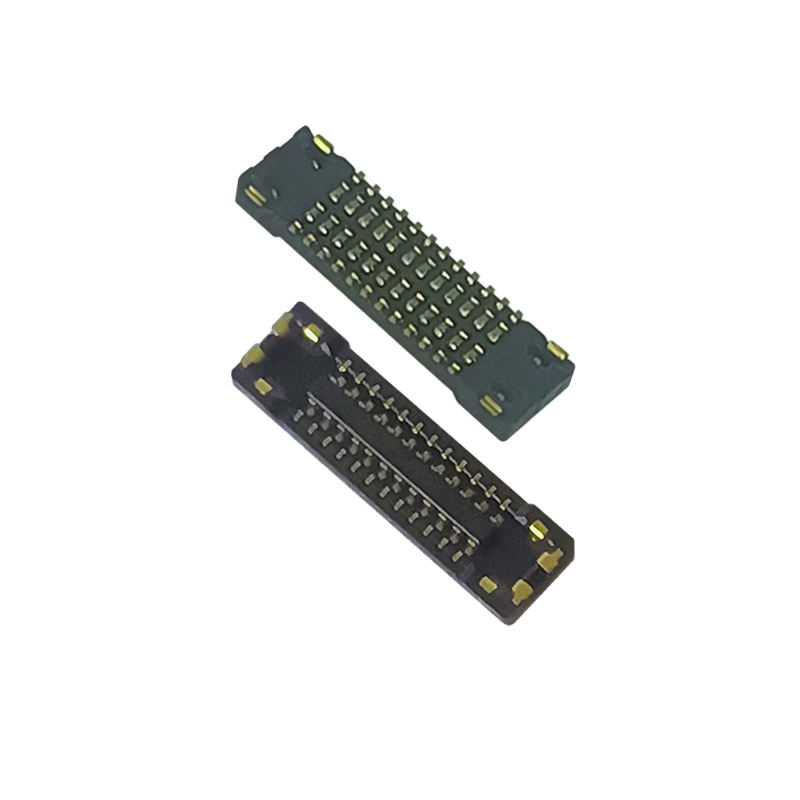

24Pin 0.35mm Narrow Pitch BTB Female Seat WP27D-S024VA1-R15000 Board-to-Board Mezzanine Connectors Compatible Socket
Product Highlights
✅ Blind Mating & Self-Alignment anti-misalignment guide frame, absorbs assembly offset, avoids pin damage during manual/automatic mating
✅ High-speed signal integrity, stable high-frequency transmission for compact multi-layer PCB stacking
✅ Fixed 0.7mm mated stacking height, precise PCB gap control for thin-profile device design
✅ Dual-point contact structure, anti-vibration & anti-shock, clear click feedback for full mating confirmation
✅ SMT tape reel packaging, direct pick & place on your automatic assembly line
Product Description
| Category |
Item |
Spec |
| Electrical Performance |
Pitch |
0.35mm |
|
Pin Count |
24P (Signal + integrated power terminals) |
|
Rated Voltage |
50V AC/DC |
|
Rated Current |
Signal pin:0.3A ; Power pin:3.0A |
|
Contact Resistance |
Signal ≤70mΩ ; Power ≤20mΩ (initial) |
|
Insulation Resistance |
≥1000MΩ @250VDC |
|
Withstanding Voltage |
150V AC, 60s no breakdown |
| Mechanical Performance |
Mated Height |
0.7mm |
|
Durability |
30 mating cycles |
|
Mating / Unmating Force |
Controlled low insertion force, stable retention force |
| Material & Plating |
Contact Material |
Copper Alloy |
|
Contact Plating |
Gold plating on mating area; Nickel barrier to prevent solder wicking |
|
Insulator |
LCP high-temperature plastic, UL94V-0 |
| Environmental |
Operating Temp |
-40°C ~ +85°C |
|
Compliance |
RoHS, REACH |
| Soldering Guide |
Mount Type |
SMT Surface Mount |
|
Reflow Profile |
Peak 260°C max, standard SMT reflow |
Cross‑Reference / Alternative
Drop-in compatible alternative to JAE WP27D-S024VA1-R15000.
Same footprint, stacking height, pin definition, and electrical performance.
Direct substitution for JAE original part without PCB layout revision.
Also serves as a cost-down alternative to premium international BTB brands for 0.35mm ultra-fine-pitch mezzanine applications.
Product Feature
- Built-in metal guiding frame for blind mating & self-alignment, tolerates minor assembly offset, prevents pin bending in mass production
- Dual-point contact design, maintains stable contact resistance under vibration & shock
- Hybrid signal + power integrated terminals, save PCB space
- Low-profile 0.7mm stacking height, ideal for slim device stack-up
- Gold contact plating, excellent anti-oxidation and high-frequency signal performance
- Hold-down reinforcement structure, protects the insulator during mating
- Clear audible click to confirm full mating, reducing incomplete mating risk
Product Advantages
- Engineer-friendly replacement: Same footprint as original JAE part, no PCB redesign required
- Better supply stability: Short lead time vs overseas original brand long lead cycles
- Mass production ready: Strict coplanarity control, high SMT assembly yield
- Cost optimization: Competitive pricing without sacrificing high-frequency & mechanical reliability
- Rapid engineering support: Datasheet, 3D STEP file, PCB footprint available on request
Application
Wearable devices,
smart watches,
AR/VR glasses,
smartphone sub-modules,
tablet internal modules,
compact IoT sensors,
portable medical electronics,
small camera modules,
mini display modules.
Packaging
Tape & Reel (Reel): 15,000 pcs/reel. Embossed carrier tape.
Fully compatible with SMT pick-and-place machines and ready to load directly onto your production line.
Lead Time
- Samples: 3 working days
- Bulk order: 1 ~ 3 weeks
- MOQ: Negotiable
- Free samples supported; fast sample release for engineering validation
Factory Certification & Custom Service
Certifications: ISO9001, RoHS, REACH compliant.
- Sample Policy: Free samples available, fast sample release
- MOQ: Low MOQ for standard parts; custom pin count/stacking height available upon request
- Customization: Custom PIN, stacking height, plating thickness, shielding options for special project requirements
- Full engineering support: Datasheet, 2D/3D drawing, PCB footprint, test report available upon request
Engineer Selection Guidance
- Confirm your required mated stacking height: this model is fixed at 0.7 mm. Contact us if another stack height is needed.
- Verify PCB footprint: cross-check with our provided footprint before layout freeze.
- Evaluate mating method: this part supports blind mating, recommended for automated assembly or manual assembly with alignment difficulty.
- High-speed design: contact our signal integrity team if you need impedance/insertion loss test data.
- Sample first: always run prototype validation with free samples before mass production.
FAQ
Q: Do you have a catalogue? Can you send me the catalogue to check all your products?
A: Yes, you can contact us online or send an Email to get the catalogue.
Q: I can't find the product in your catalogue. Can you make this product for me?
A: Our catalogue shows most of our products, but not all. Just let us know what product you need and how many you want. If we do not have it, we can also design and make a new mould to produce it. For your reference, making an ordinary mould will take about 35-45 days.
Q: Can you provide a sample? Are these samples free?
A: Yes, we provide 5-10 pcs of connector free samples for testing. But you have to pay the shipping cost
Q: What about your delivery time?
A: Stock goods are delivered within 1 day; customized goods are delivered within 5-7days
Q: How to ship my order?
A: For small packages, send them by Express, such as DHL, FedEx, UPS, TNT, EMS. That's Door-to-Door service. For big packages, we can send them by Air or by sea. We use standard export cartons. We will be responsible for any product damage caused during delivery.
6. Q: What kind of payment do you accept? Can I pay RMB?
A: Weaccept T/T(Wire transfer), Western Union, and PayPal. Please be sure that we can receive the same amount as the Invoice. And you can pay money in RMB. No problem.
7. Q: How about your company's quality control
A: Strictly follow ISO9001; IQC, OQC, IPQC, and QA occupy 10% of our Quality department. The CCD test is applied to 99% of our company's product applications.
Q: I need your price list of all your products. Do you have a price list?
A: We do not have a price list of all of our products. Because we have so many items, it's impossible to make all of their prices on a list, and the prices are always changing because of the material cost and quantity. And you can give us a list of all of the items you need; we will confirm carefully one by one and give you a specification and price list
Q: Can you make customized products and customized packing?
A: Yes. We have made a lot of customized
products for our customers before (mainly wire harnesses). About customized packing, there is no problem; we can put your logo or other information on the packing. Just have to point out that it will cause some additional cost.
Q: What certificates do you have?
A: CE, CQC, UL, ISO9001, ISO14001, IATF16949, ISO45001, QC080000, etc.
