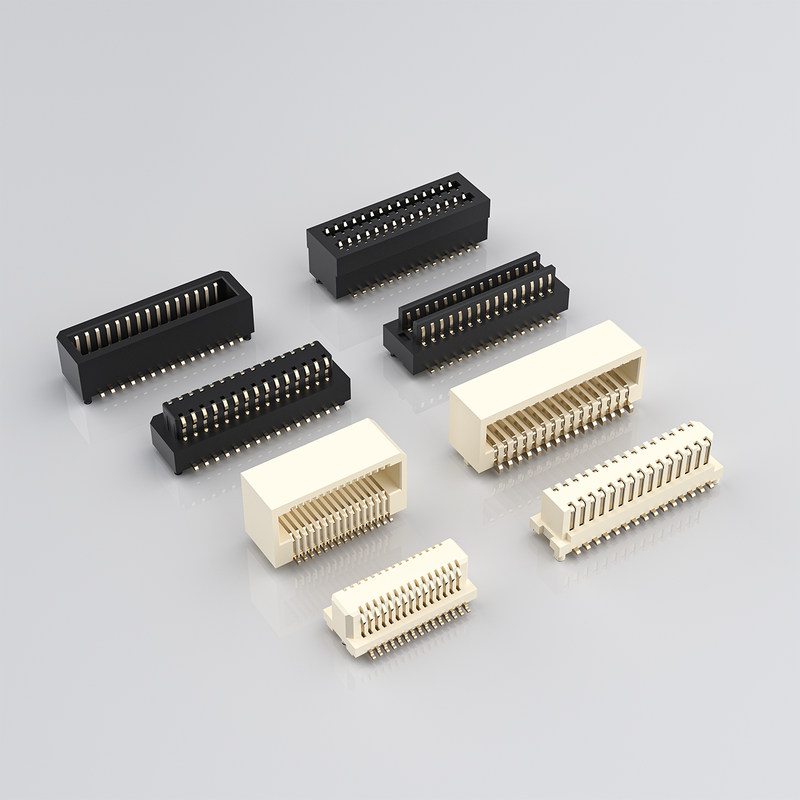

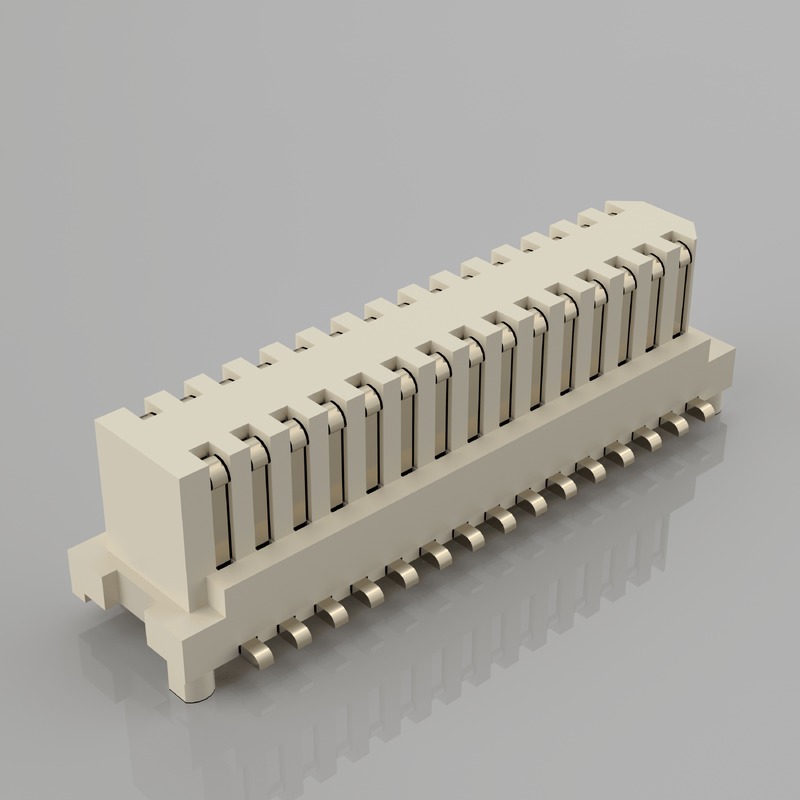

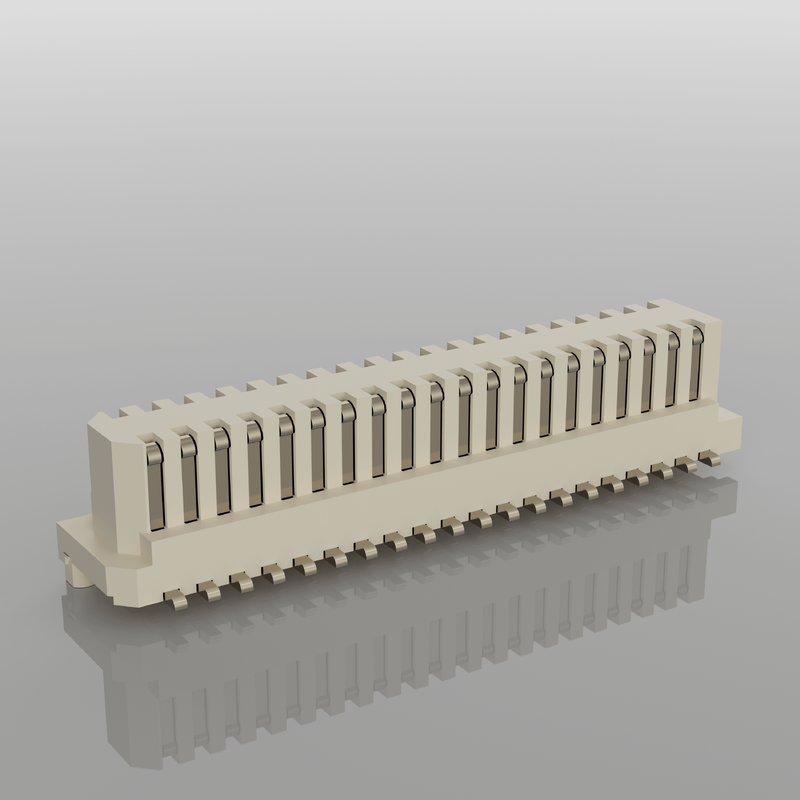

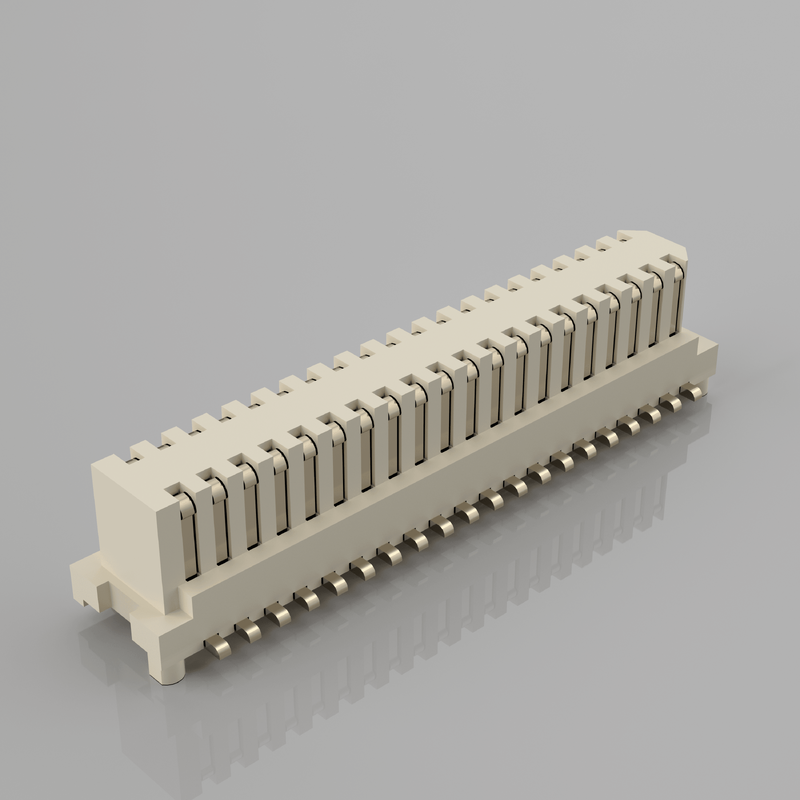

Male 0.5mm Pitch Single Slot Board-to-Board & Mezzanine Connectors Right-angle Connector for PCBA
Product Highlights
- Blind Mating & Self‑Alignment: Built‑in guiding boss & chamfer housing compensate for X/Y assembly offset; avoid pin damage during blind insertion for modular PCBA assembly
- High‑Speed Signal Performance: Optimized signal integrity, supports LVDS, PCIe, high‑speed differential transmission for high‑density digital modules
- Customizable Mated Height: Multiple mated‑height options to define exact PCB‑to‑PCB gap, match your mechanical enclosure constraint
- Single‑slot right‑angle SMT form: 90° orthogonal PCB interconnection, saves critical device internal space
Product Description
| Item |
Parameter |
| Electrical Performance |
|
| Pitch |
0.5 mm |
| Rated Current (per signal contact) |
0.5 A |
| Rated Voltage |
50 V DC |
| Withstanding Voltage |
250 V AC, 1 min |
| Initial Contact Resistance |
≤30 mΩ |
| Insulation Resistance |
≥10⁹ Ω |
| Signal Rate |
Up to 10 Gbps |
| Mechanical Performance |
|
| Number of Positions |
Custom range upon request |
| Mated Height |
Multiple stacking height options |
| Mating Cycles |
30 cycles minimum |
| Mating Tolerance |
X/Y offset tolerance for blind‑mating |
| Mounting Type |
SMT Right‑Angle |
| Material & Plating |
|
| Housing |
LCP, UL94 V‑0 flame retardant |
| Contact Material |
High‑strength copper alloy |
| Mating Contact Plating |
Gold over nickel; multiple gold‑thickness options |
| SMT Termination Plating |
Tin over nickel |
| Environmental |
|
| Operating Temperature |
‑40 ℃ ~ +105 ℃ |
| Compliance |
RoHS, REACH compliant |
| Soldering Guide |
|
| Reflow Profile |
Peak 245‑260 ℃, follow J‑STD‑020 standard; no wave‑soldering |
| Assembly |
Compatible with standard SMT pick‑and‑place equipment |
Cross‑Reference / Alternative
This right‑angle mezzanine connector is engineered as a functional alternative for established international series from Molex, JAE, Hirose, and Amphenol.
- Drop‑in compatible footprint for quick second‑source validation; same pitch, mated height, mechanical outline for PCBA reuse.
- Note: Always perform electrical & mechanical validation before mass production; pin‑to‑pin 100% match available per your reference part number.
- Reduces dependency on long‑lead‑time overseas components, shortening your project lead‑time.
Product Feature
- Single‑slot right‑angle construction for orthogonal 90‑degree PCBA interconnection.
- Polarized housing + alignment boss prevents reverse insertion and pin damage during assembly.
- Self‑alignment chamfer enables reliable blind mating for enclosure‑closed module assembly.
- High‑grade LCP housing resists high SMT reflow temperature without deformation.
- Optimized contact geometry delivers stable high‑speed differential signal performance.
- Multiple mated‑height selections to fix precise mezzanine PCB gap.
- Fully SMT compatible, ready for automated pick‑and‑place mass production.
Product Advantages
- Assembly‑friendly: Blind‑mating tolerance absorbs PCB placement error, lower assembly reject rate.
- SI‑optimized: Tuned contact structure minimizes crosstalk for high‑speed digital signal transmission.
- Second‑source solution: Direct footprint alternative to premium overseas brands, competitive cost & shorter lead time.
- Flexible customization: Pin count, mated height, and gold plating thickness configurable for your design.
- Consistent quality: Strict coplanarity control avoids SMT open‑soldering risk on fine‑pitch pads.
Application
- Industrial embedded modules
- IoT gateway & sensor assemblies
- Medical compact PCBA sub‑boards
- Hand‑held test & measurement equipment
- Security camera & vision modules
- Communication peripheral hardware
- Consumer high‑density stacked PCB assemblies
- Modular device internal orthogonal board interconnection
Packing
Tape & Reel (Reel packaging): Standard reel packaging for SMT pick‑and‑place machine. Parts can be directly loaded onto your automated production line without repacking. Cut‑tape service is available for small‑batch prototypes.
Lead Time
- Sample order: 3 working days
- Mass production order: 1‑3 weeks, subject to configuration & order quantity
Factory Certification & Custom Service
- Certifications: ISO9001, RoHS, REACH compliant
- Sample Policy: Free samples supported, fast sample turnaround
- MOQ: Low MOQ for standard parts; custom configurations MOQ upon evaluation
- Custom capability: Custom pin count, mated stacking height, plating thickness, mechanical modification, special packaging according to your drawing/specification.
Engineer Selection Guidance
- Confirm critical dimension: Mated Height = fixed gap between two PCBs; select the correct height variant first.
- Count total pins: Separate signal pins & power pins; reserve ground pins for high‑speed signal integrity.
- Check required data rate: Confirm whether high‑speed differential performance is needed for your protocol.
- Define plating spec: Thicker gold plating for vibration / harsh‑environment long‑life applications.
- Assembly condition: If your product requires blind‑assembly, confirm self‑alignment tolerance matches your mechanical stack‑up.
- SMT process: Use reel packing for mass production; request free samples for prototype verification before full‑scale release.
- Cross‑reference: Send your original competitor part number; we will recommend a matching alternative model for validation.
FAQ
Q: Do you have a catalogue? Can you send me the catalogue to check all your products?
A: Yes, you can contact us online or send an Email to get the catalogue.
Q: I can't find the product in your catalogue. Can you make this product for me?
A: Our catalogue shows most of our products, but not all. Just let us know what product you need and how many you want. If we do not have it, we can also design and make a new mould to produce it. For your reference, making an ordinary mould will take about 35-45 days.
Q: Can you provide a sample? Are these samples free?
A: Yes, we provide 5-10 pcs of connector free samples for testing. But you have to pay the shipping cost
Q: What about your delivery time?
A: Stock goods are delivered within 1 day; customized goods are delivered within 5-7days
Q: How to ship my order?
A: For small packages, send them by Express, such as DHL, FedEx, UPS, TNT, EMS. That's Door-to-Door service. For big packages, we can send them by Air or by sea. We use standard export cartons. We will be responsible for any product damage caused during delivery.
6. Q: What kind of payment do you accept? Can I pay RMB?
A: Weaccept T/T(Wire transfer), Western Union, and PayPal. Please be sure that we can receive the same amount as the Invoice. And you can pay money in RMB. No problem.
7. Q: How about your company's quality control
A: Strictly follow ISO9001; IQC, OQC, IPQC, and QA occupy 10% of our Quality department. The CCD test is applied to 99% of our company's product applications.
Q: I need your price list of all your products. Do you have a price list?
A: We do not have a price list of all of our products. Because we have so many items, it's impossible to make all of their prices on a list, and the prices are always changing because of the material cost and quantity. And you can give us a list of all of the items you need; we will confirm carefully one by one and give you a specification and price list
Q: Can you make customized products and customized packing?
A: Yes. We have made a lot of customized
products for our customers before (mainly wire harnesses). About customized packing, there is no problem; we can put your logo or other information on the packing. Just have to point out that it will cause some additional cost.
Q: What certificates do you have?
A: CE, CQC, UL, ISO9001, ISO14001, IATF16949, ISO45001, QC080000, etc.
