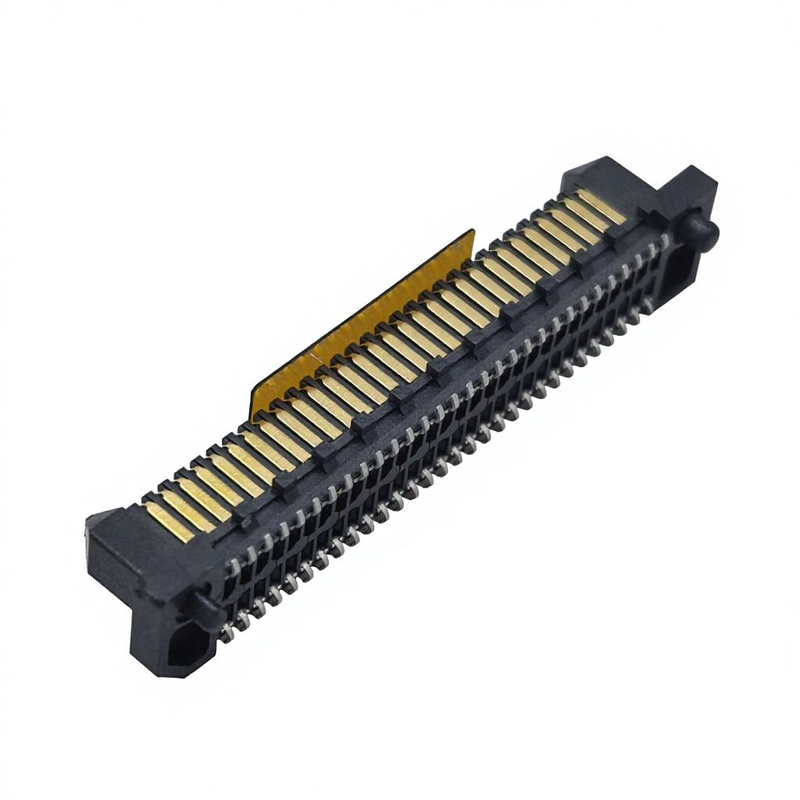

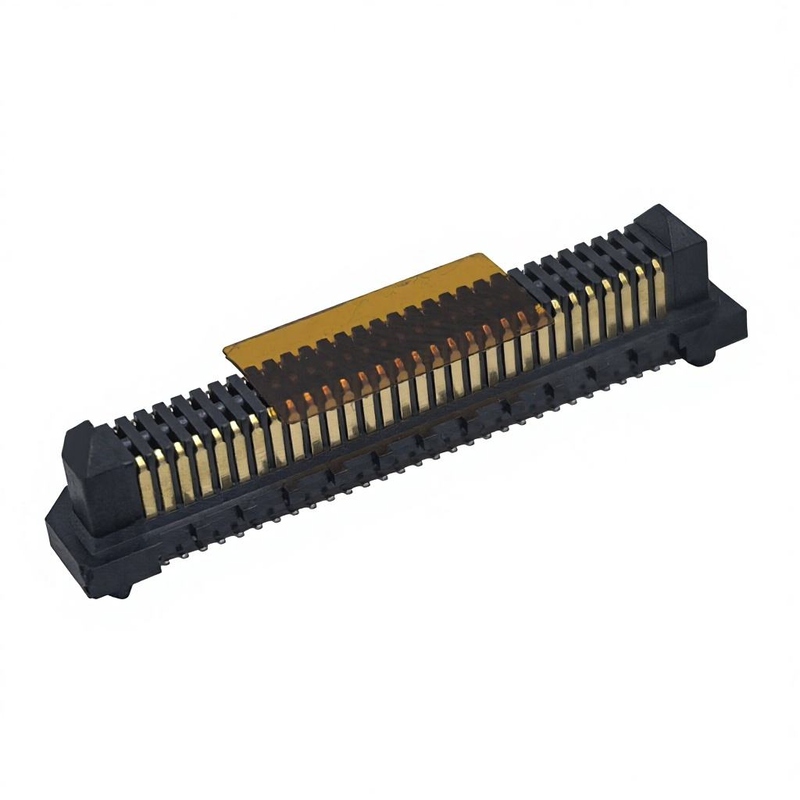

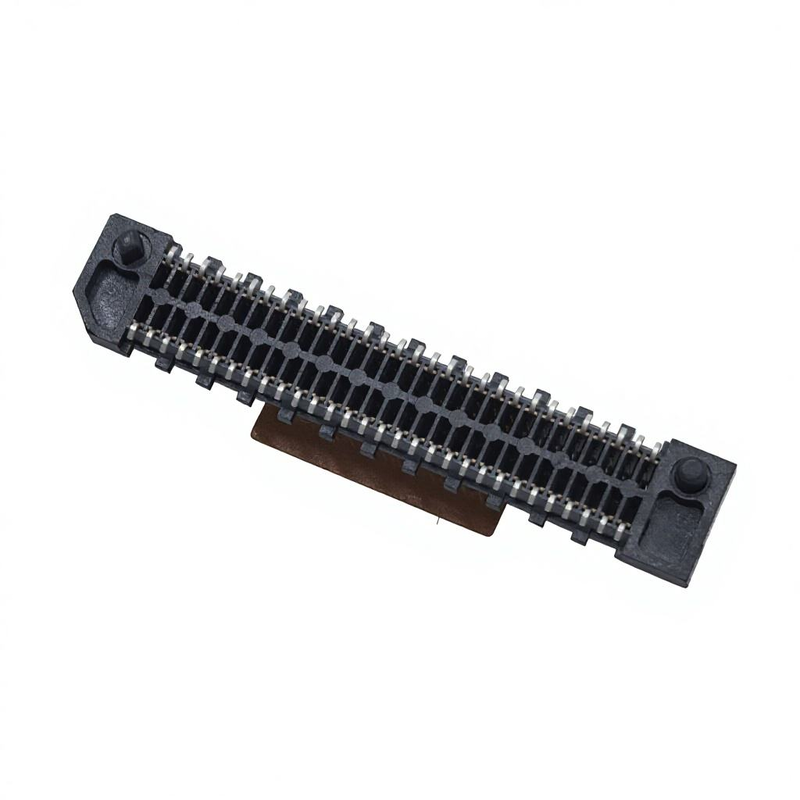

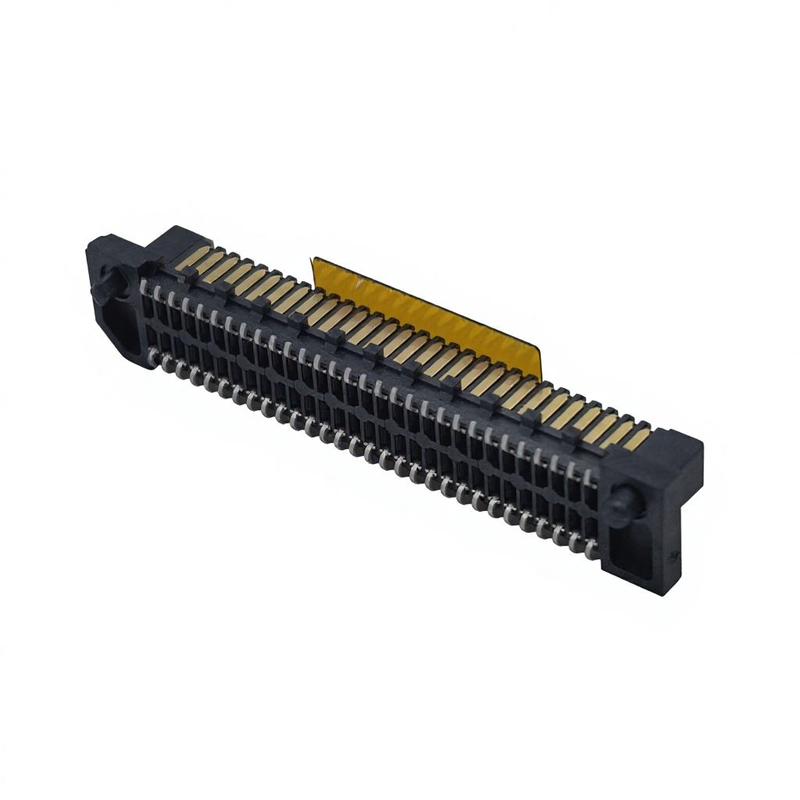

High Current 0.8mm 38 Pin BTB Connector Plug Curved Terminals PCB Board-to-Board Connector Mylar SMT Gold Ni Contact Finish
Product Highlights
✅ Blind‑Mating & Self‑Alignment Tolerance Design: Built‑in guiding chamfer structure, absorbs minor assembly offset, avoids pin damage during automated pick‑&‑place mating, reduces assembly scrap rate
✅ High‑Speed Signal Integrity: Impedance‑optimized curved contact terminals, stable performance for high‑speed differential signal transmission, minimizes insertion loss & crosstalk.
✅ Defined Mated Height: Precise stacked mated height control, consistent PCB stack‑up dimension for your mechanical enclosure design.
✅ High‑Current Curved Terminals: Copper‑alloy curved contact beam, reliable multi‑point contact, sustains stable power & signal transmission.
✅ SMT with Mylar Tape: Mylar carrier tape prevents terminal deformation during reflow soldering, fits mass‑production SMT assembly lines.
✅ Gold‑Nickel Contact Finish: Gold plating on mating area + nickel under‑layer, anti‑oxidation, low & stable contact resistance for long service life
Product Description
| Item |
Specification |
| Electrical Performance |
|
| Pitch |
0.8 mm |
| Pin Count |
38 Pin |
| Rated Current |
1.0 A per contact |
| Rated Voltage |
100 V AC/DC |
| Contact Resistance |
≤ 30 mΩ |
| Insulation Resistance |
≥ 500 MΩ (500 V DC) |
| Dielectric Withstanding Voltage |
250 V AC / 1 min |
| Mechanical Performance |
|
| Connector Type |
BTB Plug, Curved Terminals |
| Mounting Style |
SMT Surface Mount |
| Mated Height |
(Fill your actual dimension here, e.g. 5.6 mm) |
| Mating Cycles |
5000 cycles minimum |
| Insertion / Extraction Force |
Application‑dependent (per pin design) |
| Material & Plating |
|
| Contact Material |
High‑strength Copper Alloy |
| Contact Finish |
Gold plating on mating area, Nickel under‑plating; Solder area: Nickel base |
| Housing Material |
High‑temp LCP, UL94‑V0 flame retardant |
| Auxiliary Material |
Mylar protective tape for SMT processing |
| Environmental Performance |
|
| Operating Temperature |
-40 ℃ ~ +105 ℃ |
| Compliance |
RoHS 2.0, REACH |
| Soldering Guidance |
|
| Reflow Profile |
Standard lead‑free SMT reflow; Peak temp ≤260 ℃, dwell time follow IPC/JEDEC standard |
| Note |
Keep Mylar tape intact before SMT; remove after soldering; avoid manual hot‑iron repair on fine‑pitch terminals |
Cross‑Reference / Alternative
This 0.8 mm 38‑pin curved‑terminal BTB plug is engineered as a drop‑in functional alternative for selected Molex SlimStack®, JAE, Amphenol BergStak® 0.8 mm series BTB plugs.
- Matches critical footprint, mated height, electrical & mechanical performance for direct replacement in existing PCB projects.
- No PCB layout revision required for most cases; please verify the dimension drawing before mass production.
- Cost‑optimized lead‑time advantage vs original imported components for volume projects.
Product Feature
- Curved spring‑beam terminals deliver stable multi‑point contact, resist vibration & thermal‑cycle stress.
- Self‑alignment blind‑mating chamfer guards pins against mis‑insertion damage for auto‑assembly production.
- Mylar backing tape holds fine‑pitch terminals coplanar, prevents distortion during tape‑reel transport & reflow.
- Gold‑over‑nickel plating maintains low contact resistance even in humid or slightly corrosive working environments.
- Compact 0.8 mm high‑density pitch saves valuable PCB stacking space.
- Strict coplanarity control for zero‑defect SMT pick‑and‑place yields.
Product Advantages
🔹 Lower assembly risk: Self‑alignment tolerance design reduces manual & robotic mating failure rate.
🔹 High‑speed + high‑current combined capability: One connector handles both power supply and high‑speed differential signals.
🔹 Mass‑production ready: Reel packaging directly compatible with standard SMT pick‑and‑place machines.
🔹 Cost‑effective substitution: Functional equivalent to famous international brand parts, shortening procurement lead time.
🔹 Reliable consistency: In‑house stamping, molding, plating & final inspection, stable batch‑to‑batch performance.
🔹 Flexible support: Free samples & fast prototyping for your engineering validation.
Application
- Industrial control modules & embedded edge computing hardware
- Medical portable electronic stacked‑board assemblies
- Smart display, camera module inter‑board connection
- Consumer IoT, wearable & compact handheld devices
- Automotive interior non‑safety electronic sub‑assemblies
- Telecom small‑cell & signal transmission equipment
Packing
- Standard embossed carrier tape for SMT automatic pick‑and‑place machine
- Directly usable on customer SMT production line; no repacking needed
Lead Time
- Sample order: 3 working days
- Mass production order: 1‑3 weeks, subject to configuration & order quantity
Factory Certification & Custom Service
- Certifications: ISO9001, RoHS, REACH compliant
- Sample Policy: Free samples supported, fast sample turnaround
- MOQ: Low MOQ for standard parts; custom configurations MOQ upon evaluation
- Custom capability: Custom pin count, mated stacking height, plating thickness, mechanical modification, special packaging according to your drawing/specification.
Engineer Selection Guidance
- Confirm actual mated height matches your PCB stack‑up & housing mechanical clearance.
- Verify current per‑pin load: do not exceed rated 1.0 A per contact for continuous operation.
- For high‑speed signal paths, follow our recommended PCB stack‑up & differential‑pair routing suggestion.
- Re‑check mating partner receptacle compatibility; cross‑reference does not guarantee 100% pin‑to‑pin without drawing confirmation.
- SMT production: retain Mylar tape before reflow soldering; peel off after soldering is finished.
- Submit BOM list to our engineering team if you need cross‑reference verification for your existing project.
Contact our engineering sales for drawing, 3D file and sample request.
FAQ
Q: Do you have a catalogue? Can you send me the catalogue to check all your products?
A: Yes, you can contact us online or send an Email to get the catalogue.
Q: I can't find the product in your catalogue. Can you make this product for me?
A: Our catalogue shows most of our products, but not all. Just let us know what product you need and how many you want. If we do not have it, we can also design and make a new mould to produce it. For your reference, making an ordinary mould will take about 35-45 days.
Q: Can you provide a sample? Are these samples free?
A: Yes, we provide 5-10 pcs of connector free samples for testing. But you have to pay the shipping cost
Q: What about your delivery time?
A: Stock goods are delivered within 1 day; customized goods are delivered within 5-7days
Q: How to ship my order?
A: For small packages, send them by Express, such as DHL, FedEx, UPS, TNT, EMS. That's Door-to-Door service. For big packages, we can send them by Air or by sea. We use standard export cartons. We will be responsible for any product damage caused during delivery.
6. Q: What kind of payment do you accept? Can I pay RMB?
A: Weaccept T/T(Wire transfer), Western Union, and PayPal. Please be sure that we can receive the same amount as the Invoice. And you can pay money in RMB. No problem.
7. Q: How about your company's quality control
A: Strictly follow ISO9001; IQC, OQC, IPQC, and QA occupy 10% of our Quality department. The CCD test is applied to 99% of our company's product applications.
Q: I need your price list of all your products. Do you have a price list?
A: We do not have a price list of all of our products. Because we have so many items, it's impossible to make all of their prices on a list, and the prices are always changing because of the material cost and quantity. And you can give us a list of all of the items you need; we will confirm carefully one by one and give you a specification and price list
Q: Can you make customized products and customized packing?
A: Yes. We have made a lot of customized
products for our customers before (mainly wire harnesses). About customized packing, there is no problem; we can put your logo or other information on the packing. Just have to point out that it will cause some additional cost.
Q: What certificates do you have?
A: CE, CQC, UL, ISO9001, ISO14001, IATF16949, ISO45001, QC080000, etc.
