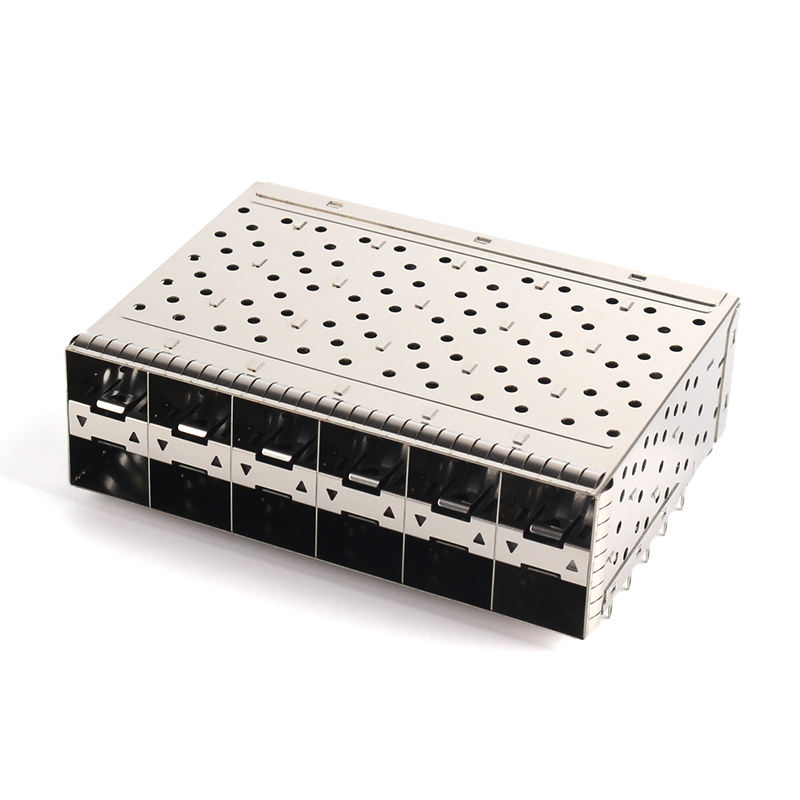

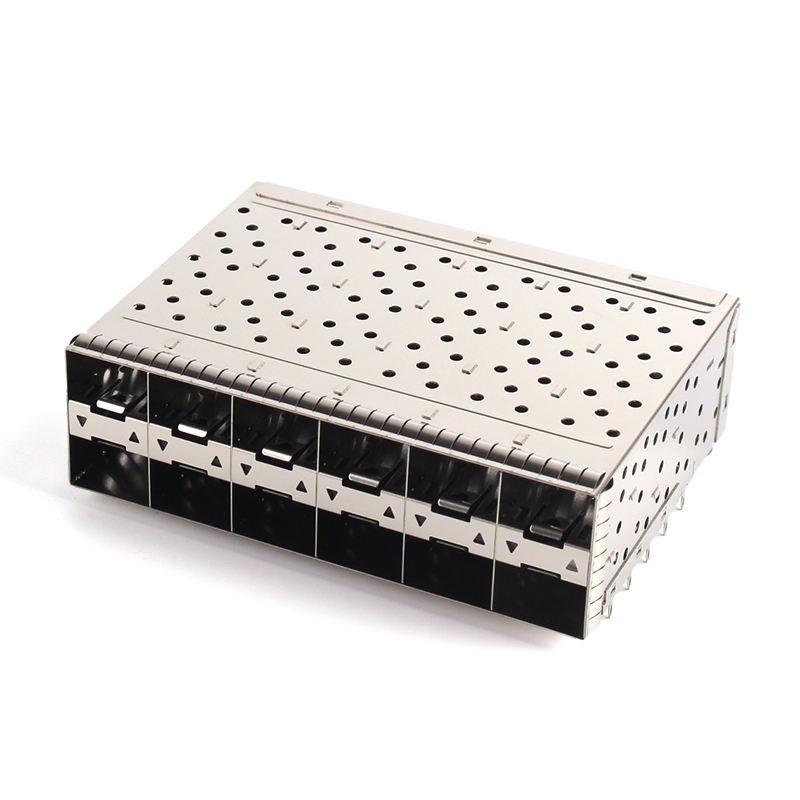

SFP28 / SFP+ 2×6 Cage Assembly with Outer Light Pipe, Press-Fit 240-Position Receptacle, 30µ" Gold on Contact Area – Stacked EMI Shielded I/O Connector for 25G/10G Switch, NIC & 5G Equipment
Product Description
|
Parameter
|
Specification
|
|
Part Type
|
SFP+ / SFP28 Cage Assembly with Integrated Receptacle (2×6 Stacked)
|
|
Form Factor
|
SFP / SFP+ / SFP28 backward compatible
|
|
Port Matrix
|
2 × 6 (12 ports total)
|
|
Positions
|
240 (20 × 12)
|
|
Pitch
|
0.8 mm (0.032 in)
|
|
Mounting
|
Through-Hole, Right Angle
|
|
Termination
|
Press-Fit Compliant Pin (Ø0.64 mm, 3.0 mm tail) / optional SMT
|
|
Contact Material
|
Phosphor bronze/copper alloy
|
|
Contact Plating
|
30 µ" (0.76 µm) gold min on mating area, over PdNi/Ni; tin on press-fit tail
|
|
Cage Material
|
Nickel silver (copper alloy), nickel plated
|
|
Light Pipe
|
Outer type only (PMMA/PC), 2–3 LED channels per port
|
|
EMI Feature
|
External + internal beryllium-copper spring fingers, optional elastomer gasket
|
|
Data Rate
|
1.25 G / 10.3125 G (SFP+) / 25.78 G (SFP28 PAM4)
|
|
Current Rating
|
0.5 A/contact
|
|
Contact Resistance
|
≤ 70 mΩ
|
|
Insulation Resistance
|
≥ 1000 MΩ @ 500 V DC
|
|
Withstand Voltage
|
300 V AC / 750 V peak
|
|
Mating Cycles
|
≥ 100 (module insertion)
|
|
Insertion Force (module)
|
≤ 40 N
|
|
Extraction Force (module)
|
≤ 11.5 N
|
|
Operating Temp.
|
-55 °C to +105 °C (some builds -40~+85 °C)
|
|
Housing Flame Rating
|
UL 94 V-0 (LCP)
|
|
Compliant
|
SFF-8431, INF-8074i, SFF-8402, RoHS 2.0, REACH
|
|
Cross Ref.
|
TE 2007562-7 / 2007567-5 / 1-2007562-7; Prosper SFPP026PC30
|
|
Typical Dimensions
|
L 63.25 × W 86.0 × H 25.4 mm (ref. industry 2×6)
|
|
MOQ
|
500 pcs
|
|
Sample Lead Time
|
5–7 working days
|
|
Mass Lead Time
|
3–4 weeks
|
|
Packaging
|
Hard anti-static tray
|
5 Key Selling Points
1, Outer Light Pipe Only – Clean Faceplate, Zero Inner Aperture Loss.
2, 30µ" Min Gold on Mating Area.
3, 240-Position Press-Fit Receptacle (20×12).
4, 2×6 Stacked Rack-Style = 12 Ports in Compact Z-Height.
5, Full-Perimeter EMI Springs + Nickel-Silver Cage.
Application Scenarios
Data center 25G ToR switches (48-port = 4× 2×6 cages)
Enterprise SFP28 access switches and chassis line cards
Server 25G/10G NICs (multi-port adapter cards)
5G DU/CU fronthaul transport cards (CPRI/eCPRI)
Rackmount firewalls, IPS/IDS, load balancers
Industrial Ethernet switches (DIN/19" rack) needing LED status + EMI margin.
|
Brand
|
Equivalent P/N
|
|
TE Connectivity
|
2007562-7, 2007567-5, 1-2007562-7
|
|
Prosper Electronics
|
SFPP026PC30
|
|
Molex / Amphenol
|
2×6 SFP+ outer-LP press-fit series (on request)
|
Quality & Reliability
100% continuity & press-fit insertion-force test per batch
Cage CMM dimension check (±0.05 mm)
Contact resistance & hi-pot per IEC 60512
Thermal cycling -55↔+105 °C, 500 cycles
EMI shielding verified in GTEM cell (≥60 dB @ 1–10 GHz)
ISO 9001 / RoHS / REACH documentation on shipment.
|
Option
|
Choices
|
|
Port matrix
|

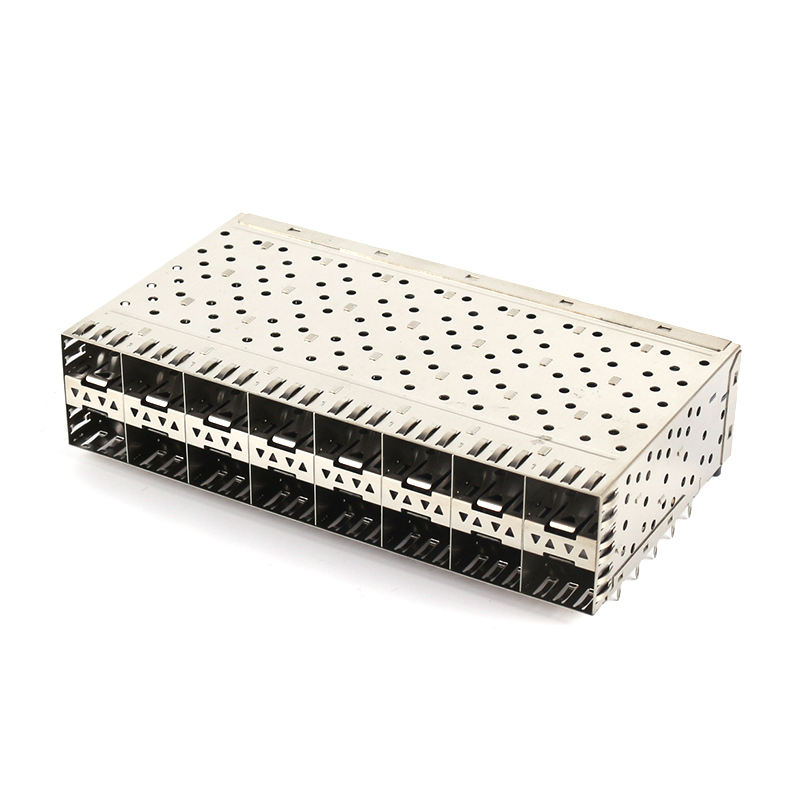

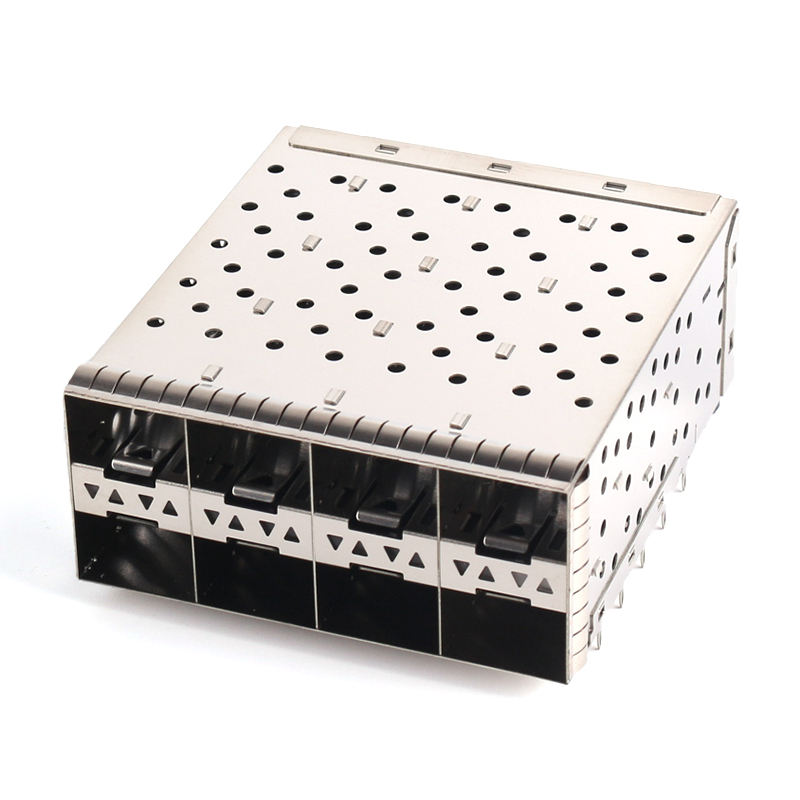

1×1 / 1×4 / 1×6 / 2×1 / 2×2 / 2×4 / 2×6 / 2×8
|
|
Light pipe
|
None / Outer only (default) / Inner+Outer / Inner only
|
|
Gold thickness
|
Flash 15µ" / 30µ" (default) / 50µ"
|
|
Termination
|
Press-fit (default) / SMT tail / mixed
|
|
Cage finish
|
Ni plated (default) / Sn plated / black oxide
|
|
EMI
|
Spring finger only / + elastomer gasket / + conductive foam
|
|
Heat sink
|
None / top sink/side fins
|
|
Logo
|
Laser mark on cage top (MOQ applies)
|
Custom Process (Reuse Your Flowchart)
Requirement Collection – parameters, environment, qty, lead-time
Technical Evaluation & Quotation – engineer verifies fit & rate
3D Drawing Review & Customer Confirmation – STEP/IGES/PDF
Mold Development / Prototype Manufacturing – cage tooling + samples
Sample Reliability Test & Customer Approval – insertion, EMI, thermal, 25G SI
Mass Production – inline AOI + press-fit monitoring
Final QC & Shipment – 100% inspection, hard tray pack, DHL/sea/air
FAQ
Q: How soon can we receive the quotation?
A: If the specification is confirmed, our quotation can be provided within 24 hours.
Q: Can you provide samples for evaluation?
A: Yes, samples can be sent to you for evaluation.
Q: How long does it take for an order
to be processed and shipped?
A: When items are in stock, we usually ship them out in the next 3 to 7 business days after receiving
an order.
Q: What is your trade term?
A: FOB, FCA, CFR, CIF, EXW, DDU are available. We can also help you choose the most
favorable and efficient shipping method.
Q: What is the payment term?
A: Support Alibaba trade assurance order online pay, T/T,
PayPal etc.
Q: How long is the Warranty period?
A: The product comes with 1-year limited warranty.
Q: Can you provide OEM & ODM
service?
A: Yes, our professional R&D team will help make your ideas come true
