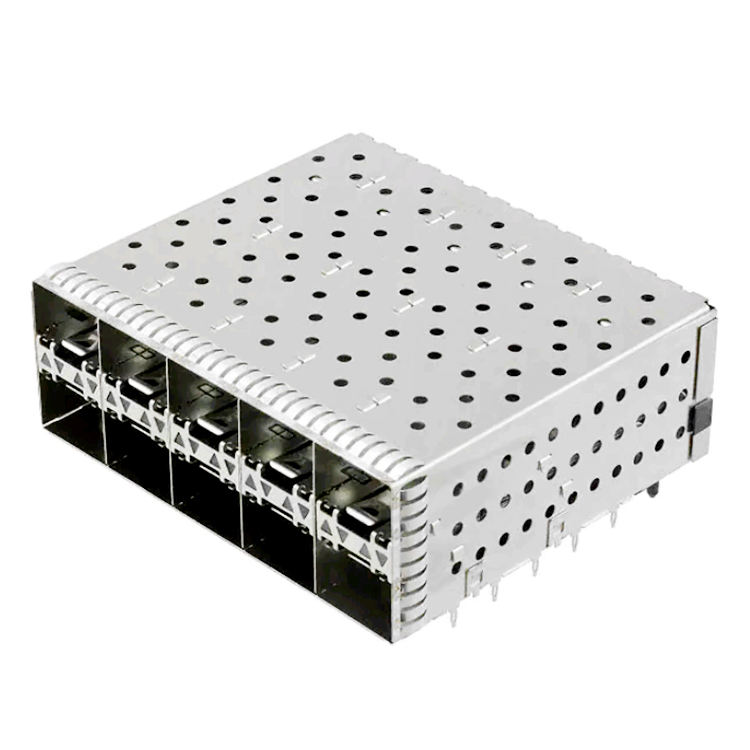

SFP+ Cage 2x5 with Light Pipe, Through Hole Right Angle Receptacle with Integrated Connector, Rack-Style Stacked EMI Shielded I/O Cage – 200-Position Press-Fit SFP Connector for 10G/25G Switch & Server PCB
Description
The SFP+ Cage 2x5 with Light Pipe is a complete hot-swappable I/O interconnect system: a stacked metal cage + 200-position right-angle through-hole receptacle + integrated dual light pipes, shipped as one rack-style ganged assembly. It accepts SFP, SFP+, and SFP28 transceivers, DAC and AOC cables, and mounts to the host PCB via press-fit compliant pins — no wave soldering, no hand wiring.
Designed for high-port-density rackmount equipment (1U/2U ToR switches, blade servers, 5G fronthaul boxes, firewall appliances), the 2x5 vertical stack delivers ten 10G/25G lanes while occupying roughly the front-panel width of a 1x4 cage. The integrated light pipes bring status LEDs to the faceplate; the full metal cage with spring-finger gaskets contains EMI and protects signal integrity at 10G NRZ and 25G PAM4
|
Parameter
|
Specification
|
|
Part Type
|
SFP+ Cage Assembly with Integrated Receptacle (Ganged 2x5)
|
|
Form Factor
|
SFP / SFP+ / SFP28 backward compatible
|
|
Port Matrix
|
2 x 5 (10 ports total, stacked)
|
|
Positions
|
200 (20 × 10)
|
|
Pitch
|
0.8 mm
|
|
Mounting
|
Through Hole, Right Angle
|
|
Termination
|
Press-Fit (compliant pin, Ø0.64 mm) / optional SMT tail
|
|
Receptacle Contact
|
Phosphor bronze, gold flash over nickel (30 µ" min on mating area)
|
|
Cage Material
|
Copper alloy / nickel silver, nickel plated
|
|

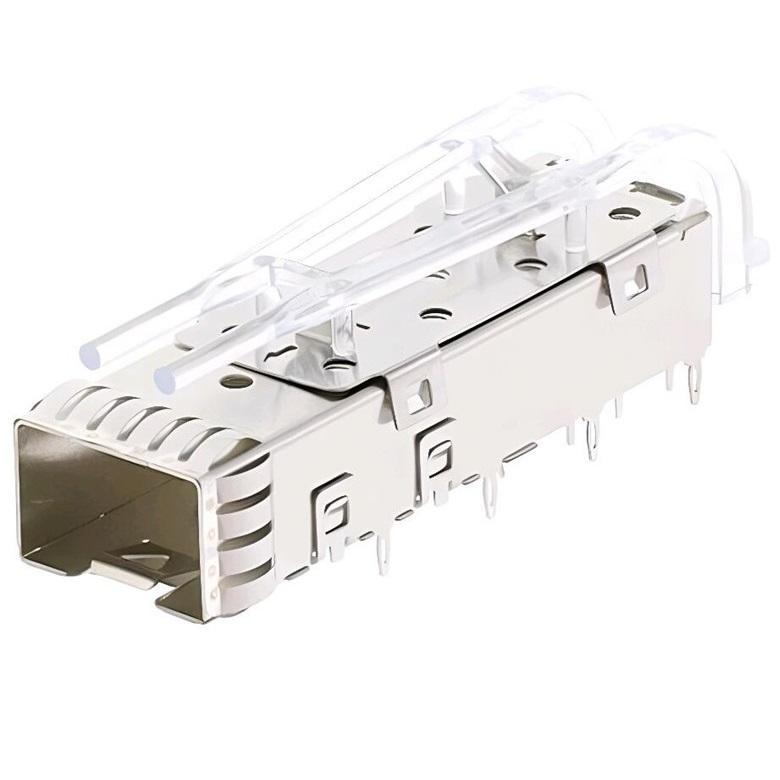

Light Pipe
|
PMMA / PC clear, inner + outer configuration, 2 LED channels per port
|
|
EMI Feature
|
Spring fingers (top/left/right/bottom), optional elastomer gasket
|
|
Board Guide
|
Yes (built-in polarization posts)
|
|
Data Rate
|
1.25 G / 10.3125 G (SFP+) / 25.78 G (SFP28)
|
|
Current Rating
|
0.5 A per contact
|
|
Contact Resistance
|
≤ 70 mΩ
|
|
Insulation Resistance
|
≥ 1000 MΩ
|
|
Withstand Voltage
|
300 V AC / 750 V AC peak
|
|
Mating Cycles
|
≥ 100 (module insertion/extraction)
|
|
Insertion Force (module)
|
≤ 40 N
|
|
Extraction Force (module)
|
≤ 11.5 N
|
|
Operating Temp.
|
-55 °C to +85 °C (some builds to +105 °C)
|
|
Storage Temp.
|
-55 °C to +105 °C
|
|
Flame Rating
|
UL 94 V-0 (LCP/PBT housing)
|
|
Compliant
|
SFF-8431, INF-8074i, RoHS 2.0, REACH
|
|
Cross Ref.
|
TE 1-2132403-6 / Molex 076093-5001 / 076047-5003
|
|
MOQ
|
500 pcs
|
|
Sample Lead Time
|
5–7 working days
|
|
Mass Lead Time
|
3–4 weeks
|
|
Packing
|
Tray (anti-static), optional tube
|
5 Key Selling Points
-
Integrated Dual Light Pipe (Inner + Outer) – Channels Link/ACT/Speed LED signals from PCB to front bezel for all 10 ports; no separate LED holder, no panel rework.
-
Through-Hole Right-Angle + Press-Fit – 200-pin (20×10) receptacle with compliant press-fit tails and right-angle exit; solder-free assembly, compatible with standard SMT reflow + press process.
-
2x5 Stacked Rack-Style Cage – 10 SFP+ ports in one ganged cage assembly, vertical stack saves 50% front-panel width vs 1x10 linear; built-in board guides for blind mating.
-
Full-Perimeter EMI Shielding – Nickel-silver/copper-alloy cage with beryllium-copper spring fingers on top/sides/bottom, ≥60 dB @ 1–10 GHz, meets FCC/CE for 10G/25G NRZ & PAM4.
-
Pin-to-Pin Cross to TE / Molex – Land pattern & mechanicals match TE 1-2132403-6, Molex 076093-5001, Amphenol SF-SFP+-2x5; zero PCB re-spin for legacy designs.
Why 2x5 Stacked Rack-Style?
|
Layout
|
Ports
|
Front Width
|
Use Case
|
|
1x10 linear
|
10
|
~140 mm
|
Wide faceplate, legacy
|
|
2x5 stacked
|
10
|
~71.5 mm
|
1U/2U rack switch, dense NIC
|
|
1x4 + 1x6
|
10
|
~140 mm
|
Mixed-speed panels
|
|
Option
|
Available Choice
|
|

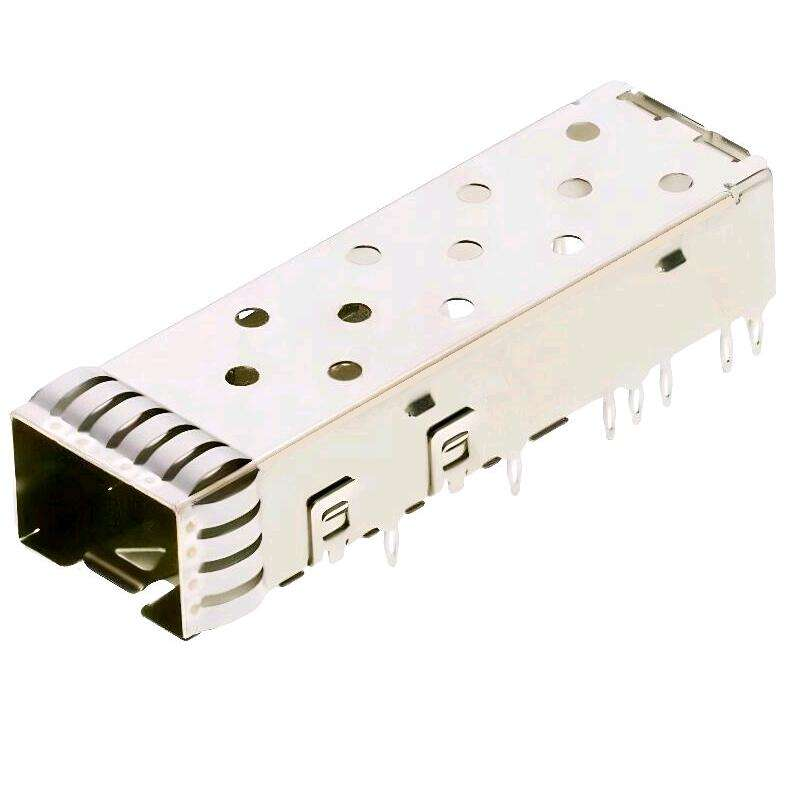

Port matrix
|
1x1 / 1x4 / 1x6 / 2x1 / 2x2 / 2x4 / 2x5 / 2x6 / 2x8
|
|
Light pipe
|
None / Outer only / Inner only / Inner+Outer (default)
|
|
Termination
|
Press-fit (default) / SMT solder tail / Mixed
|
|
Cage finish
|
Ni plated / Sn plated / Black oxidized
|
|
EMI
|
Spring finger only / + elastomer gasket / + conductive foam
|
|

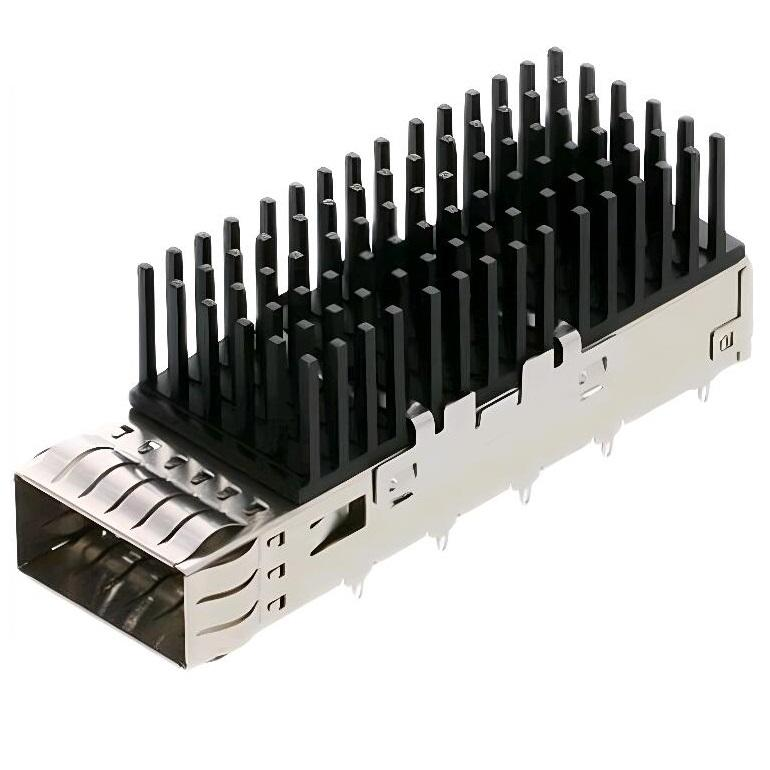

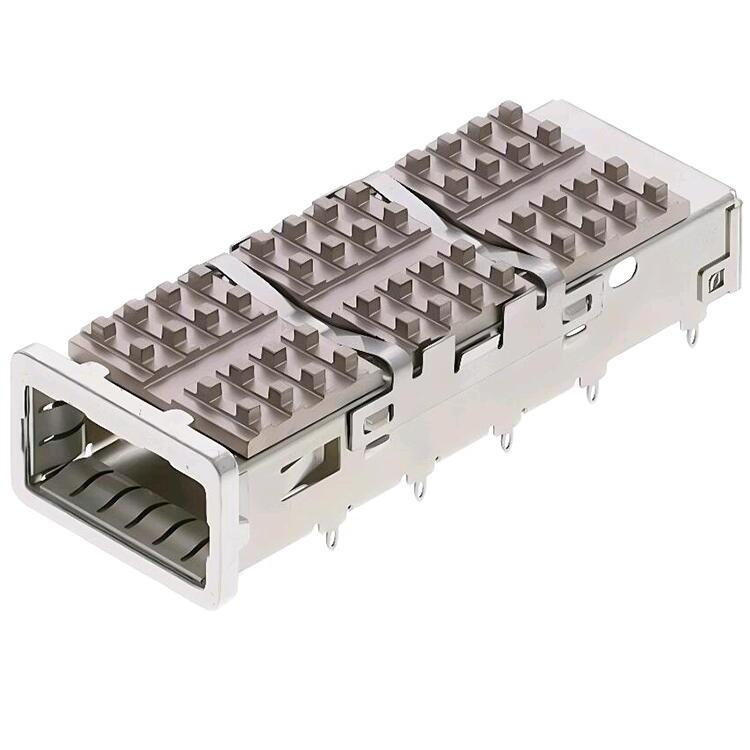

Heat sink
|
None (default) / Top heat sink / Side fins
|
|
Contact plating
|
Gold flash / 15 µ" / 30 µ" / 50 µ"
|
|
Logo
|
Laser mark on cage top (MOQ applies)
|
FAQ
Q: How soon can we receive the quotation?
A: If the specification is confirmed, our quotation can be provided within 24 hours.
Q: Can you provide samples for evaluation?
A: Yes, samples can be sent to you for evaluation.
Q: How long does it take for an order to be processed and shipped?
A: When items are in stock, we usually ship them out in the next 3 to 7 business days after receiving an order.
Q: What is your trade term?
A: FOB, FCA, CFR, CIF, EXW, DDU are available. We can also help you choose the most favorable and efficient shipping method. Q: What is the payment term? A: Support Alibaba trade assurance order online pay, T/T, PayPal, etc.
Q: How long is the Warranty period?
A: The product comes with a 1-year limited warranty.
Q: Can you provide OEM & ODM service?
A: Yes, our professional R&D team will help make your ideas come true.
