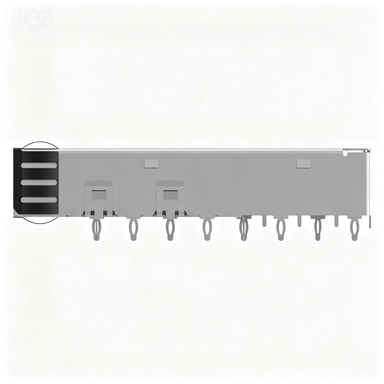

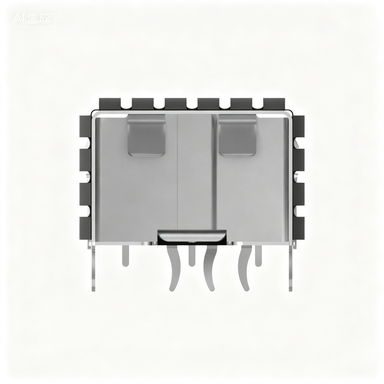

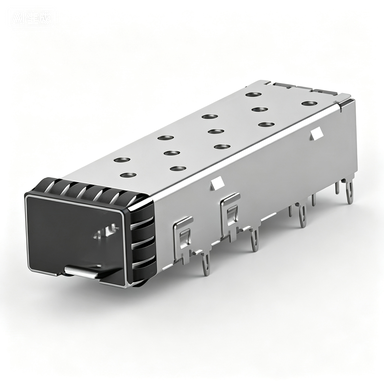

SFP 1×1 Cage Assembly with Integrated 20-Position Press-Fit Receptacle – EMI Shielded Metal Housing for Network Switch / Server PCB Transceiver Port (No Light Pipe)
Product Description
|
Parameter
|
Specification
|
|
Form Factor
|
SFP (1.25G) / SFP+ (10.3125G) / SFP28 (25.78G) backward compatible
|
|
Port Matrix
|
1 × 1 (single port)
|
|
Positions
|
20 (0.8 mm pitch)
|
|
Mounting
|
Through-Hole, Right Angle
|
|
Termination
|
Press-Fit compliant pin Ø0.64 mm, tail 3.0 mm (2.07 mm opt)
|
|
Cage Material
|
Copper alloy 0.25 mm (C7701 class), nickel plated
|
|
Receptacle Housing
|
LCP glass-filled, UL 94 V-0 black
|
|
Contact Material
|
Phosphor bronze, gold flash (30 µ" opt) on mating, tin on tail
|
|
EMI Feature
|
Internal + external beryllium-copper spring fingers
|
|
Light Pipe
|
None
|
|
Heat Sink
|
Not included (heat-sink-compatible: No, per TE 2170039-1)
|
|
Data Rate
|
4 Gb/s (TE 2170039-1 class) / 10.3 Gb/s SFP+ / 25.78 Gb/s SFP28 by layout
|
|
Operating Temp.
|
-55 °C to +105 °C (TE class) / -40~+85 °C (Amphenol class)
|
|
Recommended PCB
|
1.5 mm thickness
|
|
Dimensions (ref)
|
L 48.75 × W 15.10 × H 9.75 mm (Trxcom) / 48.98×15.85×12.1 mm (Amphenol)
|
|
Mating Cycles
|
≥ 100 (module hot-swap)
|
|
Compliant
|
INF-8074i, SFF-8431, RoHS 2.0, REACH
|
|
Cross Ref.
|
TE 2170039-1 / 2057159-1; Molex 74737-0004; Amphenol U77A1118200T; AICO ESFP00101; Trxcom TR11AC01000
|
|
MOQ / Lead Time
|
500 pcs / 5–7 d sample, 3–4 w mass
|
The 1×1 SFP Cage Assembly with Press-Fit EMI Housing integrates a stamped copper-alloy shielding shell and a 20-position 0.8 mm right-angle press-fit receptacle into one pick-and-place unit. It is the smallest SFP I/O building block: one transceiver slot, smallest front-panel cutout (~15.25×6.5 mm), no soldering, no light pipe, no heat sink — exactly the configuration TE documents as 2170039-1 ("Single Cage, External Springs, No Lightpipe, Heat Sink Compatible: No").
It accepts SFP, SFP+, and SFP28 optical transceivers, DAC and AOC, and mounts to the host PCB via compliant press-fit pins — making it the default choice for single-uplink media converters, 1-port NICs, industrial DIN switches, protocol converters, and diagnostic/test cards where software/NMS handles port status and EMI containment is non-negotiable.
Our Competitive Advantages
✅ Full one-stop product portfolio
✅ Optimized EMI shielding design for high-speed signal
✅ Strict dimensional consistency & stable interchangeability
✅ Flexible customization capability
✅ Reliable industrial & data center grade durability
✅ Complete quality documentation support
Application Industries
Media converters – RJ45↔SFP fiber, single uplink;
Industrial DIN-rail switches – 1 fiber uplink in factory/substation env (wide-temp build);
1-port server / NAS / firewall NICs – expansion slot SFP;
Protocol converters – Modbus-TCP to fiber, Profinet to SFP;
5G small-cell / FWA CPE – single 10G SFP+ uplink;
Test & measurement / FPGA dev boards – one shielded transceiver slot;
Medical / railway comms modules – single shielded SFP, no faceplate LED dependency.
Product Selection Reminder
1, Confirm form factor: SFP / QSFP / QSFP-DD / XFP / CFP. Different specifications cannot intermate mechanically.
2, Confirm port layout: single port or stacked 2×2, straight or right-angle mounting.
3. Confirm optional parts: whether light pipe, heat sink or dust cover is required.
4. Confirm PCB assembly method: SMT soldering or press-fit pins.
5. Confirm maximum transmission rate requirement to select a matched impedance structure.
