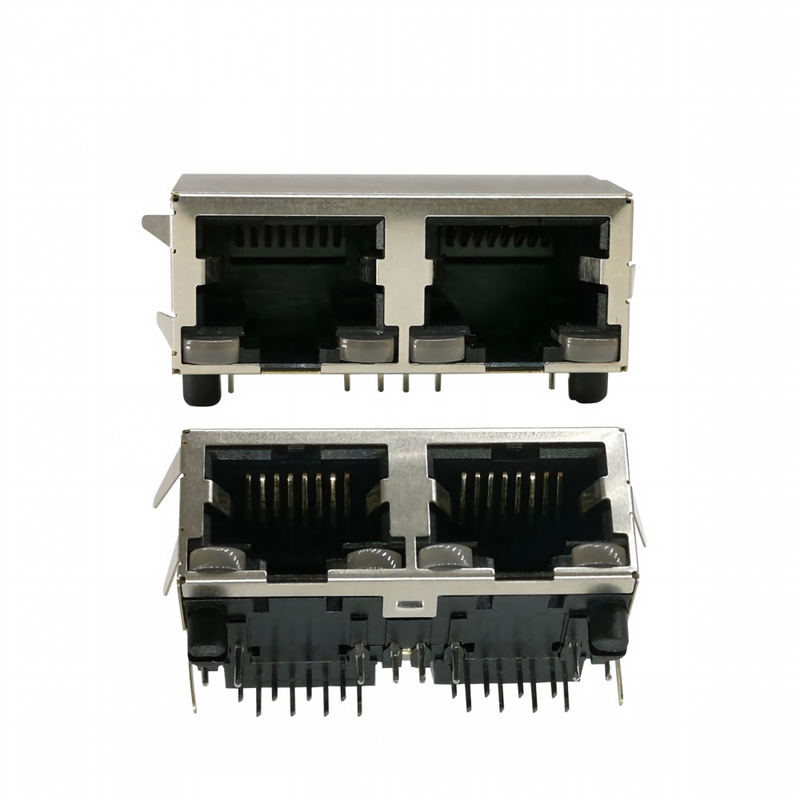

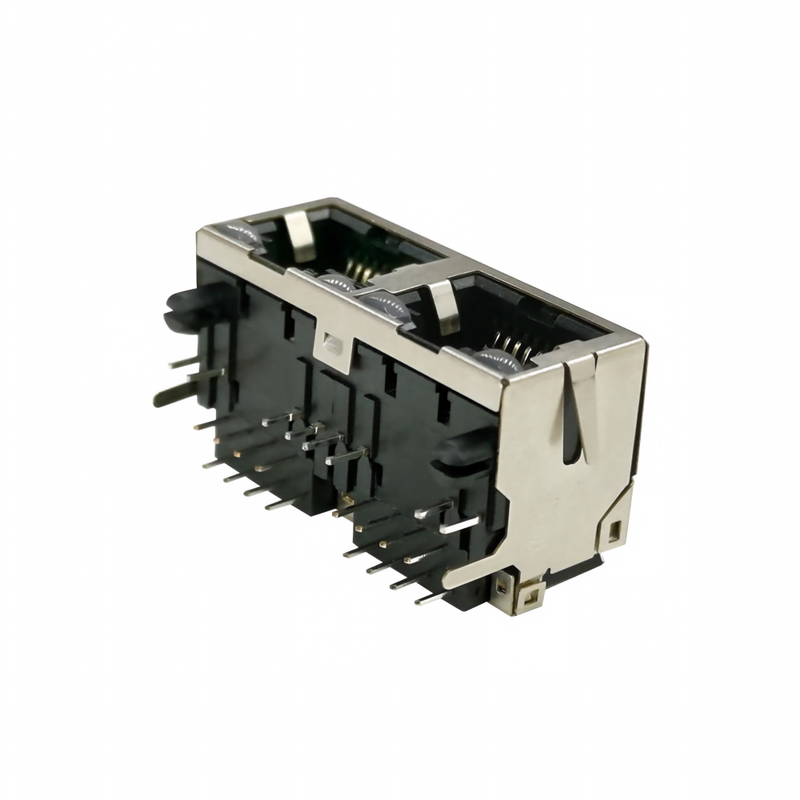

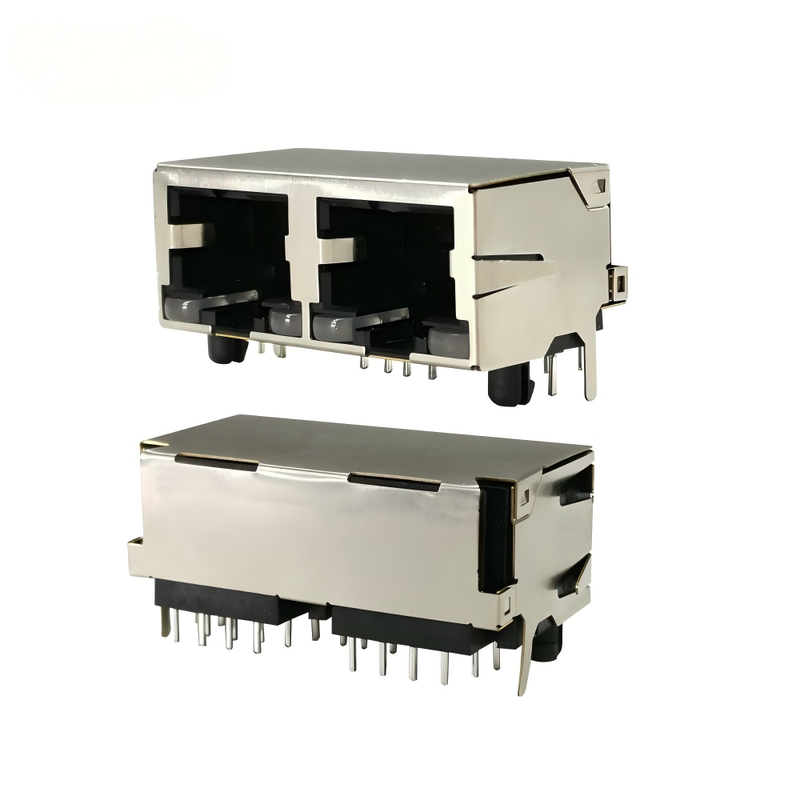

Multi-Port 1*2 2 Ports RJ 45 Modular Connector, Female 2*8P 16P Right Angle PCB Plug Modular Jack Connector RJ45 Shielded Socket

Multi-Port 12 2 Ports RJ 45 Modular Connector, Female 28P 16P Right Angle PCB Plug Modular Jack Connector RJ45 Shielded Socket

Name: Multi-Port 1*2 2 Ports RJ 45 Modular Connector, Female 2*8P 16P Right Angle PCB Plug Modular Jack Connector RJ45 Shielded Socket
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.
SKU: RJ45
Price: 4.01 USD
Availability: InStock

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

RJ45

Request A Quote

Product Details

Gender:

Female

Rated Current:

2 A

Terminal Type:

Right Angle

Insulation Color:

Black

OEM/ODM:

Allowed

Contact Material:

Phosphorous Bronze

Payment & Shipping Terms

Minimum Order Quantity

10pcs

Price

Negotiable price

Packaging Details

inner package:in reel; Outer Package: reel in Carton

Delivery Time

5-7 days

Payment Terms

L/C,T/T,Payyal

Supply Ability

1KK pcs

Multi-Port 12 2 Ports RJ 45 Modular Connector, Female 28P 16P Right Angle PCB Plug Modular Jack Connector RJ45 Shielded Socket

Get Best Price

Video

Double Layer 2-16 Ports RJ45 Modular Connector with LED Light Female Socket Metal Housing Brass Contact for PCB

Get Best Price

High Speed SFP / SFP+ / QSFP28 Cage & Pluggable Connectors

Get Best Price

QSFP SFP Cage 2X2 Port Cage with Light PIPE XFP CFP Sfp Connector Dust Cover Fiber Optic Module Shielding

Get Best Price

86 13711847246

tinaliao@xtkconnector.com

86-769-85150486

Contact Now

Product Description

Multi-Port 12 2 Ports RJ45 Modular Connector, Female 28P 16P Right Angle PCB Modular Jack, Shielded RJ45 Socket

Product Description

Item	Parameter
Model Type	1×2 (2 Ports) RJ45 Modular Jack, Right Angle PCB Mount
Contact Arrangement	2×8P (16 Positions, two independent 8P8C channels)
Mounting Style	Right Angle / 90° Through-hole PCB Soldering
Shield Structure	Full Metal Shielded Shell, multiple ground solder lugs
Supported Ethernet	10/100/1000Mbps Gigabit Ethernet (Cat5e / Cat6 compatible)
Rated Current	1.25A per contact
Rated Voltage	125V AC
Insulation Resistance	≥ 500MΩ
Dielectric Withstand Voltage	1000V AC, 60Hz, 1 Minute
Mating Lifespan	≥ 1000 insertion & extraction cycles
Operating Temperature	-40℃ ~ +85℃
Flammability Grade	UL94 V-0
Compliance	RoHS, REACH SVHC Free

This 1×2 dual-port shielded RJ45 modular jack is a right-angle PCB-mount Ethernet female connector, equipped with two independent 8P8C channels (total 16 contacts). Designed for side entry cable routing, it optimizes limited PCB space for multi-network embedded equipment.
Full metal shielding shell effectively suppresses EMI & RFI interference. Precision phosphor bronze contacts with selective gold plating guarantee stable Gigabit Ethernet transmission. Widely deployed in industrial communication, network hardware, and embedded control devices.
We support a non-magnetic integrated standard version; a magnetic integrated RJ45 jack, and an LED status indicator is optional for customized orders.

Raw Material Details

Component	Material & Plating Standard
Housing	High-temperature resistant PA46 Thermoplastic, UL94 V-0 Black
Contact Terminal	Phosphor Bronze; Nickel underplate + Selective Gold plating on mating surface (3μ” / 6μ” / 15μ” optional)
Shield Shell	Copper-Zinc Alloy, Tin Plated, anti-oxidation
Retention Peg	High-temperature plastic, positioning for PCB assembly

Application

Networking Product: NIC, Hub, SWITCH, Router, Bridge, Work,

Station: PC/SYSTEM, Printer, Server, NB, I-CABLE MODEM, XDSL APPLICATION, SET-TOP-BOX.

Customization Support

Structural modification: Adjust ground lug position, add positioning columns;
Electrical option: Built-in magnetic transformer / non-magnetic version;
Function upgrade: Red/Green LED link/activity indicator;
Contact plating thickness adjustment according to service life requirement;
OEM packaging & part number labeling.

Our advantage

1. Professional connector manufacturer, a variety of styles to choose from; we are factory direct sales, not only quality assurance but also affordable.

2. We can provide free samples for you to test, and then purchase if appropriate.

3. If the product is not what you want, please contact us directly and provide the product specifications you need.

4. Large-scale production workshop, fast delivery, immediate delivery from the spot, no need to worry about delivery.

5. One-to-one after-sales service, please feel free to contact us if you have any questions.

Custom Process

Requirement Collection → 2. Technical Evaluation & Quotation → 3. 3D Drawing Review & Confirmation → 4. Mold / Tooling & Prototype → 5. Sample Test (SI/EMI/LED) & Approval → 6. Mass Production → 7. Final QC & Shipment

FAQ

Q: Are you a trading company or factory?

A: We are a factory with 15 years of connector manufacturing experience; almost all of our products are made by ourselves.

Q: When can I get a quotation?

A: After you confirm the products you need, we will offer you a quotation.

Q: Do you accept customization?

A: Yes, we can accept customization as long as it is within our business scope, but you need to provide us with your demand quantity.
