MIC Electronic Components – 1×6 SFP+ Cage Assembly with Integrated 120-Position Press-Fit Receptacle, Outer Light Pipe & EMI Springs – 10G/25G Hot-Swappable I/O Connector for Switch / NIC / 5G PCB
Product Description
|
Parameter
|
Specification
|
|
Brand / Series
|
MIC Electronic Components – SFP+ Cage Assembly
|
|
Form Factor
|
SFP / SFP+ / SFP28 backward compatible
|
|
Port Matrix
|
1 × 6 (6 ports linear)
|
|
Positions
|
120 (20 × 6)
|
|
Pitch
|
0.8 mm (0.031 in)
|
|
Mounting
|
Through-Hole, Right Angle
|
|
Termination
|
Press-Fit Compliant Pin (Ø0.64 mm, tail 2.05 mm) / optional SMT
|
|
Contact Material
|
Phosphor bronze
|
|
Contact Plating
|
Gold flash on mating area (30 µ" optional), tin on press-fit tail
|
|
Cage Material
|
Nickel silver (copper alloy), nickel plated
|
|
Light Pipe
|
Outer type PMMA, 2 LED channels per port (Link + ACT)
|
|
EMI Feature
|
Internal + external beryllium-copper spring fingers (elastomer gasket optional)
|
|
Data Rate
|
1.25 G / 10.3125 G (SFP+) / 25.78 G (SFP28)
|
|
Differential Impedance
|
100 Ω
|
|
Current Rating
|
0.5 A / contact
|
|
Contact Resistance
|
≤ 80 mΩ
|
|
Insulation Resistance
|
≥ 1000 MΩ @ 500 V DC
|
|
Withstand Voltage
|
300 V AC
|
|
Mating Cycles
|
≥ 100 (hot-swap)
|
|
Operating Temp.
|
-55 °C to +105 °C (industrial build -40~+85 °C)
|
|
Housing Flame Rating
|
UL 94 V-0 (LCP)
|
|
Compliant
|
SFF-8431, INF-8074i, SFF-8402, RoHS 2.0, REACH
|
|
Cross Ref.
|
TE 2170305-2 / 2007250-1 / 2143294-1; Amphenol UE76-A20; Molex 74754-0620
|
|
Typical Dimensions
|
L ≈ 86.0 × W ≈ 48.6 × H ≈ 12.3 mm (ref. industry 1×6)
|
|
MOQ
|
500 pcs
|
|
Sample Lead Time
|
5–7 working days
|
|
Mass Lead Time
|
3–4 weeks
|
|
Packaging
|
Anti-static tray
|

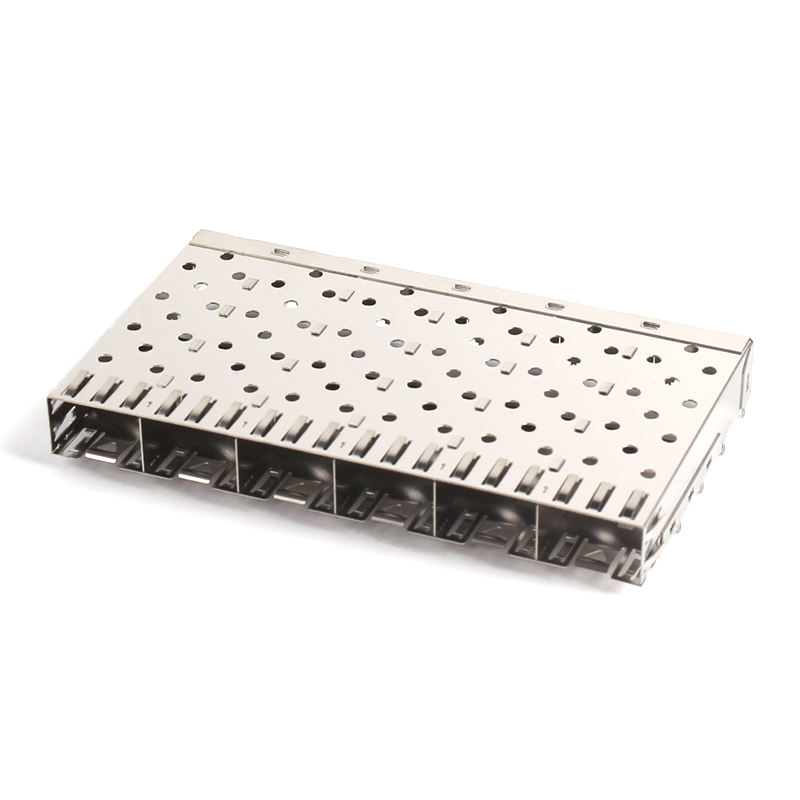

The MIC 1×6 SFP+ Cage Assembly is a ganged, hot-swappable I/O interconnect: a linear six-port nickel-silver shielding cage + 120-position right-angle press-fit receptacle + outer PMMA light pipe array, shipped as one pick-and-place unit. It accepts SFP, SFP+, and SFP28 optical transceivers, DAC and AOC cables, and mounts to the host PCB with zero soldering.
The 1×6 linear format is the industry-default uplink row for managed switches — pair eight of these on a 48-port 10G ToR switch, and you get 48 SFP+ lanes with clean, label-friendly faceplate spacing. The outer-only light pipe keeps LED status visible while preserving the metal cage wall as a continuous EMI shield (the usual weak point in inner-LP cages).
|
Dimension
|
2×3 Stacked Cage
|
MIC 1×6 Linear (This Product)
|
|
Front-panel width
|
Narrower
|
Wider (~48.6 mm) but single-row labeling
|
|
Faceplate tooling
|
Needs stacked cutouts
|
Simple rectangular slot
|
|
LED serviceability
|
Harder to align
|
Direct outer-LP alignment, no cage wall drill
|
|
EMI wall integrity
|
Often cut for inner LP
|
Solid wall, LP outside → better RF seal
|
|
Use case
|
Port-dense 1U core
|
Uplink rows, 48-port access switches, NICs
|
Quality & Reliability
-
100% continuity & press-fit insertion-force test per batch
-
Cage CMM dimension check (±0.05 mm)
-
Contact resistance & hi-pot per IEC 60512
-
Thermal cycling -55↔+105 °C, 500 cycles
-
EMI shielding verified in GTEM cell (≥60 dB @ 1–10 GHz)
-
ISO 9001 / RoHS / REACH documentation on shipment.
Cross-Reference (Drop-in Replacement)
|
Brand
|
Equivalent P/N
|
|
TE Connectivity
|
2170305-2 (no LP), 2007250-1 / 2143294-1 (with LP)
|
|
Amphenol
|
UE76-A20-xxxx (ExpressPort 1×6)
|
|
Molex
|
74754-0620 / 74754-0610
|
|
Prosper
|
SFPP016PB
|
Customization Options
|
Option
|
Choices
|
|
Light pipe
|
None / Outer only (default) / Inner+Outer / Inner only
|
|
Gold thickness
|
Flash 15µ" / 30µ" (optional)
|
|
Termination
|
Press-fit (default) / SMT tail / mixed
|
|
Cage finish
|
Ni plated (default) / Sn plated / black oxide
|
|
EMI
|
Spring finger only / + elastomer gasket / + conductive foam
|
|
Heat sink
|
None / top sink (note: some TE 1×6 not heat-sink compatible)
|
|
Port matrix
|

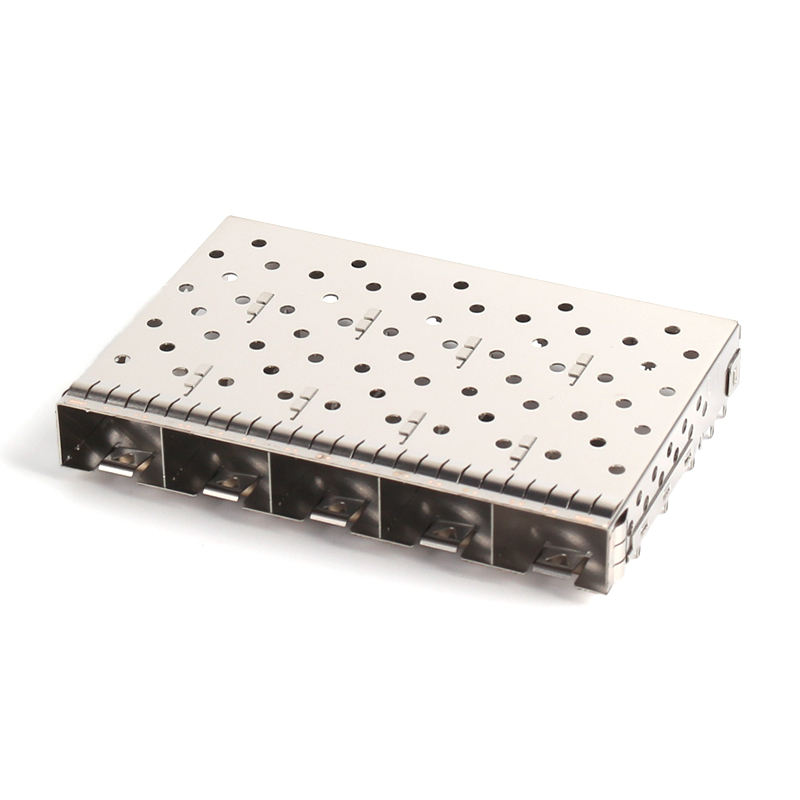

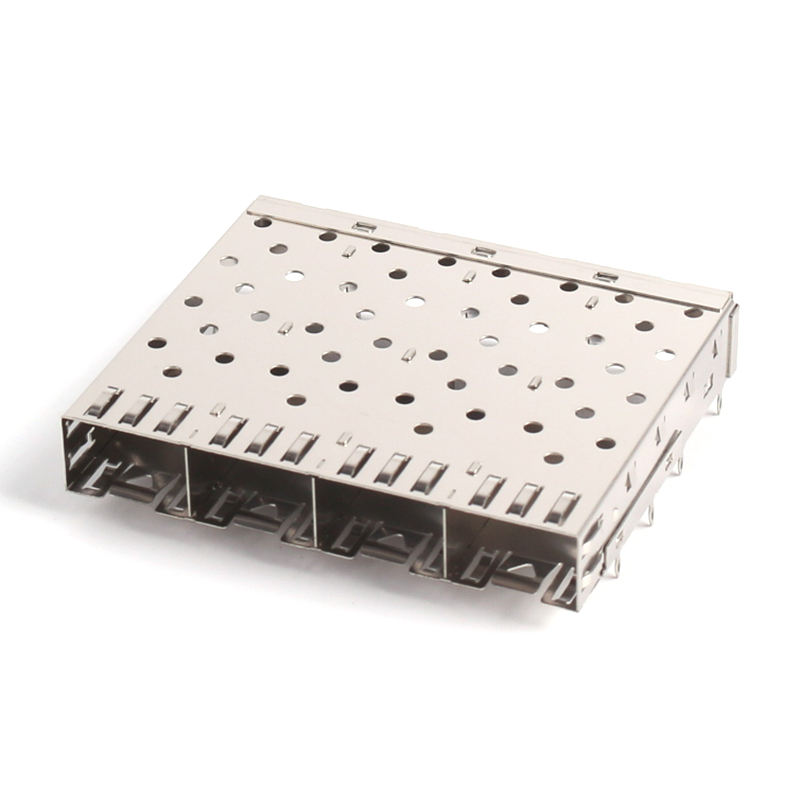

1×1 / 1×2 / 1×4 / 1×6 / 1×8
|
|
Logo
|
Laser mark on cage top (MOQ applies)
|
