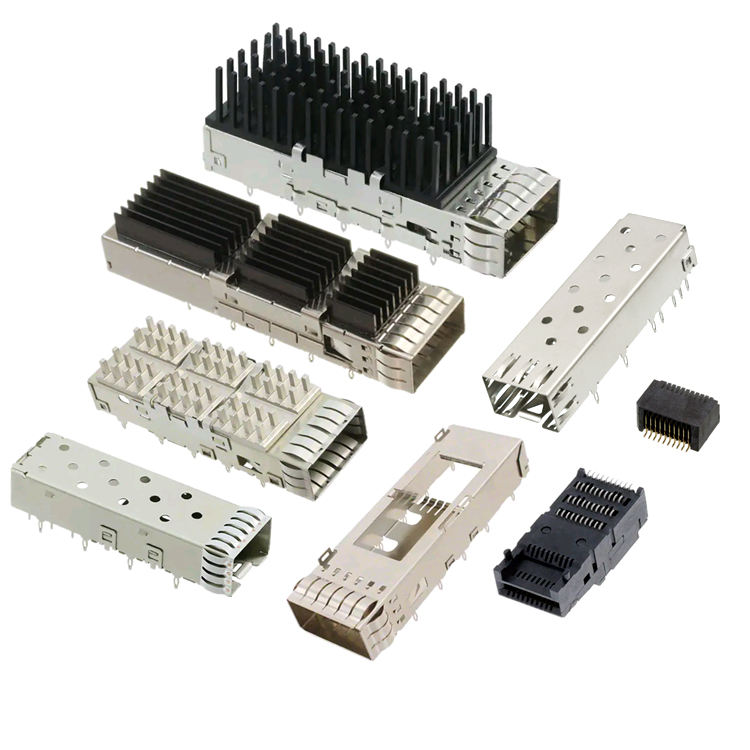

SFP / SFP+ 1×1 Cage Assembly Without Light Pipe – Metal EMI Shielded Press-Fit Connector, 20-Position Right-Angle Receptacle, Single-Port Hot-Swappable I/O for Switch / Media Converter / NIC PCB
Product Description
|
Parameter
|
Specification
|
|
Product Type
|
SFP / SFP+ 1×1 Cage Assembly with Integrated Receptacle
|
|
Form Factor
|
SFP (1.25G) / SFP+ (10.3125G) / SFP28 (25.78G) backward compatible
|
|
Port Matrix
|
1 × 1 (single port)
|
|
Positions
|
20
|
|
Pitch
|
0.8 mm (0.0315 in)
|
|
Mounting
|
Through-Hole, Right Angle
|
|
Termination
|
Press-Fit Compliant Pin (Ø0.64 mm, tail 2.05 / 3.0 mm) / optional SMT solder tail
|
|
Contact Material
|
Phosphor bronze
|
|
Contact Plating
|
Gold flash on mating area, tin on press-fit tail (30 µ" optional)
|
|
Cage Material
|
Copper alloy/nickel silver, nickel plated
|
|
Light Pipe
|
None (solid cage wall)
|
|
Heat Sink
|
Not included (heat-sink-compatible version optional)
|
|
EMI Feature
|
Internal + external beryllium-copper spring fingers
|
|
Data Rate
|
Up to 16 Gb/s (SFP+); 25G SFP28 supported by layout
|
|
Differential Impedance
|
100 Ω ±10%
|
|
Current Rating
|
0.5 A/contact @ 3.3 V
|
|
Contact Resistance
|
≤ 80 mΩ
|
|
Insulation Resistance
|
≥ 1000 MΩ @ 500 V DC
|
|
Withstand Voltage
|
300 V AC
|
|
Mating Cycles
|
≥ 100 (module hot-swap)
|
|
Insertion Force (module)
|
≤ 34 N
|
|
Extraction Force (module)
|
≤ 12.5 N
|
|
Operating Temp.
|
-55 °C to +105 °C (industrial build -40~+85 °C)
|
|
Housing Flame Rating
|
UL 94 V-0 (LCP)
|
|
Compliant
|
INF-8074i, SFF-8431, SFF-8402, RoHS 2.0, REACH
|
|
Cross Ref.
|
TE 2170039-1 / 2057159-1 / 2007198-1; Amphenol U77A1118200T; Molex 74737-0004
|
|
Typical Dimensions
|
L 48.6 × W 14.5 × H 9.4–12.1 mm
|
|
MOQ
|
500 pcs
|
|
Sample Lead Time
|
5–7 working days
|
|
Mass Lead Time
|
3–4 weeks
|
|
Packaging
|
Anti-static tray
|
Single-port SFP+ 1×1 cage without light pipe, full metal EMI shielding, press-fit 20-position receptacle, 0.8 mm pitch. Drop-in replacement for TE 2170039-1 / 2057159-1 / Amphenol U77A1118200T. Supports SFP/SFP+/SFP28 modules. Factory direct, MOQ 500 pcs, samples 5 days.
🛡️ Solid Metal Wall – Zero Light Pipe Aperture = Maximum EMI – No plastic light guide means the stamped copper-alloy / nickel-silver cage stays a continuous RF shield with no leakage gap. External + internal beryllium-copper spring fingers give ≥60 dB @ 1–10 GHz, comfortable FCC/CE Class B even at 10G/25G.
🔌 20-Position Press-Fit Receptacle, 0.8 mm Pitch – Right-angle through-hole header, phosphor-bronze contacts, gold flash on mating area, compliant press-fit tails (Ø0.64 mm, 2.05–3.0 mm tail). Solder-free PCB mount, survives standard SMT reflow + pin-press.
🎯 True Single-Port Economy – 1×1 is the lowest-cost entry into SFP I/O: one module slot, smallest front-panel cutout (≈ 48.6 × 14.5 mm), no ganging tolerance stack-up. Ideal for media converters, industrial DIN switches, 1-port NICs, diagnostic cards.
🔄 Pin-to-Pin Cross to TE / Amphenol / Molex – Land pattern matches TE 2170039-1 (SFP 4G), 2057159-1 (SFP+ 16G), 2007198-1; Amphenol U77A1118200T; Molex 74737-0004. Legacy boards swap with zero re-spin.
💰 BOM-Minimal & Field-Proven – Removing light pipe + heat sink option cuts component count and assembly steps. Same mechanicals trusted in telecom access gear for 15+ years; we add ISO 9001batch traceability and 100% continuity test.
FAQ
Q: How soon can we receive the quotation?
A: If the specification is confirmed, our quotation can be provided within 24 hours.
Q: Can you provide samples for evaluation?
A: Yes, samples can be sent to you for evaluation.
Q: How long does it take for an order to be processed and shipped?
A: When items are in stock, we usually ship them out in the next 3 to 7 business days after receiving an order.
Q: What is your trade term?
A: FOB, FCA, CFR, CIF, EXW, DDU are available. We can also help you choose the most favorable and efficient shipping method.
Q: What is the payment term?
A: ONLINE (TRADE INSURANCE), VISA, T/T, Western Union, , etc.
Q: How long is the Warranty period?
A: The product comes with a 1-year limited warranty.
Q: Can you provide OEM & ODM service?
A: Yes, our professional R&D team will help make your ideas come true.
