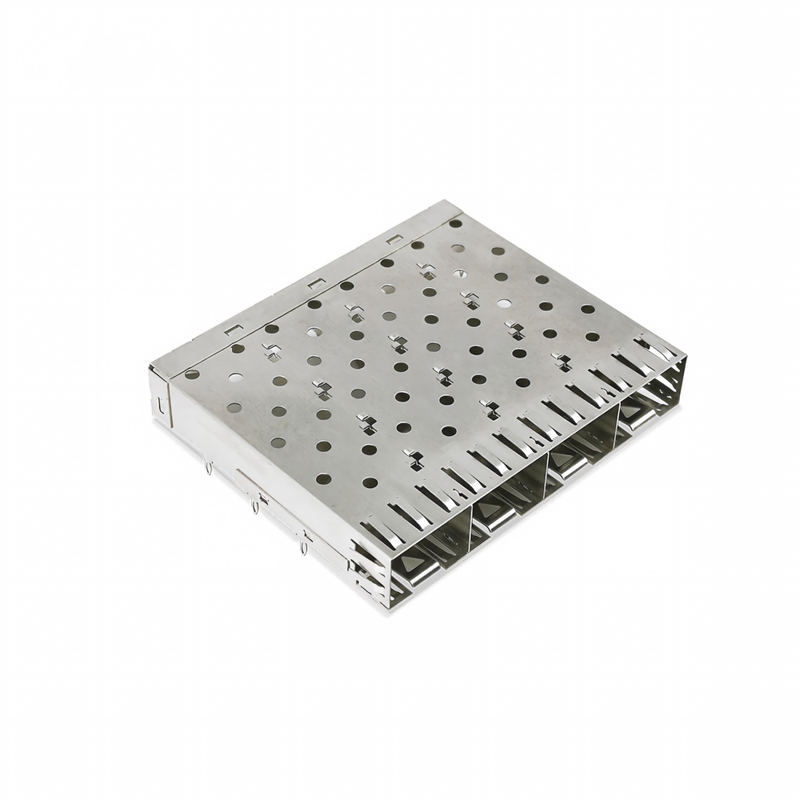

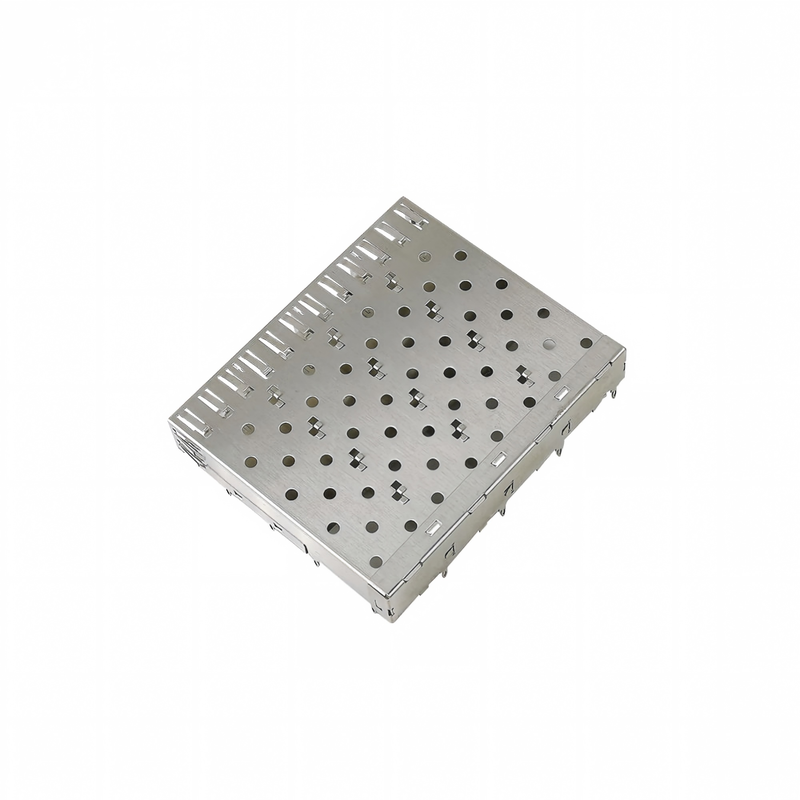

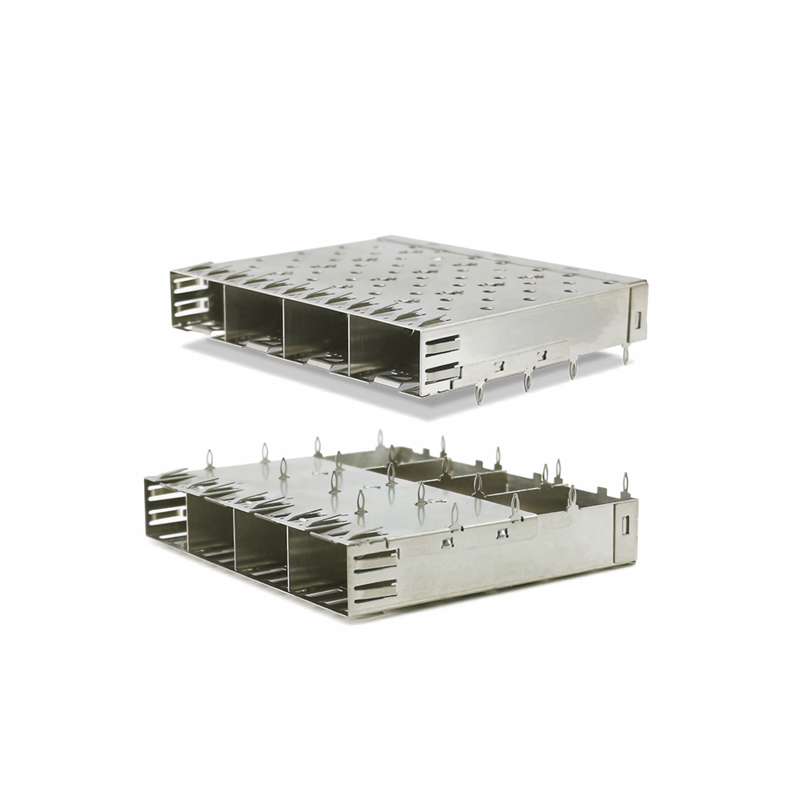

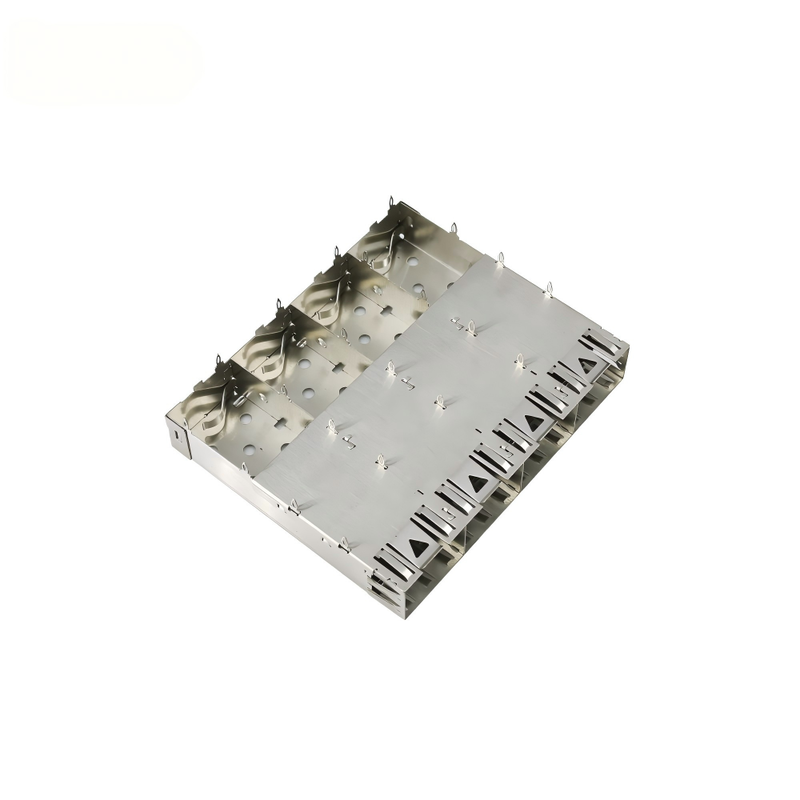

SFP Series 1×4 SFP+ Cage – Straight Solderless Press-Fit Termination, Without Light Pipe, 80-Position EMI Shielded Ganged Connector for 10G/25G Switch Uplink & NIC PCB
Product Description
|
Parameter
|
Specification
|
|
Product Type
|
SFP+ 1×4 Ganged Cage Assembly (with integrated receptacle)
|
|
Form Factor
|
SFP (1.25G) / SFP+ (10.3125G) / SFP28 (25.78G) backward compatible
|
|
Port Matrix
|
1 × 4 (linear, single row, 4 ports)
|
|
Positions
|
80 (20 × 4)
|
|
Pitch
|
0.8 mm
|
|
Mounting
|
Through-Hole, Right Angle (Straight solderless)
|
|
Termination
|
Press-Fit Compliant Pin (Ø0.64 mm, tail 2.05 mm / 3.05 mm optional)
|
|
Contact Material
|
Phosphor bronze
|
|
Contact Plating
|
Gold flash on mating area (30 µ" optional), tin on press-fit tail
|
|
Cage Material
|
Nickel silver (copper alloy), nickel plated
|
|
Light Pipe
|
None (solid cage wall)
|
|
Heat Sink
|
Not included (heat dissipation windows on top; heat-sink-compatible version optional)
|
|
EMI Feature
|
Internal + external beryllium-copper spring fingers; elastomer gasket optional
|
|
Data Rate
|
Up to 16 Gb/s (SFP+ Enhanced); 25G SFP28 supported by host layout
|
|
Differential Impedance
|
100 Ω ±10%
|
|
Current Rating
|
0.5 A/contact @ 3.3 V
|
|
Contact Resistance
|
≤ 80 mΩ
|
|
Insulation Resistance
|
≥ 1000 MΩ @ 500 V DC
|
|
Withstand Voltage
|
300 V AC
|
|
Mating Cycles
|
≥ 100 (hot-swap module)
|
|
Insertion Force (module)
|
≤ 40 N
|
|
Extraction Force (module)
|
≤ 11.5 N
|
|
Operating Temp.
|
-55 °C to +105 °C (industrial build -40~+85 °C)
|
|
Housing Flame Rating
|
UL 94 V-0 (LCP)
|
|
Compliant
|
INF-8074i, SFF-8431, SFF-8432, SFF-8402, RoHS 2.0, REACH
|
|
Cross Ref.
|
TE 2007135-1 / 2057833-1; Amphenol U77-A461M-2081; Molex 74754-0410; Bel-Fuse SS-79100-008
|
|
Typical Dimensions
|
L 57.5 × W 48.7 × H 9.75–12.1 mm
|
|
Port Pitch
|
14.25 mm (center-to-center)
|
|
MOQ
|
500 pcs
|
|
Sample Lead Time
|
5–7 working days
|
|
Mass Lead Time
|
3–4 weeks
|
|
Packaging
|
Anti-static tray (128 pcs/box typical)
|
4-port SFP+ 1×4 cage, straight solderless press-fit, no light pipe, full metal EMI shield. 80-position 0.8mm receptacle supports SFP/SFP+/SFP28. Drop-in for TE 2007135-1 / Amphenol U77-A461M-2081 / Molex 74754-0410. Factory direct, MOQ 500 pcs, samples 5 days.
The SFP Series 1×4 SFP+ Cage, Straight Solderless Press-Fit, Without Light Pipe is a ganged four-port I/O interconnect: a linear stamped nickel-silver shielding cage + 80-position right-angle press-fit receptacle, shipped as one pick-and-place unit. It accepts SFP, SFP+, and SFP28 optical transceivers, DAC and AOC cables, and mounts to the host PCB with no soldering whatever.
By deliberately omitting the light pipe, the cage side walls remain a continuous metal barrier — the strongest EMI configuration in the SFP family. This makes the 1×4 no-LP press-fit cage the default choice for switch uplink rows, quad-port NICs, 4-fiber media converters, and telecom access cards where port status is handled by software/NMS rather than a faceplate LED.
Application Scenarios
48-port access switches with 4× 10G SFP+ uplinks (e.g. enterprise L2+/L3 switches)
Quad-port 10G/25G server NICs and storage HBAs
4-fiber media converters (4× SFP+ to backplane)
5G DU/CU fronthaul transport cards (4× 25G SFP28)
Rackmount firewalls, IPS/IDS with 4-port fiber bypass
Industrial DIN-rail switches (4 uplink slots, no faceplate LED needed)
Test & measurement, protocol analyzers
Drop-in Replacement
|
Brand
|
Equivalent P/N
|
Note
|
|
TE Connectivity
|
2007135-1 / 2057833-1
|
1×4 SFP+ cage, press-fit, no LP, EMI gasket
|
|
Amphenol ICC
|
U77-A461M-2081
|
U77 series, 1×4, press-fit, no LP
|
|
Molex
|
74754-0410
|
1×4 SFP+ cage, 3.05 mm press-fit tail
|
|
Bel-Fuse Stewart
|
SS-79100-008
|
1×4 SFP+ cage, EMI gasket, press-fit
|
|
Phoenix Contact
|
1334222
|
FOC-CAGE SFP/SFP+ 1×4 PI
|
