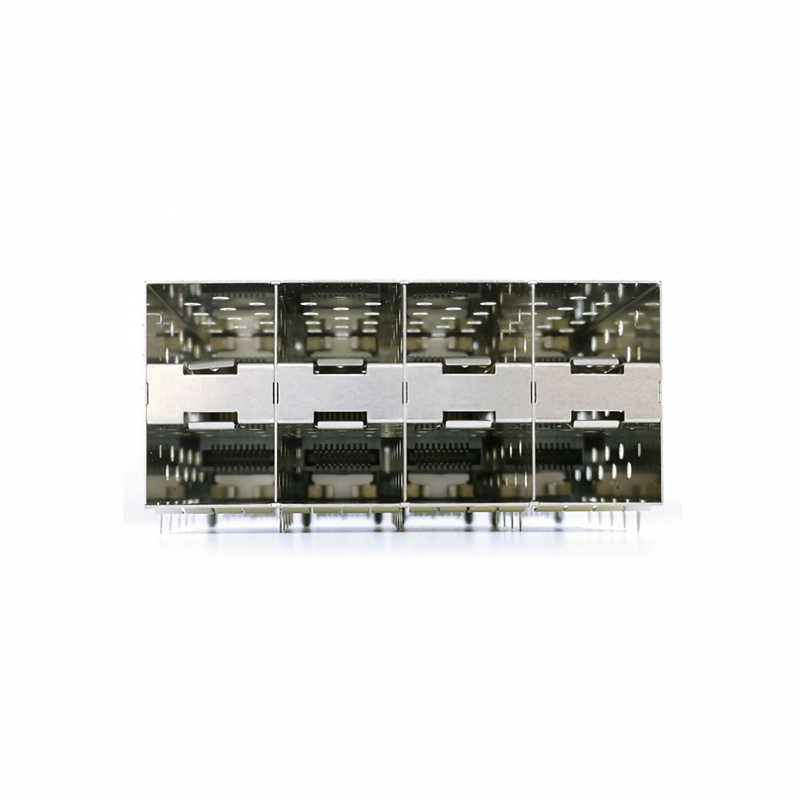

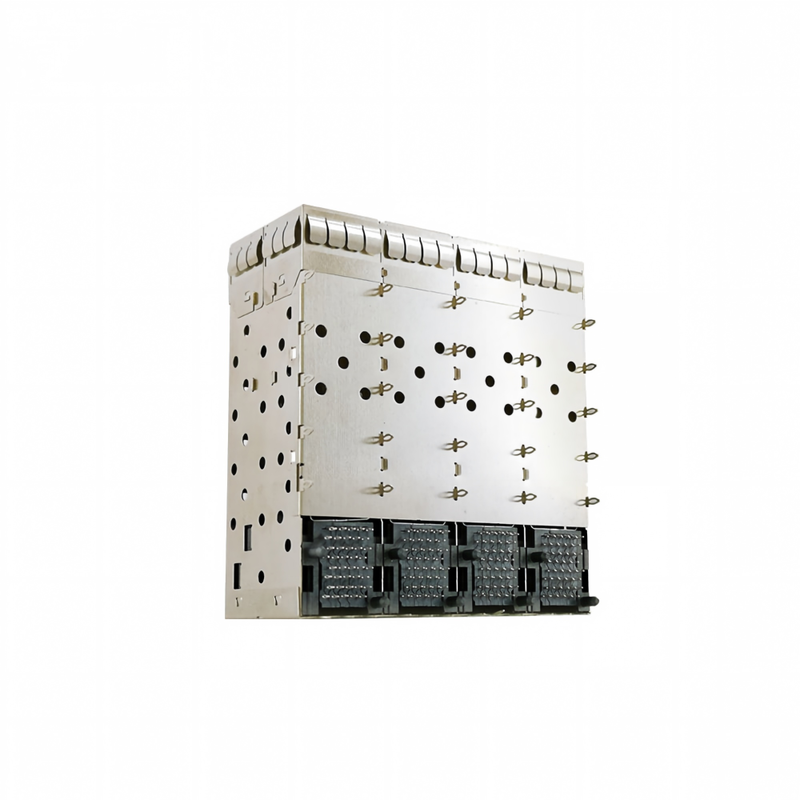

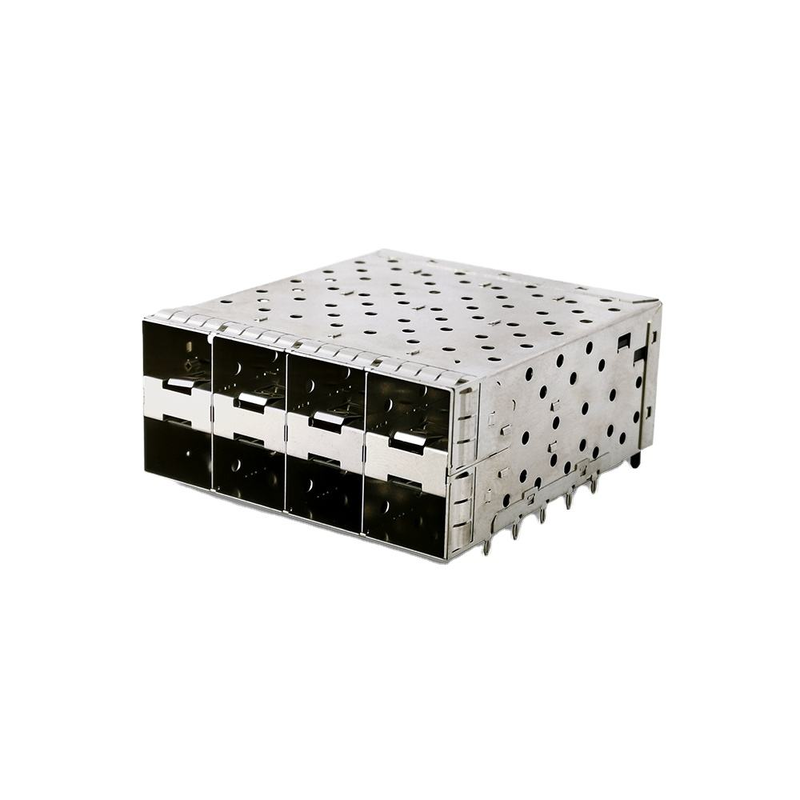

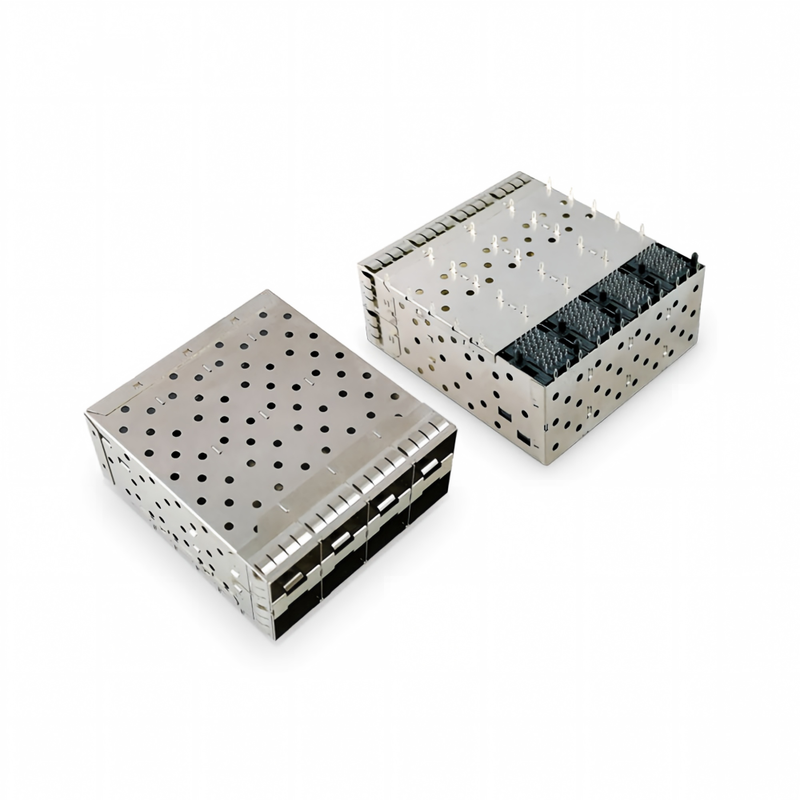

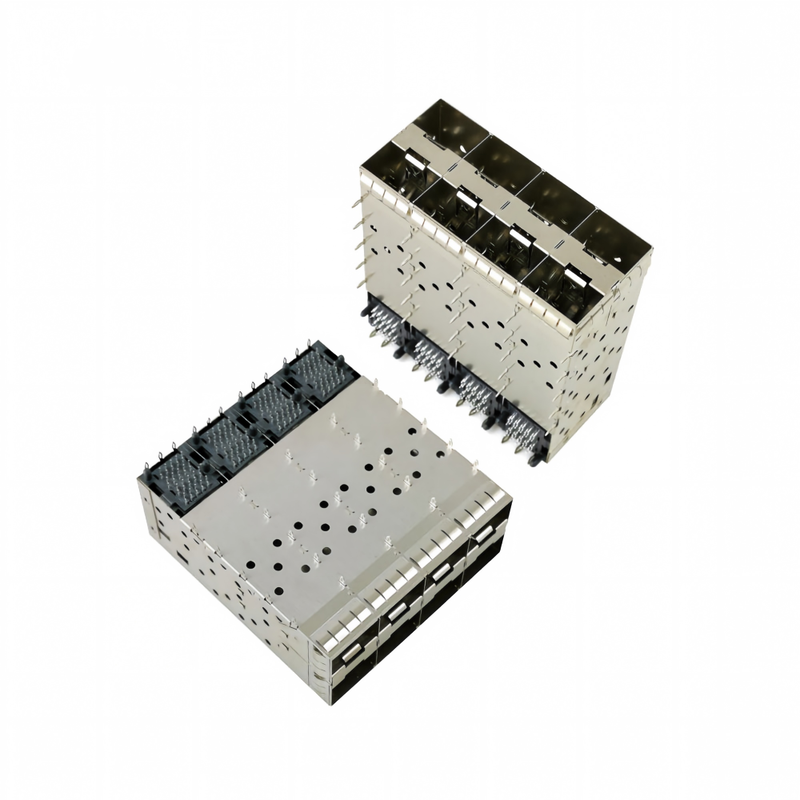

8-Port SFP+ 2×4 Cage Assembly, 160-Position Press-Fit, Without Light Pipe – Stacked Metal EMI Shielded Ganged Connector for 10G/25G Switch Line Card & NIC PCB
Product Description
|
Parameter
|
Specification
|
|
Product Type
|
SFP+ 2×4 Stacked Cage Assembly with Integrated Receptacle
|
|
Form Factor
|
SFP (1.25G) / SFP+ (10.3125G) / SFP28 (25.78G) backward compatible
|
|
Port Matrix
|
2 × 4 (stacked, 8 ports total)
|
|
Positions
|
160 (20 × 8)
|
|
Pitch
|
0.8 mm (0.032 in)
|
|
Mounting
|
Through-Hole, Right Angle
|
|
Termination
|
Press-Fit Compliant Pin (Ø0.64 mm; tail 3.0 mm / 2.07 mm optional)
|
|
Contact Material
|
Phosphor bronze/copper alloy
|
|
Contact Plating
|
Gold flash on mating area (0.76 µm / 30 µ" optional), tin tail
|
|
Cage Material
|
Nickel silver (copper alloy), nickel plated
|
|
Light Pipe
|
None (solid cage wall)
|
|
Heat Sink
|
Not included (top heat windows; heat-sink-compatible variant optional)
|
|
EMI Feature
|
Internal + external beryllium-copper spring fingers; elastomer gasket optional
|
|
Data Rate
|
16 Gb/s (SFP+ Enhanced); 25G SFP28 supported by host layout
|
|
Differential Impedance
|
100 Ω ±10%
|
|
Current Rating
|
0.5 A/contact @ 3.3 V
|
|
Contact Resistance
|
≤ 80 mΩ
|
|
Insulation Resistance
|
≥ 1000 MΩ @ 500 V DC
|
|
Withstand Voltage
|
300 V AC
|
|
Mating Cycles
|
≥ 100 (hot-swap module)
|
|
Operating Temp.
|
-55 °C to +105 °C (industrial build -40~+85 °C)
|
|
Housing Flame Rating
|
UL 94 V-0 (LCP)
|
|
Compliant
|
INF-8074i, SFF-8431, SFF-8432, SFF-8402, RoHS 2.0, REACH
|
|
Cross Ref.
|
TE 1-2007394-8 / 2007394-5 / 2170286-1; Amphenol UE863G442000361; Molex 0761020001 / 1700714001; Vitalconn S2N3D23000BA4
|
|
Typical Dimensions
|
L ≈ 57.4 × W ≈ 64.3 × H ≈ 25.6 mm (ref. TE 2007394-5)
|
|
Port Pitch (V/H)
|
14.25 mm horizontal / 14.90 mm vertical (typ.)
|
|
Recommended PCB Thickness
|
1.5 mm (0.059 in) standard / 2.36 mm optional (Molex-style)
|
|
MOQ
|
500 pcs
|
|
Sample Lead Time
|
5–7 working days
|
|
Mass Lead Time
|
3–4 weeks
|
|
Packaging
|
Anti-static tray (84 pcs/box per TE equivalent)
|
SFP+ 2×4 8-port cage, 160-pin press-fit receptacle, 0.8 mm pitch, no light pipe, full metal EMI shield. Drop-in replacement for TE 1-2007394-8, Amphenol UE863G442000361, Molex 0761020001. Supports SFP/SFP+/SFP28. Factory direct, MOQ 500 pcs, samples in 5 days.
|
Attribute
|
1×6 Linear Cage
|
2×2 Stacked Cage
|
This: 2×4 Stacked No-LP Press-Fit
|
|
Port count
|
6
|
4
|
8
|
|
Front-panel width
|
~86 mm
|
~57 mm
|
~57 mm
|
|
Vertical Z-height
|
Low
|
Mid (~12 mm)
|
Higher (~25.6 mm) – 8 lanes stacked
|
|
Light pipe
|
Outer only
|
Often inner-cut
|
None → solid EMI wall
|
|
Soldering
|
Press-fit
|
Press-fit
|
Press-fit, 0 solder
|
|
Sweet spot
|
6-uplink row
|
4-port niche
|
8-uplink row / 32-port line card (4×2×4)
|
Application
1, Networking equipment
2, Router/Switch
3, Data/Communications
4, High-end servers
5, Networking
6, Telecommunications
7,Switches
8, Telecommunications hardware
9, Fibre Channel and Gigabit Ethernet
10, Servers
Cross-Reference
|
Brand
|
Equivalent P/N
|
Note
|
|
TE Connectivity
|
1-2007394-8 / 2007394-5 / 2170286-1
|
2×4, 160pos, press-fit, no LP, EMI spring
|
|
Amphenol ICC
|
UE863G442000361
|
UltraPort SFP+ 2×4 160pos press-fit
|
|
Molex
|
0761020001 (obs) / 1700714001
|
zSFP+ 2×4 160pos, elastomer gasket opt
|
|
Vitalconn
|
S2N3D23000BA4
|
2×4 press-fit, Ni-Ag cage, no LP
|
Send us your legacy P/N or Gerber/STEP → we return a confirmed cross-draw within 24 h.
Customization Options
|
Option
|
Choices
|
|
Light pipe
|
None (default) / Outer only / Inner+Outer
|
|
Gold thickness
|
Flash 15µ" / 0.76 µm (30µ") default-equivalent / 50µ"
|
|
Press-fit tail length
|
3.0 mm (TE-style) / 2.07 mm (Molex-style) / custom
|
|
Termination
|
Press-fit (default) / SMT solder tail/hybrid
|
|
Cage finish
|
Ni plated (default) / Sn plated / black oxide
|
|
EMI
|
Spring finger only / + elastomer gasket / + conductive foam
|
|
Heat management
|
Top heat windows (default) / + top heat sink clip (changes height)
|
|
Mounting
|
Single-side (default) / Belly-to-belly dual-side
|
|
Port matrix
|
1×1 / 1×4 / 2×2 / 2×4 / 2×6
|
|
Logo
|
Laser mark on cage top (MOQ applies)
|
Why Choose US
1, 16 years of Centronic Connector production experience
2, R&D engineers with over twenty years of working experience
3, Thousands of molds for your choice
4, UL Certified, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7, With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9, Customer’s Logo can be added to the product and package
10, Plastic injection workshop, Stamping workshop, Assembly production lines. we can control quality, costs, and delivery time better than our competitors.
11, Variety of payment methods
FAQ
Q1: Can you provide a sample for testing?
A: Yes, we are pleased to supply samples for your test and quality check. Free samples are also acceptable.
Q2: How about the MOQ?
A: NO MOQ; 1 pc is OK. Small orders are welcomed.
Q3: What’s the lead time?
A: Samples:1-3 days. Mass batch:5-15 days. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
Q4: Can you make customized products?
A: Yes, we can develop a new mold if you need if you can provide us with samples or drawings and specifications.
Q5: What kind of payment do you accept?
A: VISA, T/T, Western Union, , etc.
