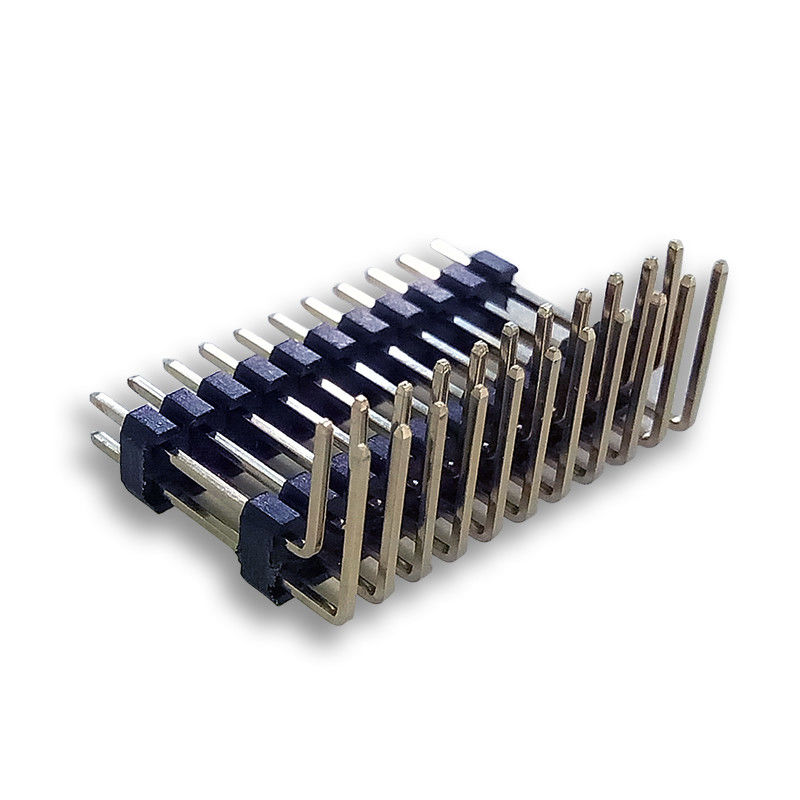

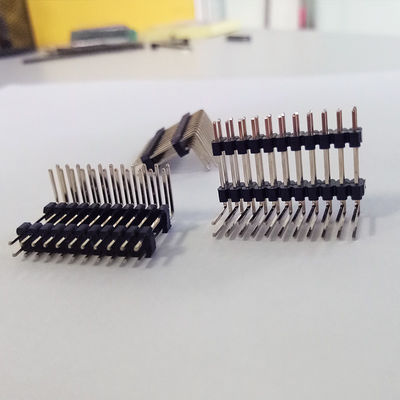

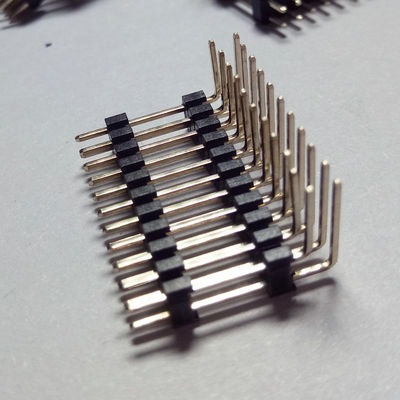

2.0mm Pitch Circuit Board Pin Connectors

2.0mm Pitch Circuit Board Pin Connectors
2.0mm Pitch Circuit Board Pin Connectors 2.0mm Pitch Circuit Board Pin Connectors 2.0mm Pitch Circuit Board Pin Connectors

Large Image :  2.0mm Pitch Circuit Board Pin Connectors

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Pin header
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

2.0mm Pitch Circuit Board Pin Connectors

Description
Rated Current: 1.5A Operate Temperature: -40℃ To +105℃
Contact Resistance: 20m Ohms MAX Insulation Resistance: 1000m Ohms Min
Housing: Polyester(UL94V-0) Lead Time: 7-10 Working Days
High Light:

2.0mm Circuit Board Pin Connectors

,

UL94V-0 Circuit Board Pin Connectors

,

2.0mm pin header 90 degree

2.0mm pitch Circuit Board Pin Connectors Double Plastic





Pin Headers provide design flexibility, production efficiency while decreasing needed equipment assets.with Horizontal, right-angle and vertical about orientation & single and dual Rows with range of 0.8mm to 3.96mm pitch.



Specifications



Pitch 2.0mm
Mounting Type SMT
No. Of Positions 2-50p
Rated current 1.5A AC
Rated voltage 50V AC/DC
Contact Resistance 20m ohms MAX
Insulation Resistance 1000m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -40℃ to +105℃
Withstanding Voltage 500V/1min AC
Housing Polyester(UL94V-0)
Contact Brass
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days



2.0mm Pitch Circuit Board Pin Connectors 0



What's the Pin Header



1. Pin header is called universal connector. Based on different designs for PCB, they choose different pitch connectors to meet.

2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm pitch pin header are featured products in our company. If you need special pin header that standard pitch couldn't satisfy, e-mail or call our sales team.

3. Generally, pin headers with suited female headers are used to finish created modules in electronic industry.

4. Regarding pin header electrical and mechanical properties, the same pitch has the same function, which we have shown clearly in our datasheet.

5. Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape, which is more robust, with a better joint and longer life, making it more expensive though. Still more and more automotive and medical industry customers choose machine pin to improve connection stability.



Packaging Details


Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.



Product Application


Male pin header widely used in different industry such as air-condition, multimedia, UAV and so on. as below image is application scenarios. image is a limitation, for more detail you can directly contact our sales team.
