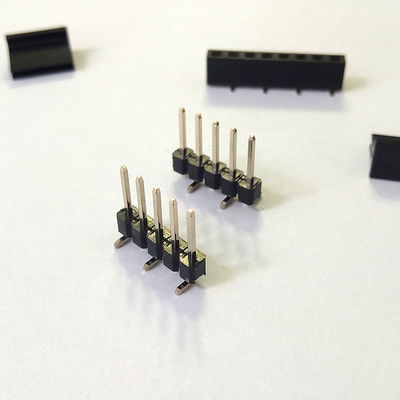

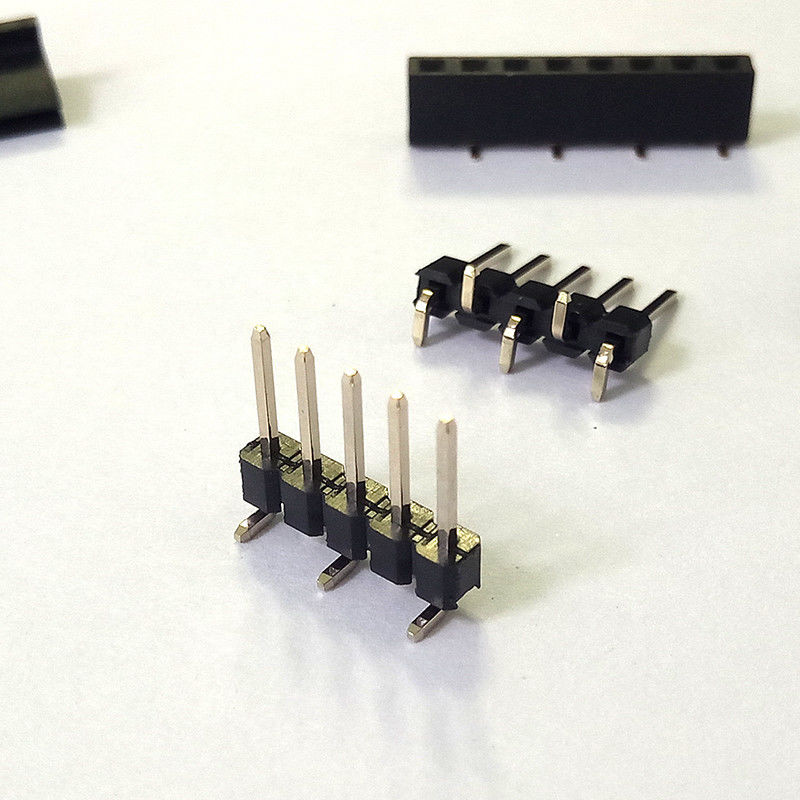

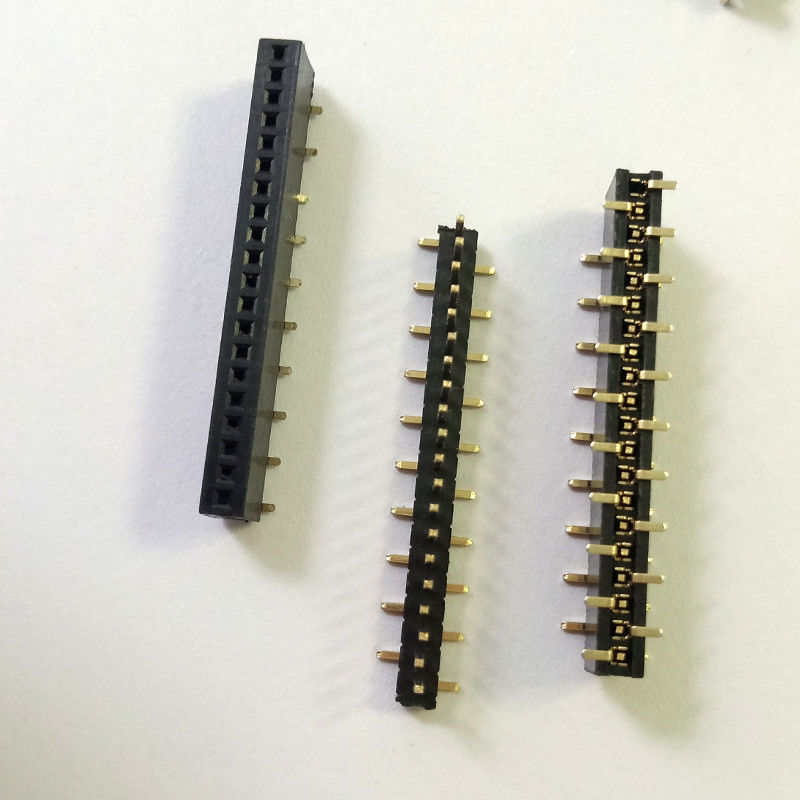

SMD Male Pin Header Connectors

SMD Male Pin Header Connectors
SMD Male Pin Header Connectors SMD Male Pin Header Connectors SMD Male Pin Header Connectors

Large Image :  SMD Male Pin Header Connectors

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Pin header connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

SMD Male Pin Header Connectors

Description
Service: OEM/ODM Current Rating: 1.5A
Operation Temperature:: -40℃ To +105℃ Insulator Material: PA6T/PA9T/PBT+30% GF(UL94V-0)
ContacContact Resistancet: 20mΩ Max Contact Plating: Au Or Sn Over Ni
High Light:

SMD male pin header connectors

,

2.54mm male pin header connectors

,

SMD 40 pin male header

Reverse Feet SMD Male Pin Header Connectors





Specification



Connector Type Header
Contact Type Male
Pitch 2.54mm
Pins available 2Pins to 40Pins
Connector Name PCB Connector
Mounting Type Through Hole
Number of Row 1
Termination Solder
Contact Finish Gold Over Nickel
Operation Temperature -40℃ to +105℃
Insulation Material PA6T UL94V-0
Current Rating 1.5A
Withstand Voltage 500V AC/DC
Insulation Color Black
Contact Material Copper Alloy





Material:

1. Housing Material: Glass Filled Polyester(UL94V-0),NYLON, LCP
2. Contact Material: Phosphor Bronze
3. Plating: Contact Area-Selectine Gold Plating.

4. Cap: Glass Filled Polyester(UL94V-0),NYLON, LCP



Environmental:

1. Storage Temperature -40°C~105°C Relative Humidity <80%.
2. Opration Temperature -40°C~+105°C,
Lead-free process,compliant RoHS



Quality :

Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .

Manufactured under strict controls RoHS compliance
ISO 9001:2008 OEM for PULSE
UL Certification Active Environmental policy
Reach Cetitifaction

Every module tested 3times (not just batch tested)


Design &Technical strength

We have many more than 20years experience in connector industry engineer can support your new

project.Design a new tooling time : 30-45 workdays



FAQ



Q: Can I get some samples?

A: Yes,some samples are free.



Q: Which payment can be accepted?

A: 1. The payment terms can be flexiable depend on the quantity and products.

2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.



Q: Are you manufacture of trading company?

A: We are a manufacture in Dongguan, China.



Q: What’s the delivery time?

A: It usually takes about 3~7 working days to produce the products.



Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.
